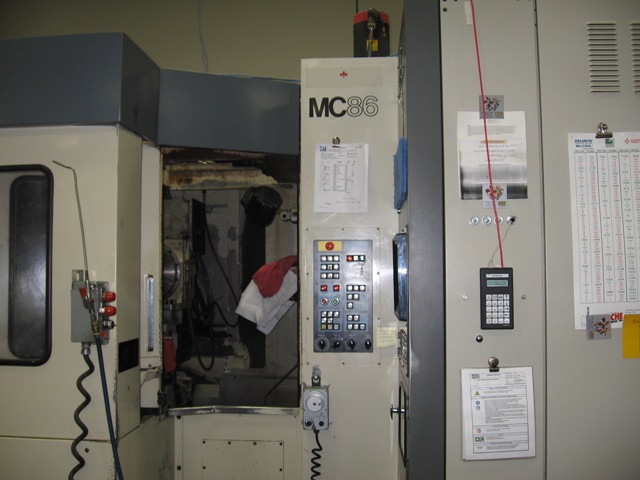

MAKINO MC86-A60, 5 AXIS, 50 TAPER, 60 ATC, 4,000 RPM, 25 HP, FANUC 11M, 24.8 X 24.8 TABLE AREA, 1985

GENERAL SPECIFICATIONS:
MODEL MC86-A60
AGE APPROXIMATELY 1985
TABLE AREA 24.8" X 24.8"
MAX WEIGHT ON TABLE 2,200 LBS
TRAVELS (X) 31.8"
(Y) 25"
(Z) 25"
SPINDLE NOSE TO TABLE C/L 7.87" MIN / 32.87" MAX
SPINDLE C/L TO TABLE 3.93" MIN / 28.93" MAX
RAPIDS (ALL LINEAR AXIS) 590 IPM
SPINDLE TAPER NO. 50
SPINDLE SPEEDS 10 TO 4,000 RPM
SPINDLE HEADSTOCK 2 GEARS
SPINDLE MOTOR 20 / 25 HP (AC)

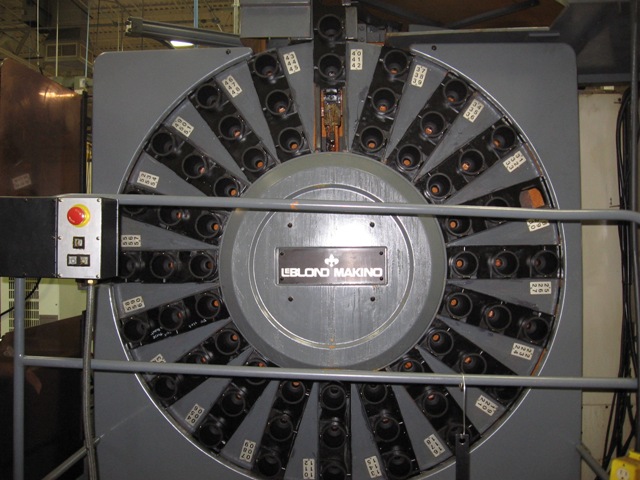

AUTO TOOL CHANGER 60 TOOLS
MAX TOOL DIAMETER 11.8"
MAX TOOL LENGTH 17.7"
MAX TOOL WEIGHT 50.6 LBS

EQUIPPED WITH:
5 AXIS SIMULTANEOUS CONTOURING CAPABILITY

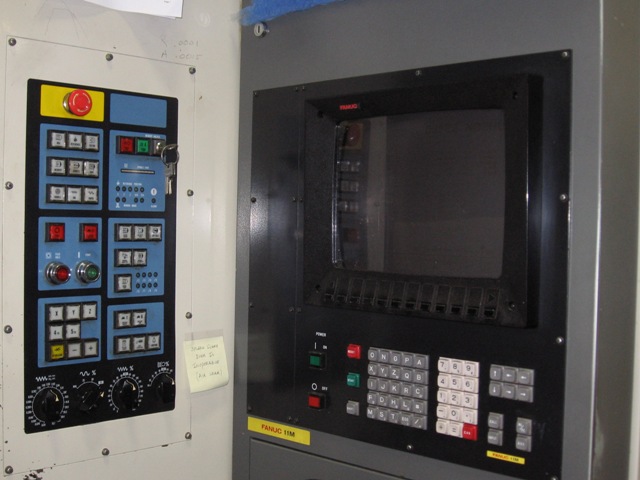

FANUC 11M CONTROL
FANUC DIGITAL AC SERVO DRIVES AND MOTOR ON ALL AXIS

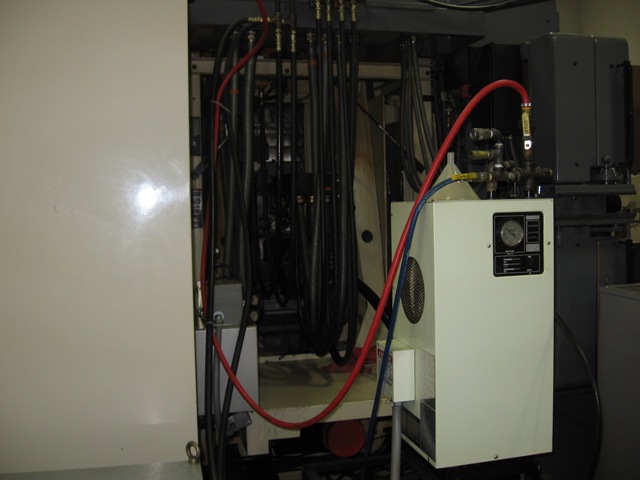

SPINDLE OIL CHILLER
FLOOD COOLANT SYSTEM
COOLANT THRU THE SPINDLE

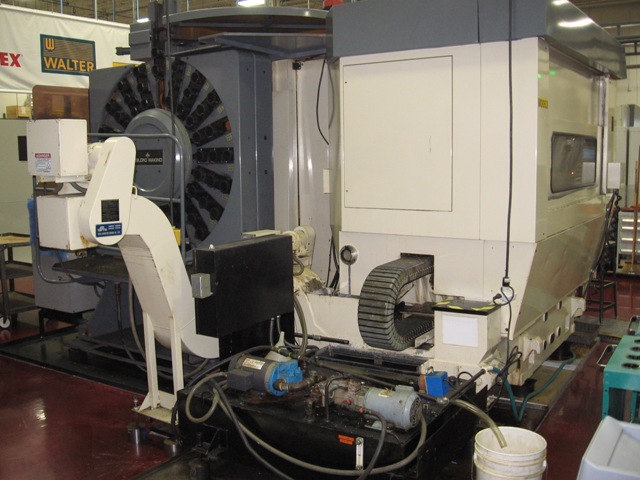

CHIP CONVEYOR
FULL ENCLOSURE

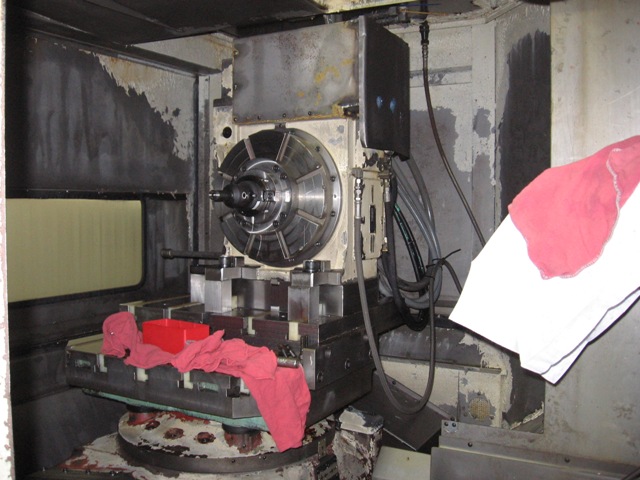

TSUDAKOMA ROTARY TABLE SYSTEM FULL 4TH AND 5TH AXIS

NOTE: SINGLE PALLET MACHINE
