Specifications
Equipped With
GENERAL SPECIFICATIONS:
MODEL MC86-A120
AGE APPROXIMATELY 1990
TABLE AREA 24.8" X 24.8"
MAX WEIGHT ON TABLE 2,200 LBS
TRAVELS (X) 31.8"
(Y) 25"
(Z) 25"
SPINDLE NOSE TO TABLE C/L 7.87" MIN / 32.87" MAX
SPINDLE C/L TO TABLE 3.93" MIN / 28.93" MAX
RAPID TRAVERSE RATE 590 IPM
CUTTING FEEDRATE 157.48 IPM
SPINDLE TAPER NO. 50
SPINDLE SPEEDS 10 TO 4,000 RPM
SPINDLE HEADSTOCK 2 GEARS
SPINDLE MOTOR 20 / 25 HP (AC)

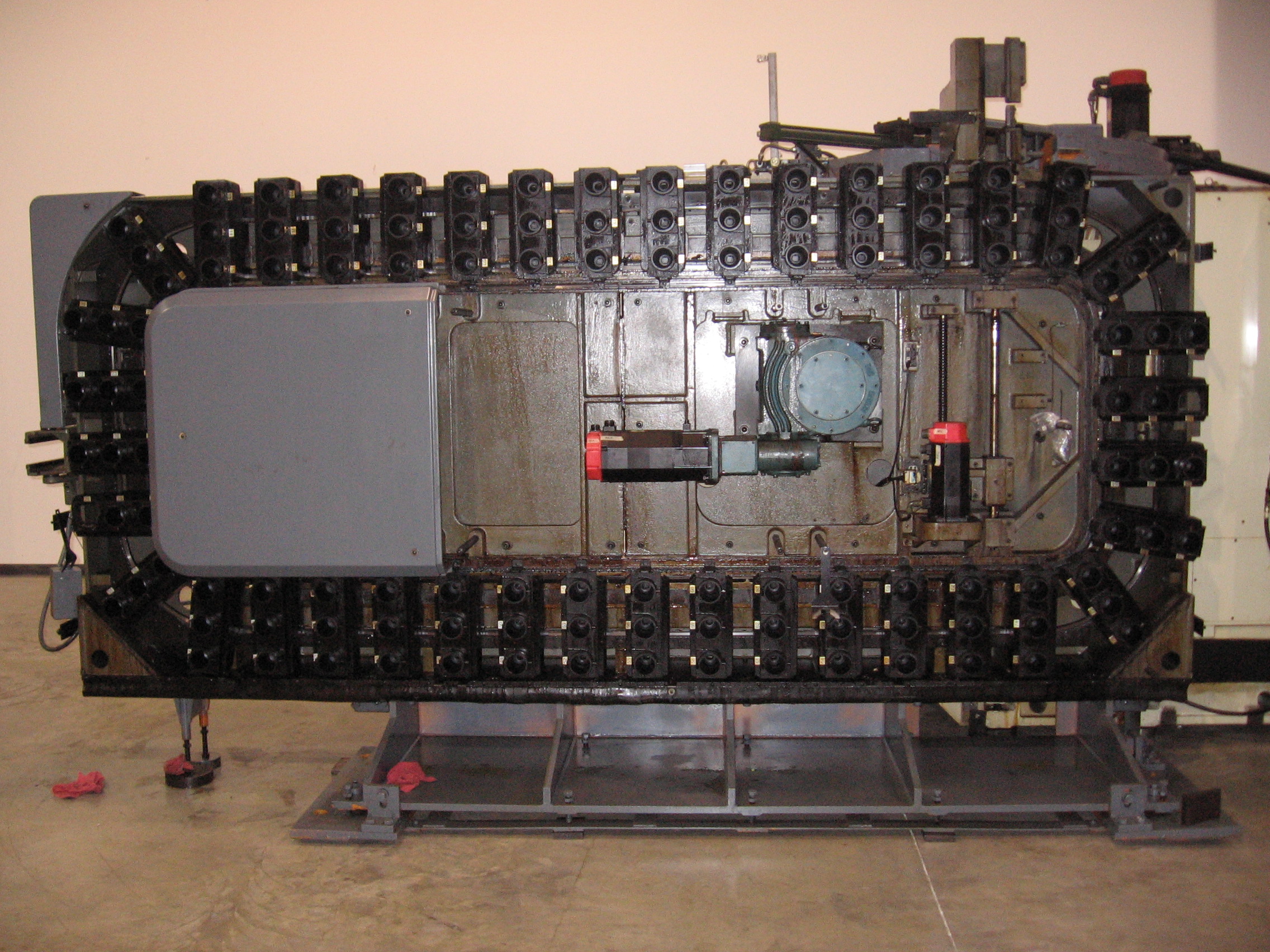

AUTO TOOL CHANGER 120 TOOLS
MAX TOOL DIAMETER 11.8"
MAX TOOL LENGTH 17.7"
MAX TOOL WEIGHT 50.6 LBS
FOOT PRINT (APPROXIMATELY) 21' X 13'
APPROXIMATE WEIGHT 30,000 LBS.
EQUIPPED WITH:
5 AXIS SIMULTANEOUS CONTOURING CAPABILITY

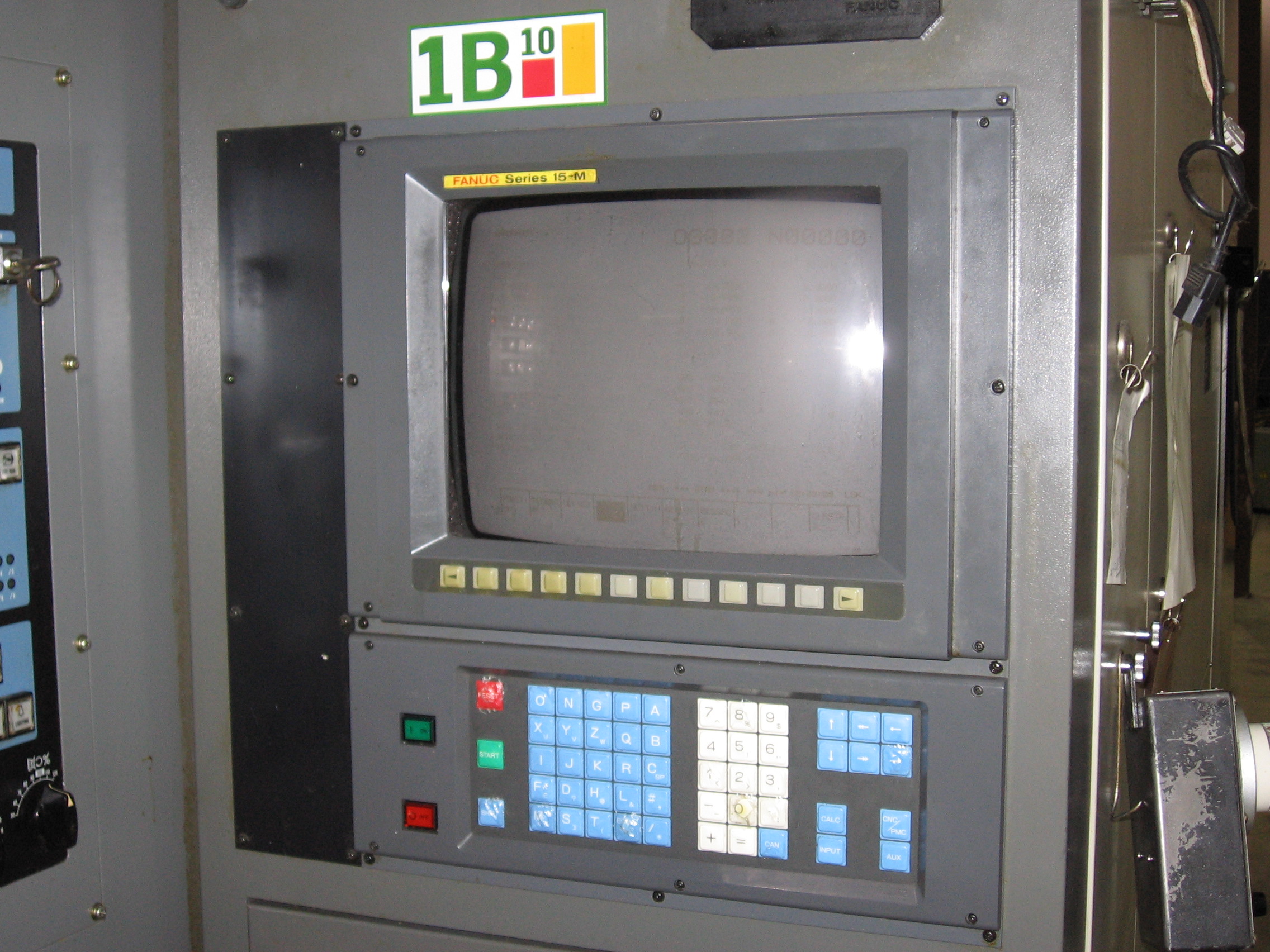

FANUC 15M CONTROL
FANUC DIGITAL AC SERVO DRIVES AND MOTOR ON ALL AXIS
SPINDLE OIL CHILLER
FLOOD COOLANT SYSTEM
COOLANT THRU THE SPINDLE
CHIP CONVEYOR
FULL ENCLOSURE

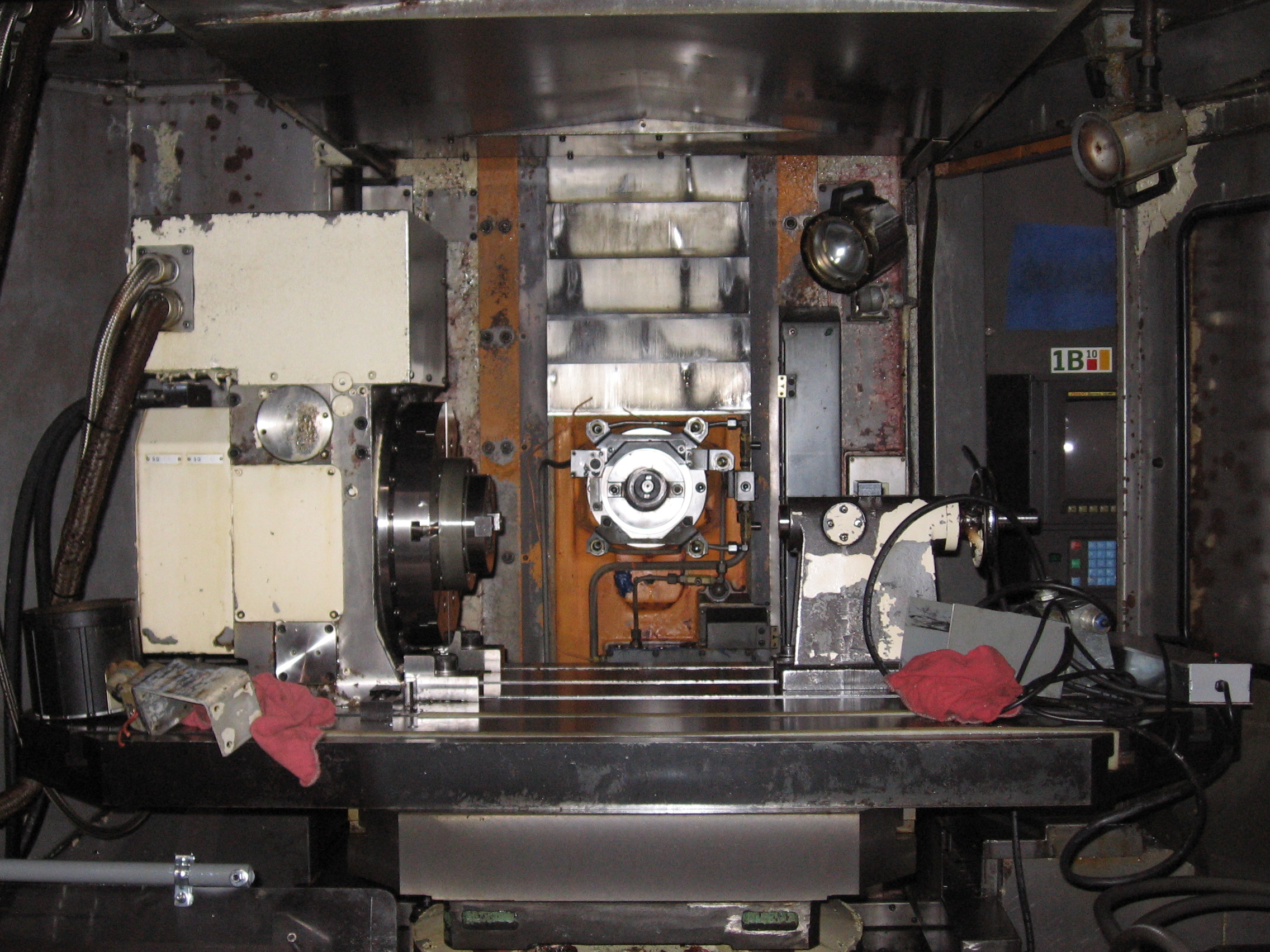

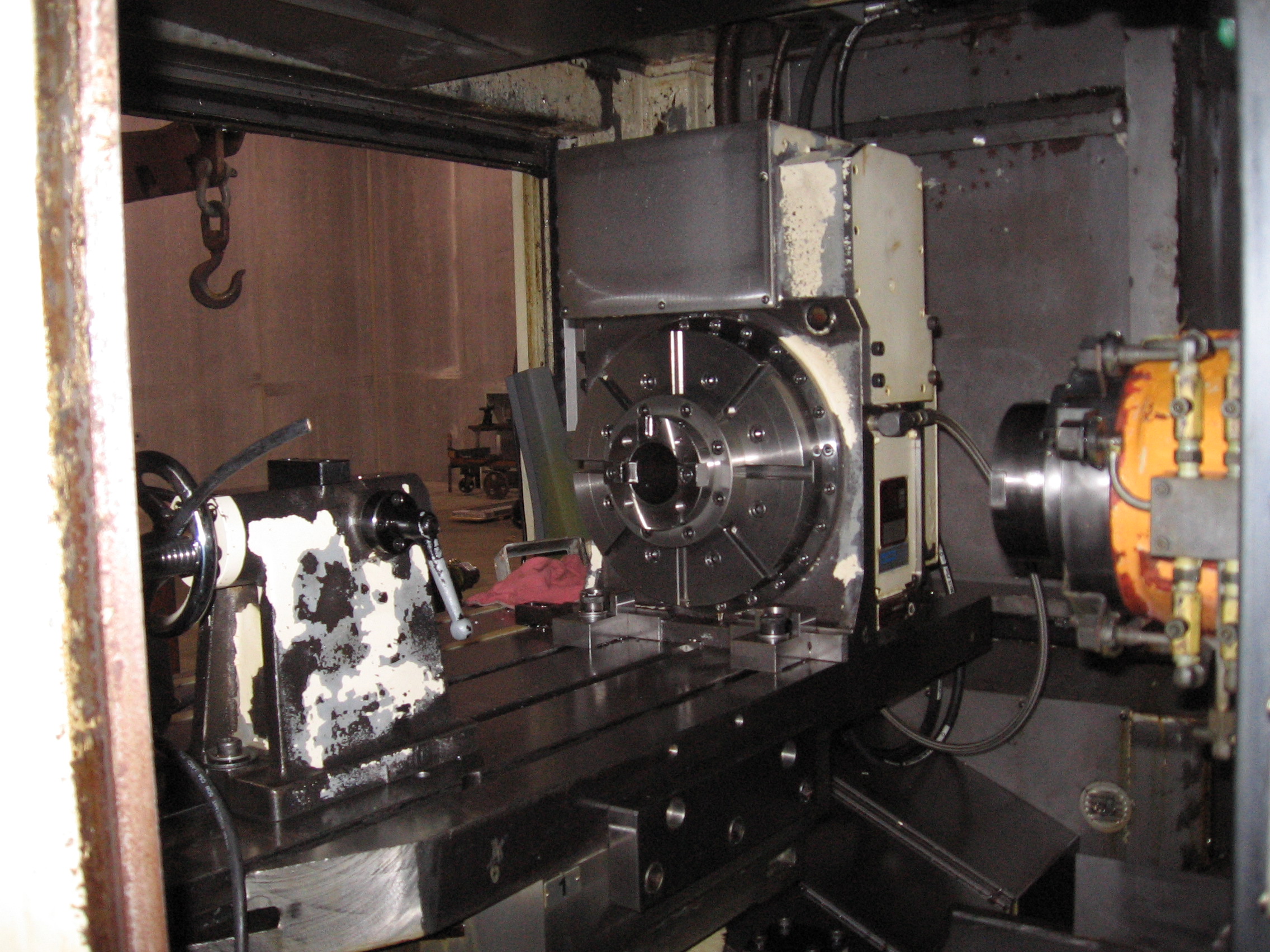

TSUDAKOMA ROTARY TABLE SYSTEM FULL 4TH AND 5TH AXIS
NOTE: SINGLE PALLET MACHINE
