Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER......................... MAKINO
MODEL................................ C-40
SERIAL............................... E43-3098
NEW (APPROX.)........................ 1968
SWING................................ 10"
DISTANCE BETWEEN CENTERS............. 27"
DIST. BETWEEN TAILSOCK & WORKHEAD.... 14"
TABLE SIZE........................... 5-5/16" x 37-1/2"
(X) TRAVEL........................... 16"
(Y) TRAVEL........................... 10"
VERTICAL MOVEMENT OF WHEELHEAD....... 10"
SWIVELLING ANGLE (TABLE)............. 180 DEGREES

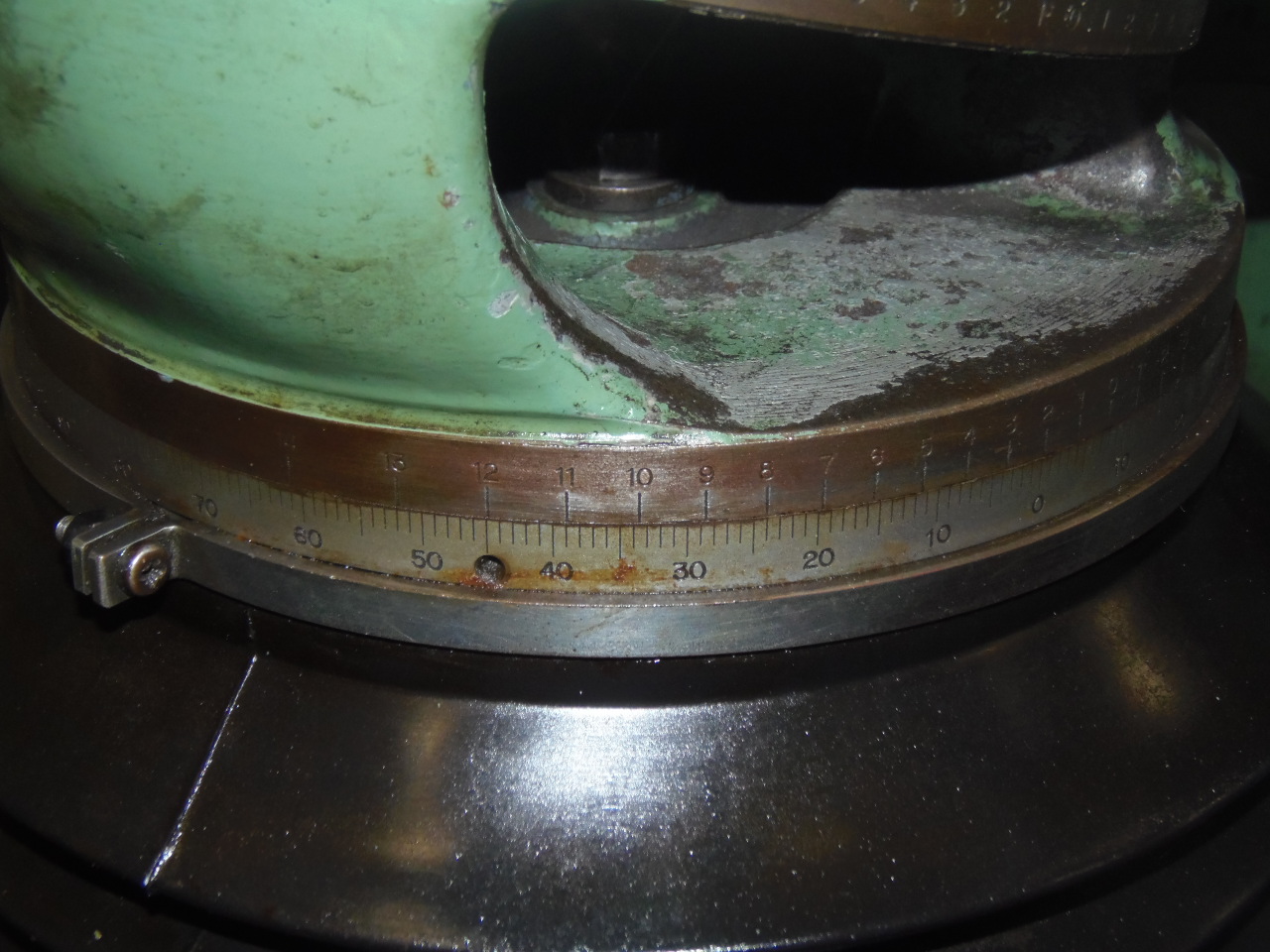

SWIVELLING OF WHEEL HEAD............. 360 DEGREES
TILTING OF WHEEL HEAD................ 30 DEGREES
SPINDLE MOTOR........................ 1 HP
DIMENSIONS (APPROX.)................. 61" x 69"
WEIGHT (APPROX.)..................... 2,000 LBS.
