Specifications
Equipped With
GENERAL SPECIFICATIONS:
MODEL A77
AGE 1995
SERIAL NUMBER A95-157
PALLET SIZE 24.8" x 24.8"
MAXIMUM TABLE LOAD 2,640 LBS
SPINDLE NOSE TO PALLET CENTER 7.1" - 37.4"
SPINDLE CENTER TO PALLET SURFACE 3.9" - 33.3"
X AXIS TRAVEL 31.5"
Y AXIS TRAVEL 29.5"
Z AXIS TRAVEL 30.3"
AXIS INDEXING 360,000 (4TH AXIS)
SPINDLE SPEEDS 20 - 10,000 RPM
SPINDLE TAPER CAT 50
SPINDLE MOTOR 40 HP AC
TOOL CHANGER CAPACITY 40 STATION ATC
WEIGHT (APPROX) 40,000 LBS
DIMENSIONS (APPROX) 224" X 114" X 130"H
EQUIPPED WITH:

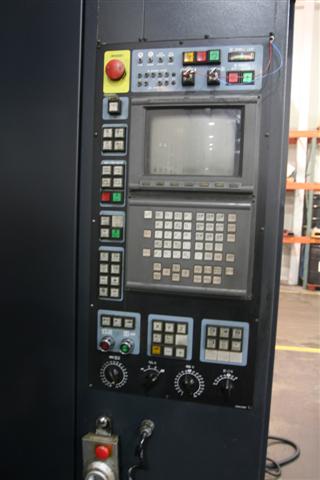

FANUC 16iM (PRO LOGIC III) CNC CONTROL WITH 10.4" LCD
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYCNHRONOUS / SOLID TAPPING)
COOLANT THROUGH THE SPINDLE
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
