Specifications
Equipped With
GENERAL SPECIFICATIONS:

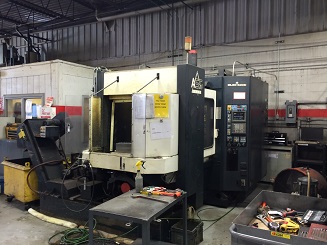

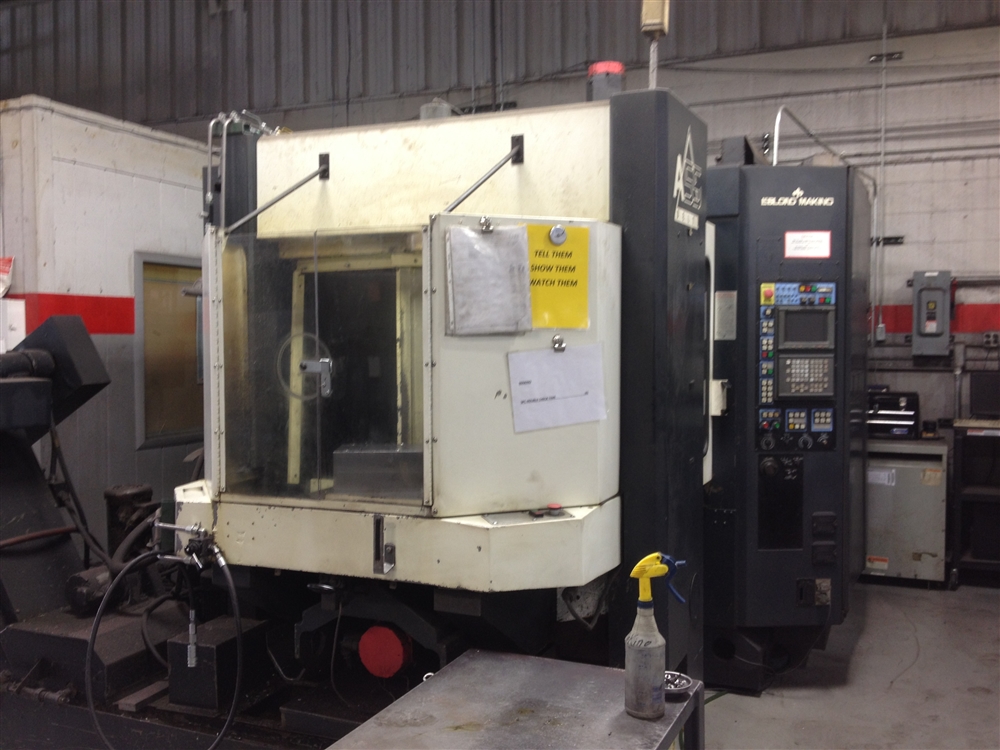

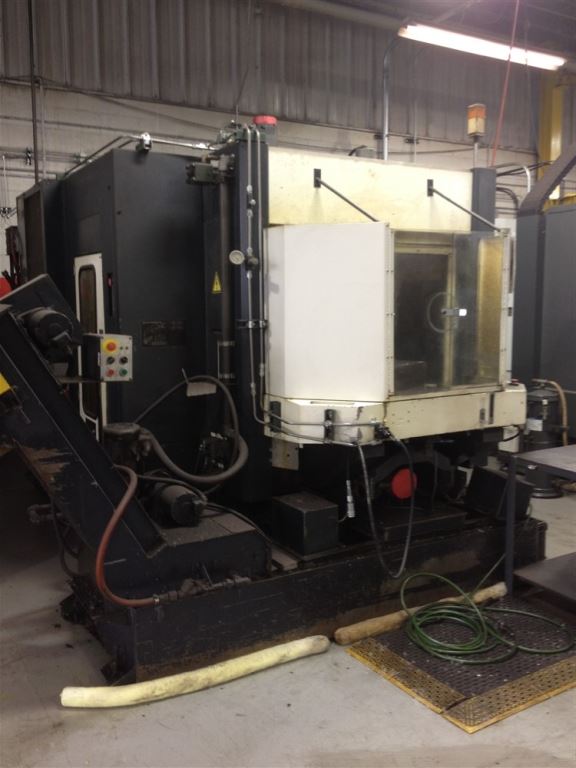

MANUFACTURER...................... MAKINO

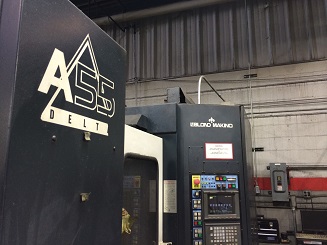

MODEL............................. A55 DELTA
AGE............................... 1999

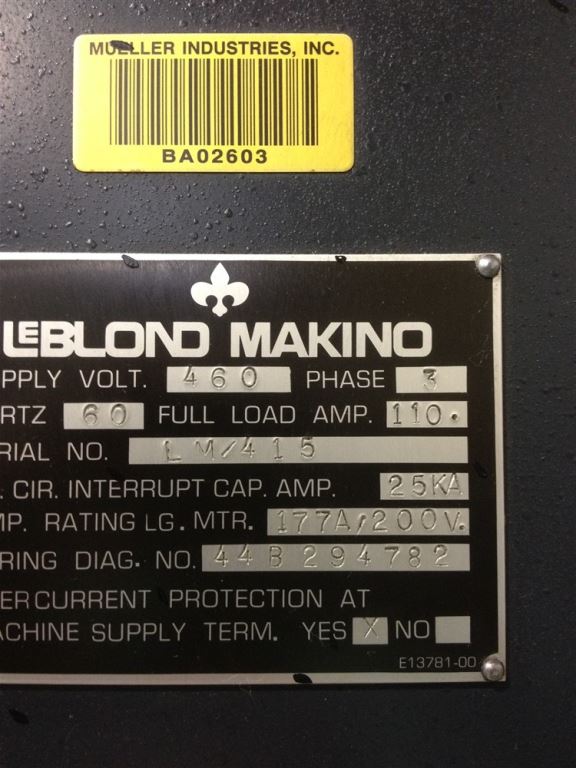

SERIAL NUMBER..................... LM0-415

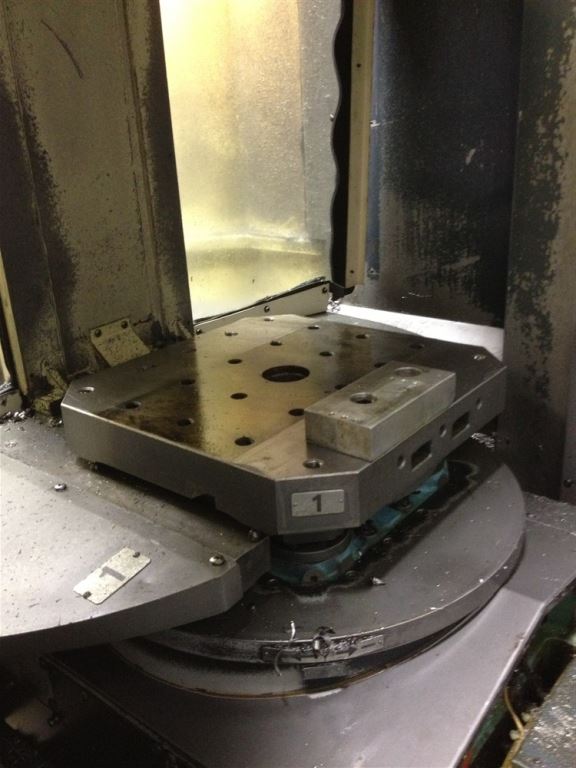

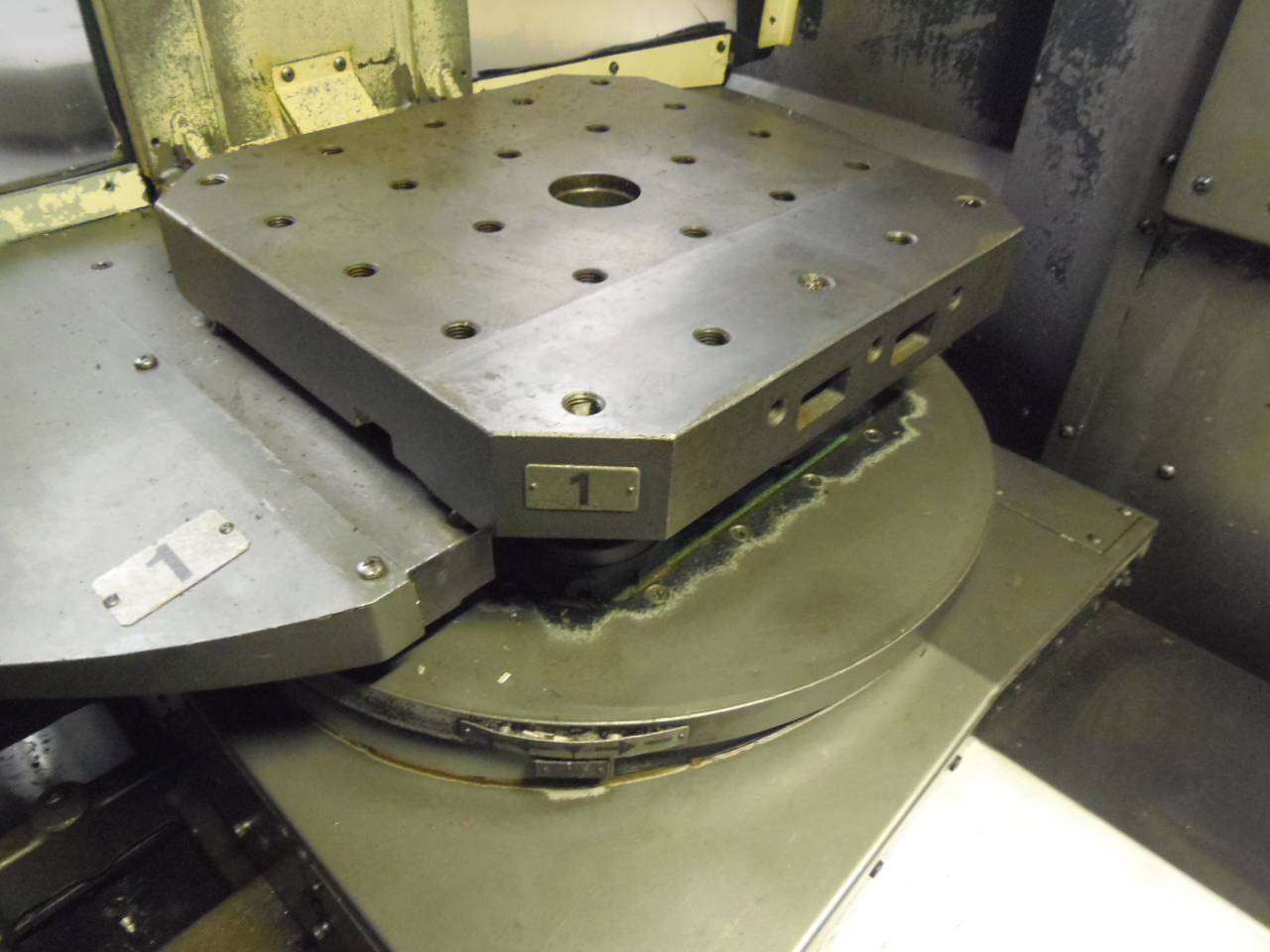

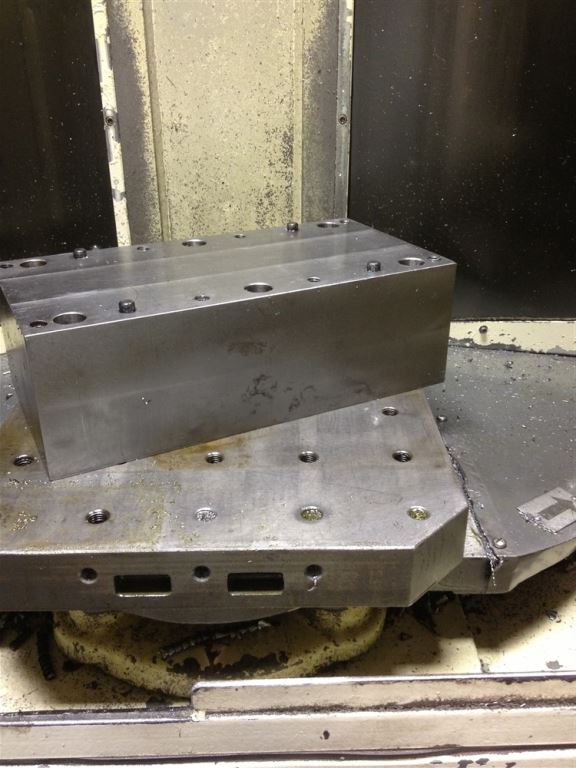

PALLET SIZE....................... 15.7" x 15.7"
MAXIMUM TABLE LOAD................ 880 LBS
X AXIS TRAVEL..................... 22"
Y AXIS TRAVEL..................... 22"
Z AXIS TRAVEL..................... 22"
RAPID TRAVERSE RATE............... 1575 IPM
AXIS INDEXING..................... 1 DEGREE (360 POSITIONS)

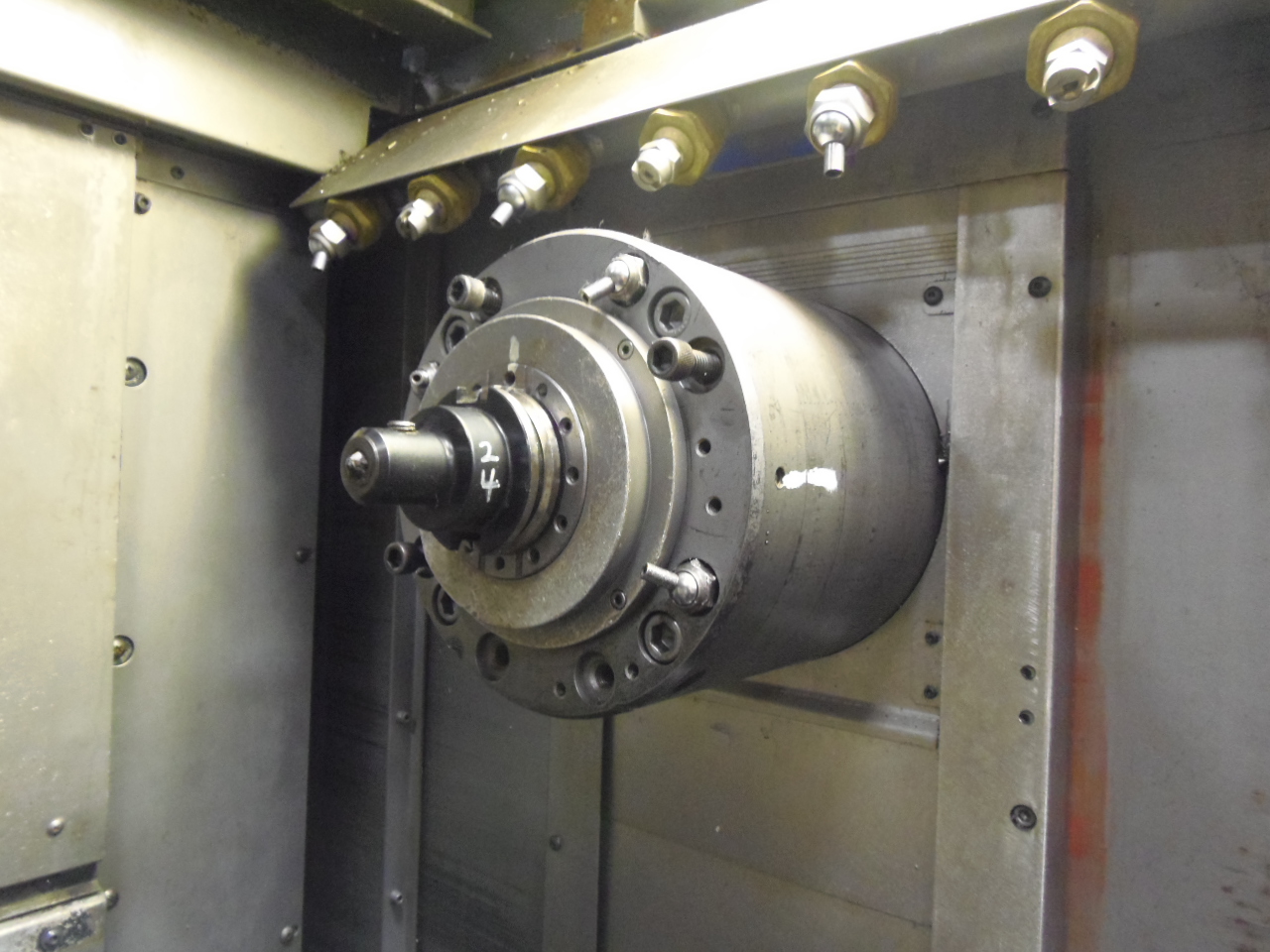

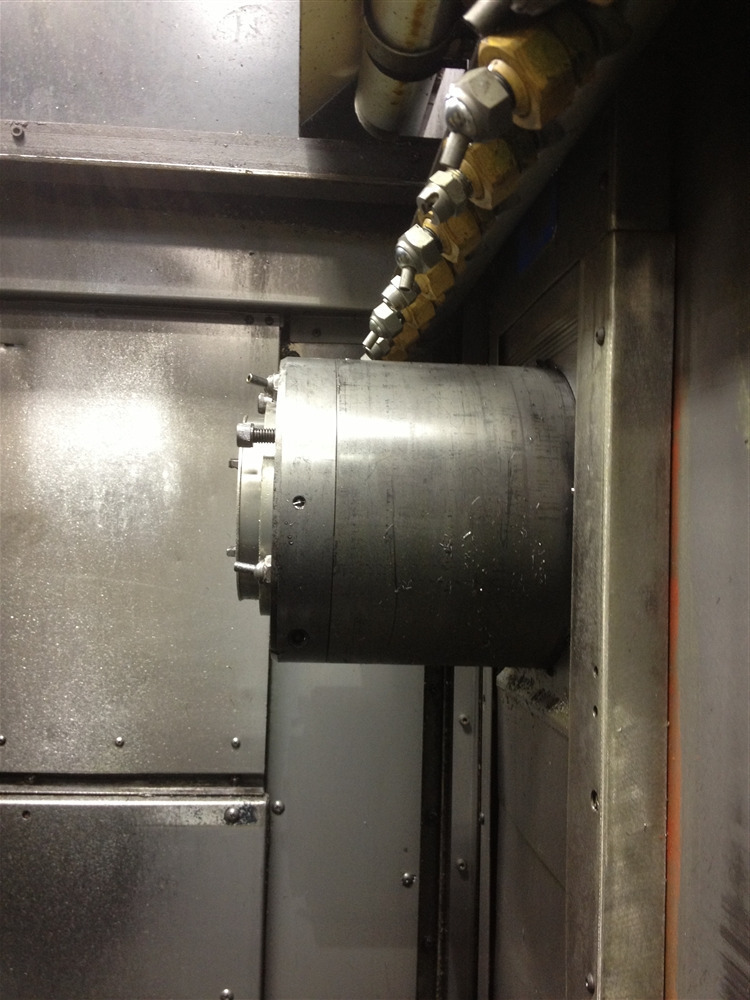

MAX SPINDLE SPEED................. 14,000 RPM
SPINDLE TAPER..................... CAT 40
SPINDLE MOTOR..................... 29.5 HP AC
TOOL CHANGER CAPACITY............. 40 TOOLS
FLOOR SPACE....................... 8' X 12'
OVERALL HEIGHT.................... 9' 8"
WEIGHT............................ 18,500 LBS
EQUIPPED WITH:

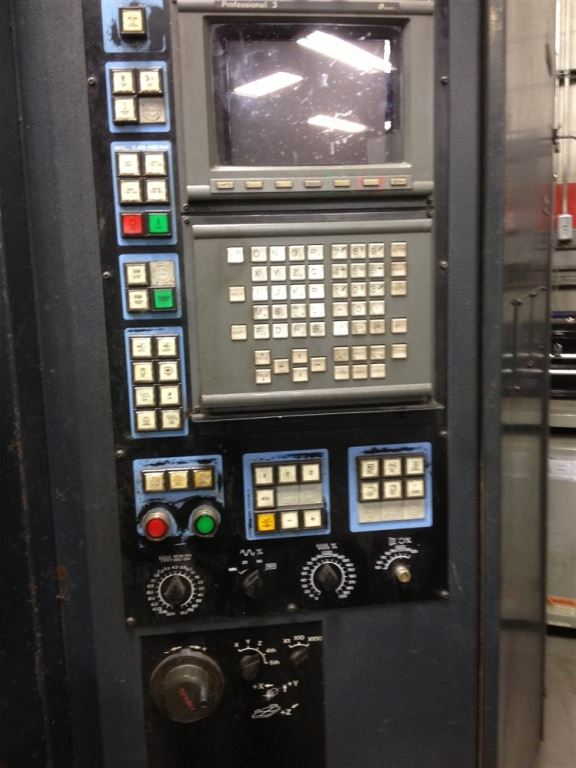

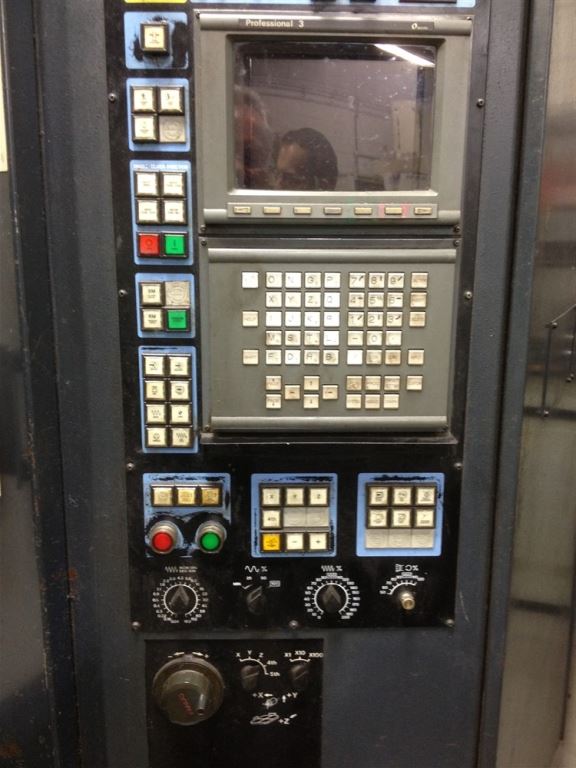

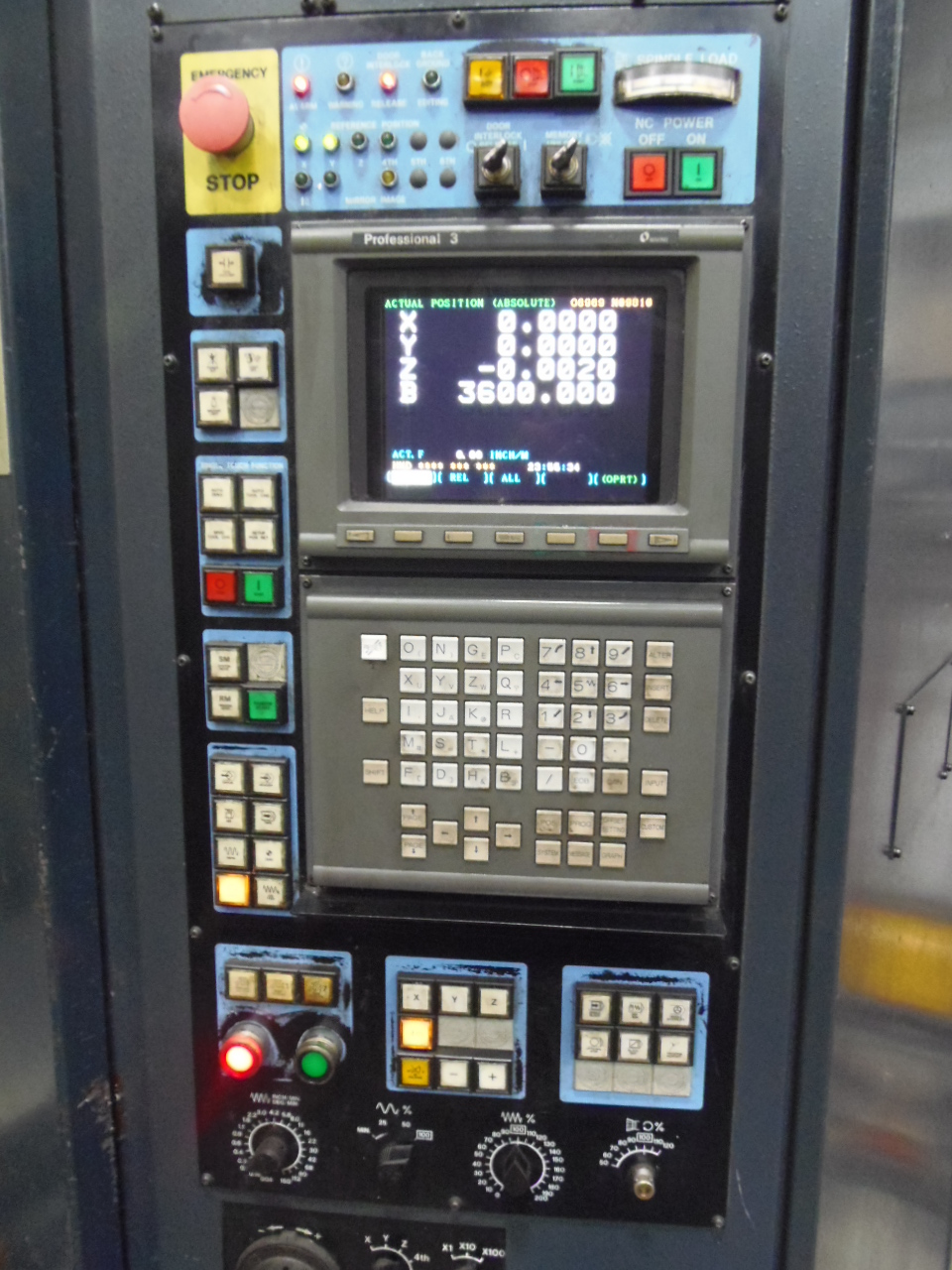

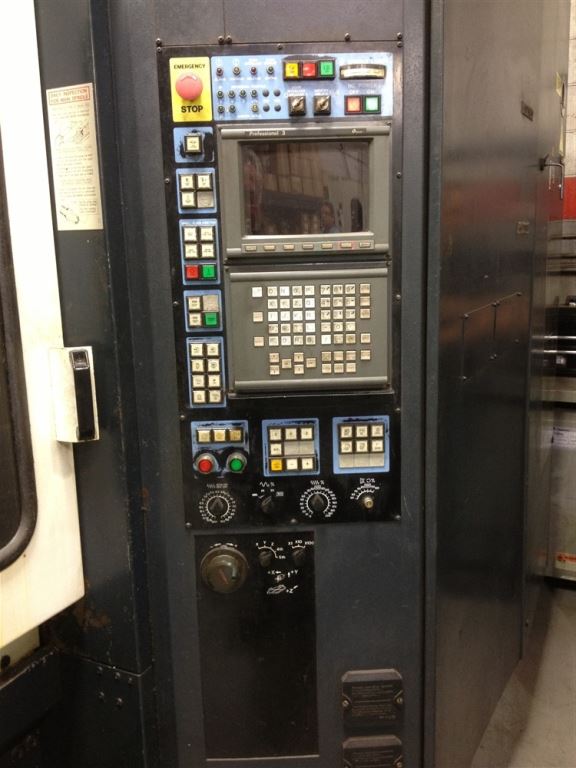

FANUC 16iM (PRO LOGIC III) CNC CONTROL WITH 10.4" LC
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING, SYNCHRONOUS, SOLID TAPPING
COOLANT THROUGH THE SPINDLE
INSTALLATION IS AVAILABLE.
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
