Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER MAHO
MODEL MC-700C
SERIAL# 77014
AGE APPROXIMATELY 1986
TRAVELS (X) 27.5"
(Y) 17.7"
(Z) 19.7"
SPINDLE TAPER 40
SPINDLE SPEEDS 20 - 3150 RPM
CLAMPING AREA 24.8"
MEASURING SYSTEMS RESOLUTION 0.001 DEGREE
MAX WORKPIECE WEIGHT 1102 LBS
WEIGHT APPROX 11,025 LBS
DIMENSIONS 142" X 92" X 99"H
EQUIPPED WITH:

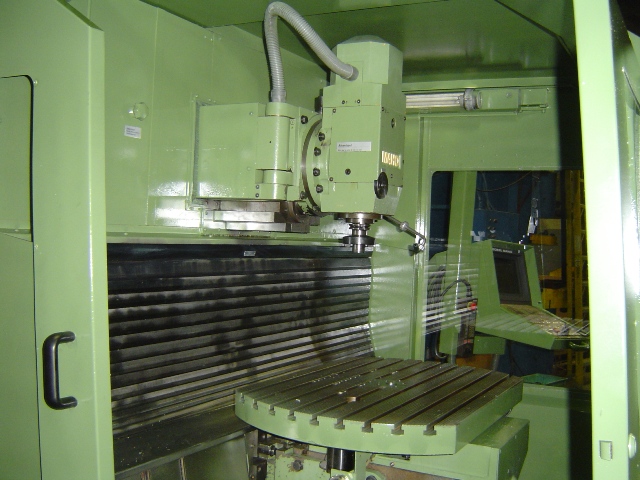

TABLE WILL ROTATE AND SWIVEL UNDER CNC CONTROL
VERTICAL HEAD WILL SWIVEL MANUALLY AND CAN BE SHIFTED TO THE SIDE SO THE MACHINE CAN BE USED AS A HORIZONTAL MACHINE

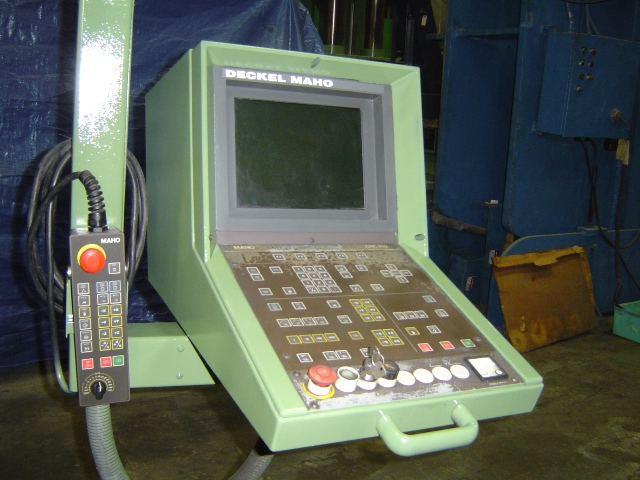

MAHO CNC432 CONTROL
HAND HELD PENDENT
SPECIFICATIONS SUBJECT TO VERIFICATION
