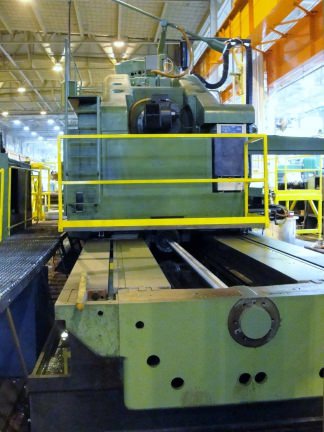

Specifications
Equipped With
GENERAL SPECIFICATIONS:
CUTTER STROKE RANGE..................... 7.9"-35.5"
RUN-IN & RUN-OUT PATHS OF CUTTER........ 2" APPROX
CUTTING SPEED, STEPLESS................. 10-INFINATE PER DIVISION
COLUMN DISPLACEMENT SPEED, SLOW......... 0.216 IPM
COLUMN DISPLACEMENT SPEED, FAST......... 20 IPM
MAX PATH OF GENERATING TABLE............ 2 X 23.6"

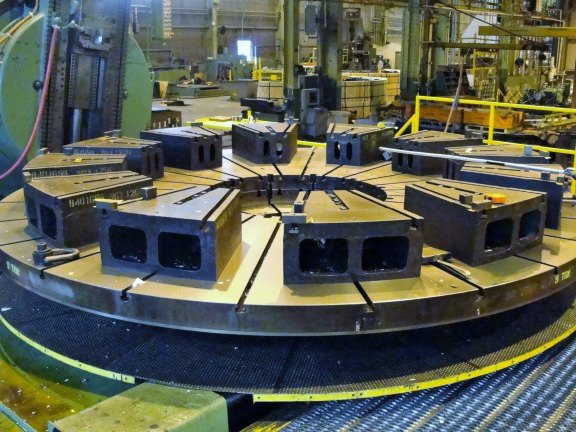

DIA OF CIRCULAR TABLE CLAMP SURFACE..... 80.7"-33.85"
DIA OF 1ST TABLE INSET.................. 33.82"-4.41"
DIA OF 2ND TABLE INSET.................. 33.82"-18.11"
DISTANCE, TABLE TOP TO MACHINE BASE..... 61.4"
INDEXING WORM GEAR DIAMETER............. 78.74"

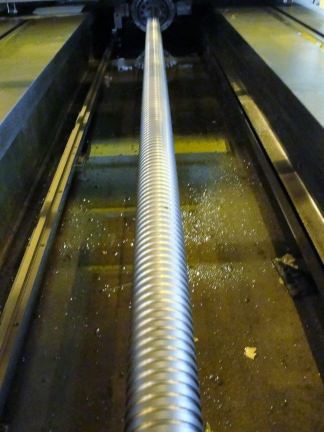

LEAD OF THE PITCH SCREW................. P11/6"
NUMBER OF TEETH, INDEXING WORM GEAR..... 324
TABLE CENTER TO CUTTER BOX 0-LINE....... 122.8"-8.9"
CUTTER BOX DIMENSIONS, L X H X D........ 12.75" X 2.36" X 2.52"
MAX CUTTER LENGTH....................... 12.75"
WARD-LEONARD CONVERTER MOTOR............ 88 HP
DIMENSIONS, L X W X H................... 28.2' X 15.6' X 14.1'
APPROX WEIGHT OF MACHINE................ 200,000 LBS
RANGE CAPACITY, SPUR GEARS:
OUTSIDE DIAMETER, MAX-MIN............... 235"-17.7"
O D USING PROJECTING CUTTER HOLDER...... 10" MINIMUM
MAX TOOTH WIDTH......................... 31.5"
MAX-MIN DP USING RACK CUTTER............ 7/8-6,4
MAX DP USING SINGLE-TOOTH CUTTER........ 1/2
MAX-MIN NUMBER OF TEETH................. 12-1000
DISTANCE, TABLE SURFACE TO UPPER SIDE FACE OF SPUR GEARS:
SWIVEL HEAD UPRIGHT, CUTTER BOX UP...... 79.5"
SWIVEL HEAD UPSIDE DOWN, CUTTER DOWN.... 51.2"
DISTANCE, TABLE SURFACE TO LOWER SIDE FACE OF SPUR GEARS:
SWIVEL HEAD UPRIGHT, CUTTER BOX DOWN.... 10.1" DOWNWARD CUT
SWIVEL HEAD UPRIGHT, CUTTER BOX DOWN.... 13.1" UPWARD CUT
SWIVEL HEAD UPSIDE DOWN, CUTTER DOWN.... 0(GEAR EXCEEING 825")
TABLE BORE ACCOMMODATES THE FOLLOWING MAX. SHAFT SIZES:
MAX SHAFT DIA X LENGTH.................. 29.5" X 17.6"
MAX SHAFT DIA X LENGTH.................. 25.6" X 46.4"/84"
MAX. WEIGHT OF WORKPIECE:
WITH FIXTURE............................ 80,000 LBS
OCCASIONAL OVERLOAD NOT TO EXCEED....... 100,000 LBS
REBUILT & RETROFIT INFO:
RETROFIT IN 2014 BY CNC DESIGN INC

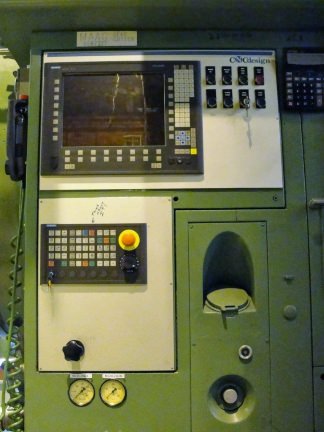

SIEMENS SINUMERIK 840D CNC CONTROL
AC SERVO MOTORS & DRIVES FOR COLUMN INFEED, ROTARY TABLE, & AXES
AC AIR COOLED SERVO MOTOR & DRIVE FOR CUTTER AXIS

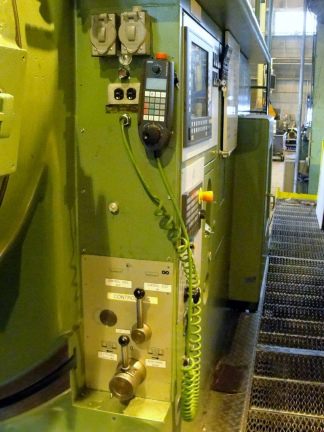

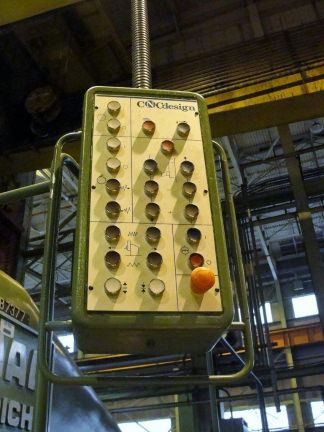

NEW ELECTRICAL CABINET, OPERATOR PANEL, & SERVO CABLES

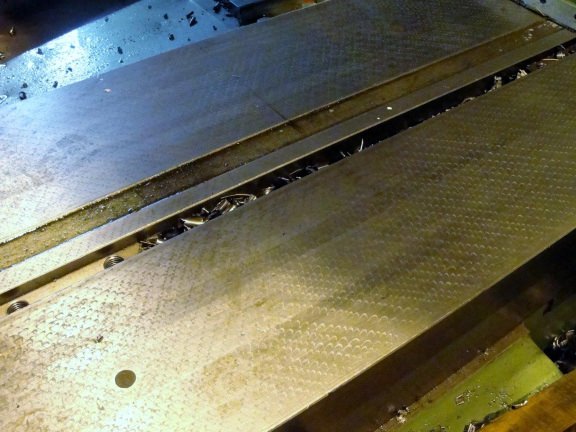

NEWLY SCRAPED COLUMN INFEED & GENERATING AXES SLIDEWAYS
GEAR MEASURING OPTION WITH PROBE
23.4 HP, 10,000 RPM HIGH SPEED MILLING HEAD WITH OIL COOLER
HSK 63 TAPER FOR HIGH SPEED MILLING HEAD
DIRECT MEASURING SYSTEM OPTION FOR ROTARY TABLE
RENISHAW ON BOARD INSPECTION 8U5851
RANGE CAPACITY, HELICAL GEARS:
HELIX ANGLE- TOOTH WIDTH & OUTSIDE DIAMETER DEPEND ON HELIX ANGLE, PITCH, TYPE OF CUTTER, AND HEIGHT OF GEAR OF GEAR CUT
EQUIPPED WITH:
SIEMENS SINUMERIK 840D CNC CONTROL

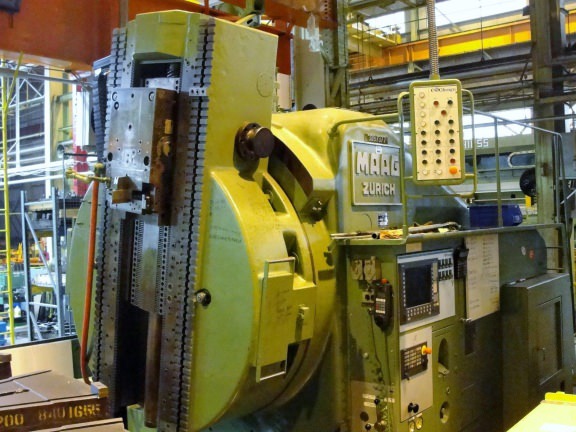

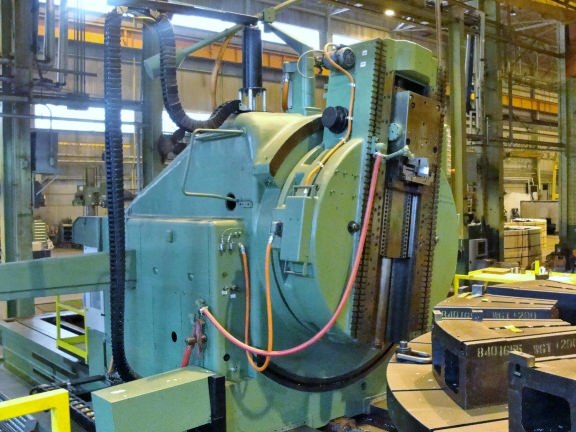

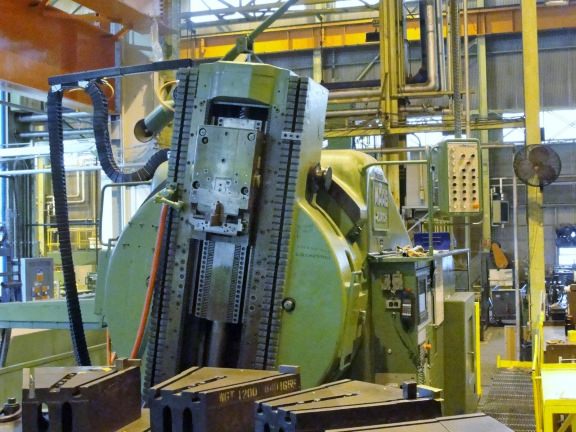

OBLIQUE AND STRAIGHT HEADS
AC SERVO MOTORS & DRIVES FOR COLUMN INFEED, ROTARY TABLE, & AXES
AC AIR COOLED SERVO MOTOR & DRIVE FOR CUTTER AXIS
NEW ELECTRICAL CABINET, OPERATOR PANEL, & SERVO CABLES
NEWLY SCRAPED COLUMN INFEED & GENERATING AXES SLIDEWAYS
GEAR MEASURING OPTION WITH PROBE
23.4 HP, 10,000 RPM HIGH SPEED MILLING HEAD WITH OIL COOLER
HSK 63 TAPER FOR HIGH SPEED MILLING HEAD
DIRECT MEASURING SYSTEM OPTION FOR ROTARY TABLE
RENISHAW ON BOARD INSPECTION 8U5851 PROBE
CHIP CONVEYOR
SPECIFICATIONS SUBJECT TO VERIFICATION
