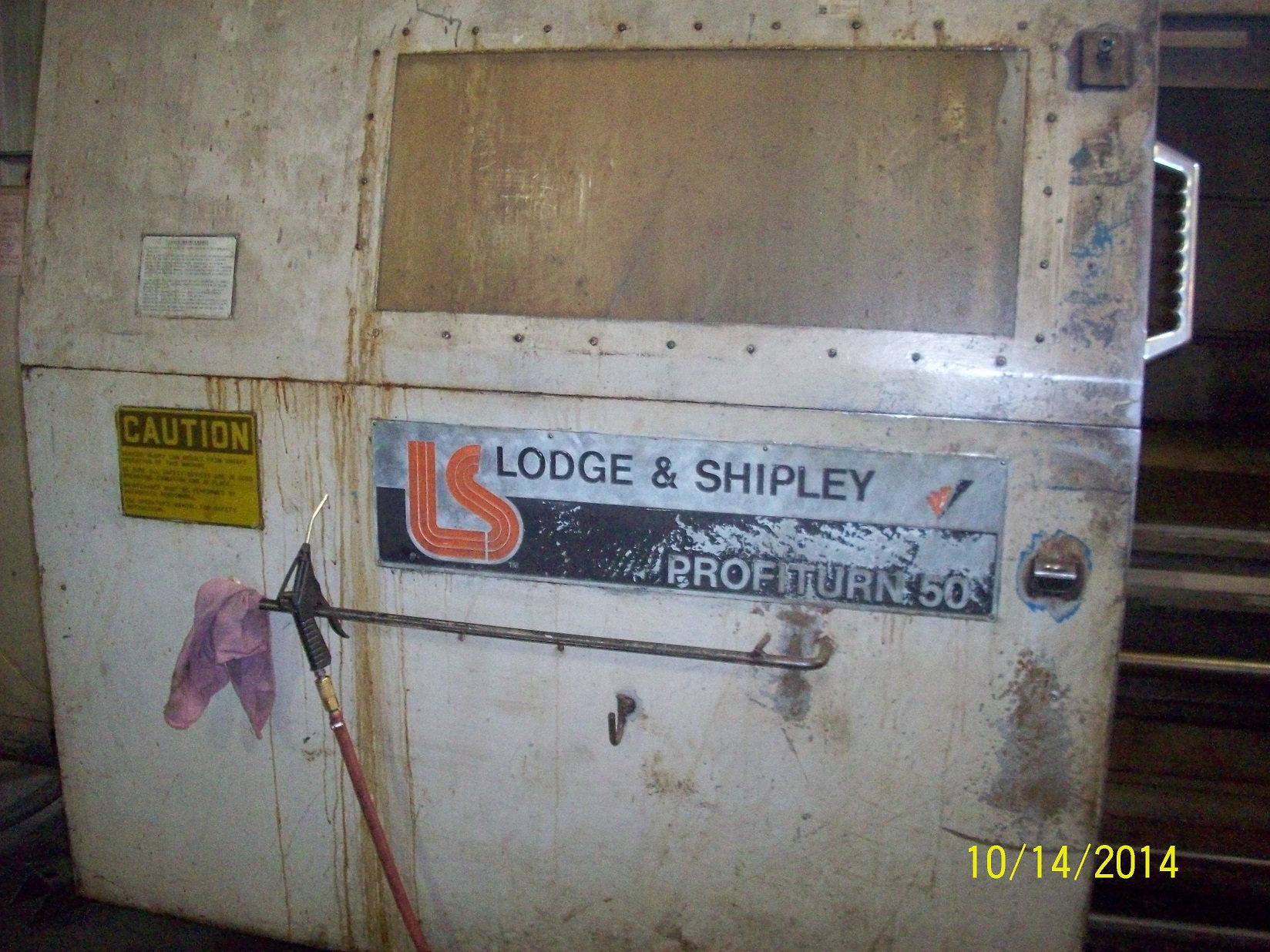

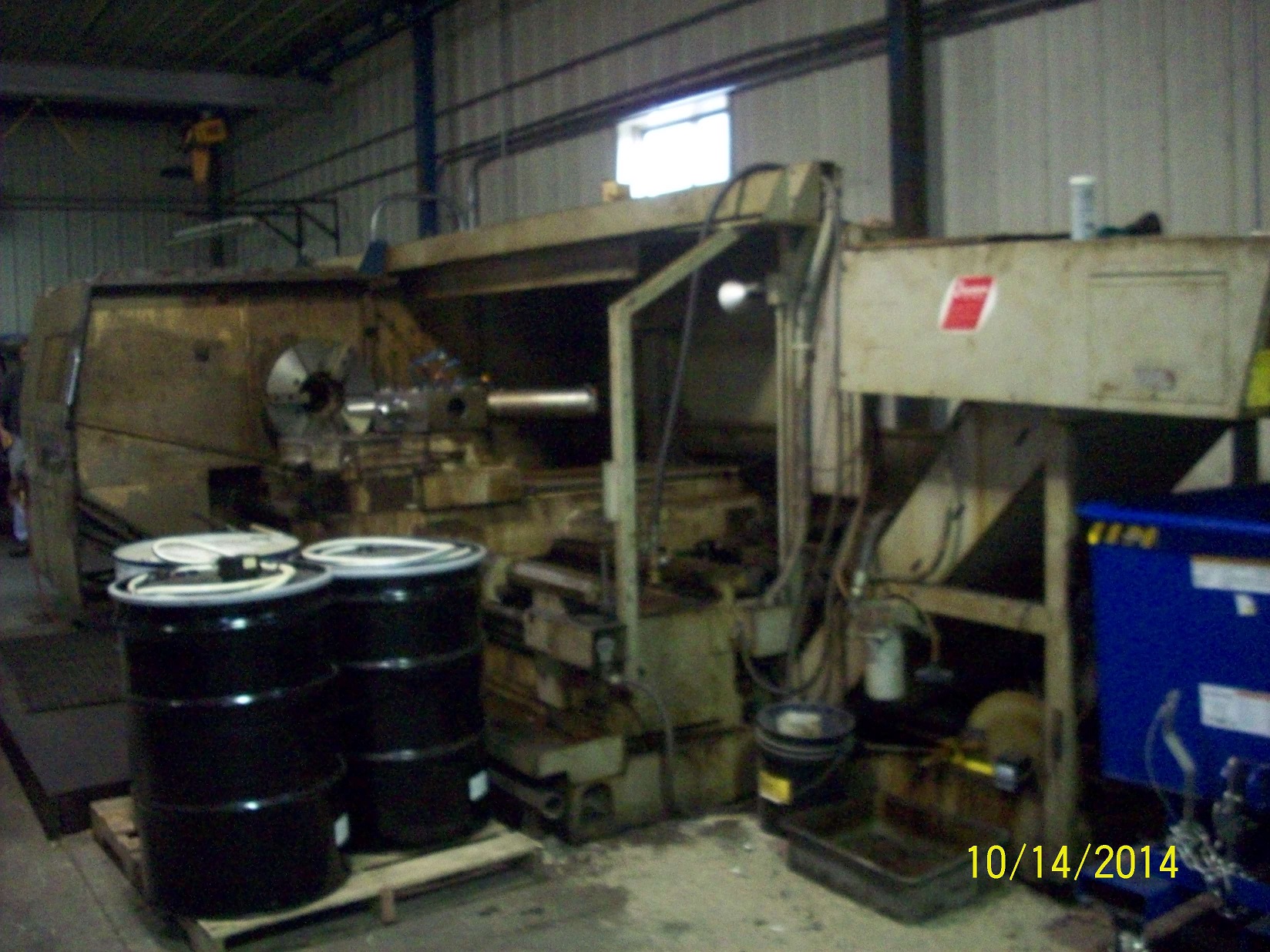

LODGE & SHIPLEY PROFITURN 50, 38” X 88”, NEW 1982, RETRO 1996 WITH FANUC OT, 7" SPINDLE BORE, 850 RPM, RUNS WELL, UNDER POWER IN PLANT, NO TAILSTOCK

GENERAL SPECIFICATIONS

SWING OVER BEDWAYS..................... 38 1/2"
SWING OVER CROSS SLIDE................. 28"
CENTER DISTANCE........................ 88"
SPINDLE NOSE........................... A2-15

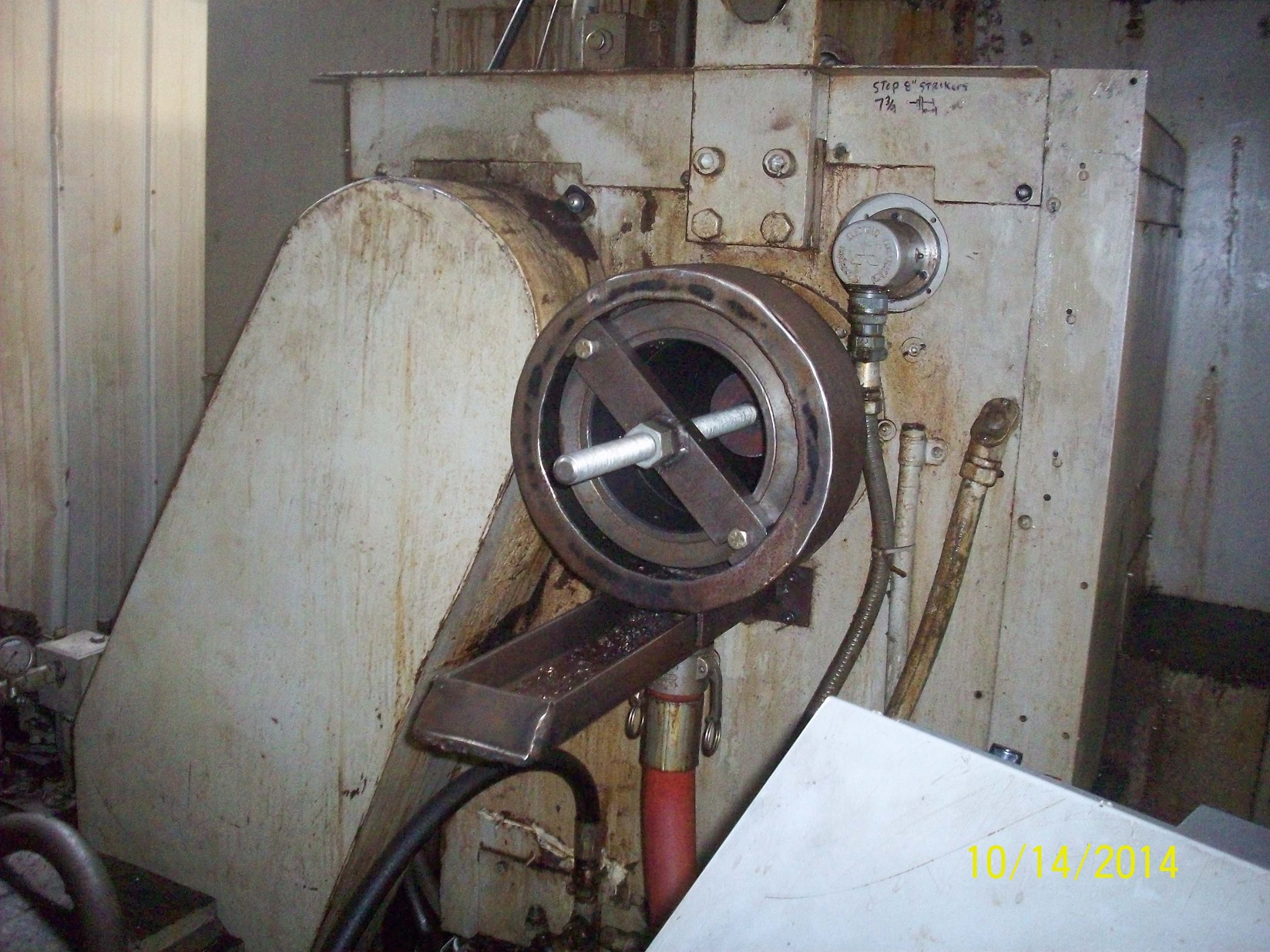

SPINDLE BORE........................... 7.06"

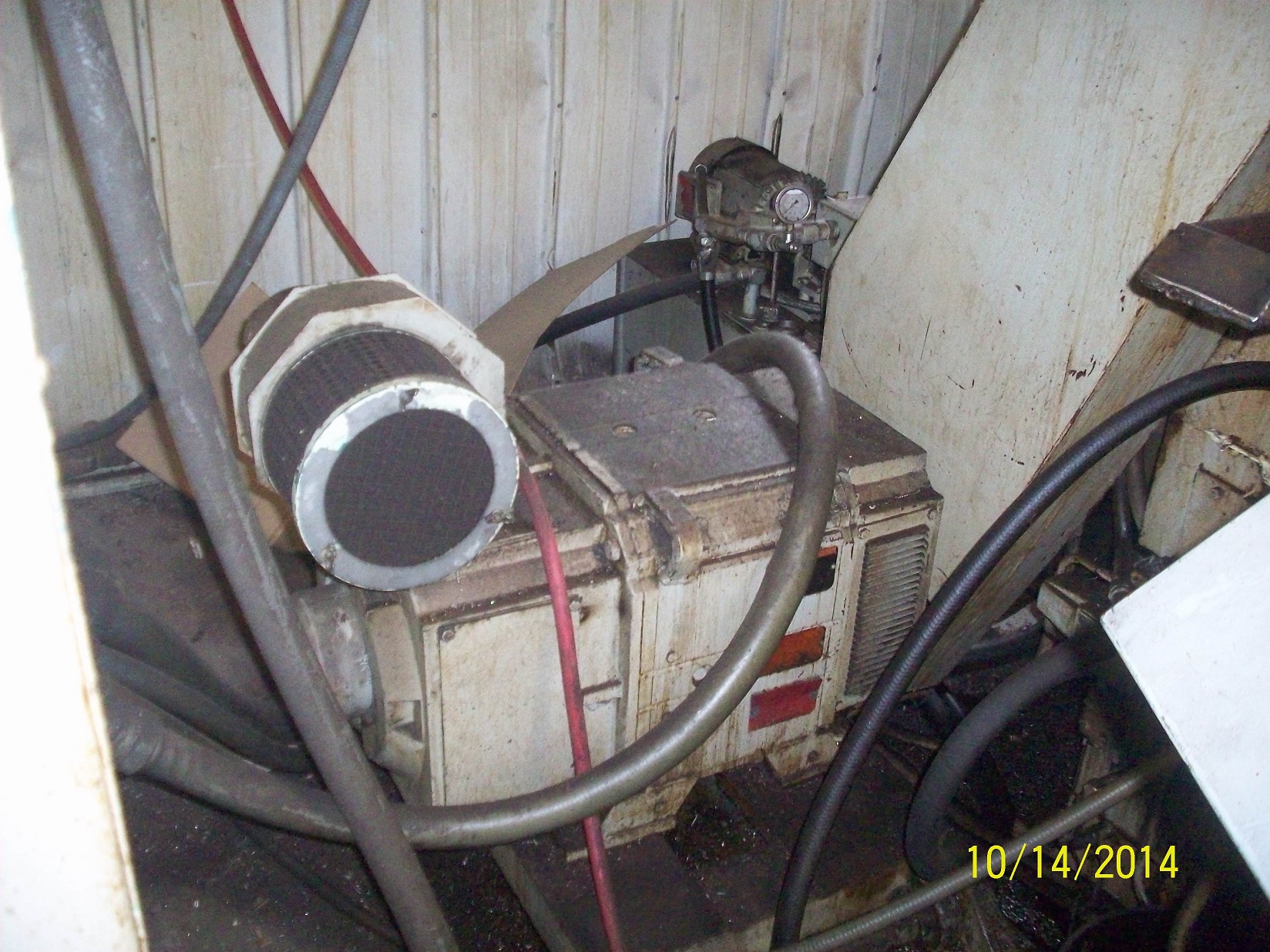

SPINDLE HORSEPOWER..................... 50HP
SPINDLE SPEEDS (3 RANGES).............. 0-145 RPM
                                        145-406 RPM
                                        406-850 RPM

EQUIPPED WITH:

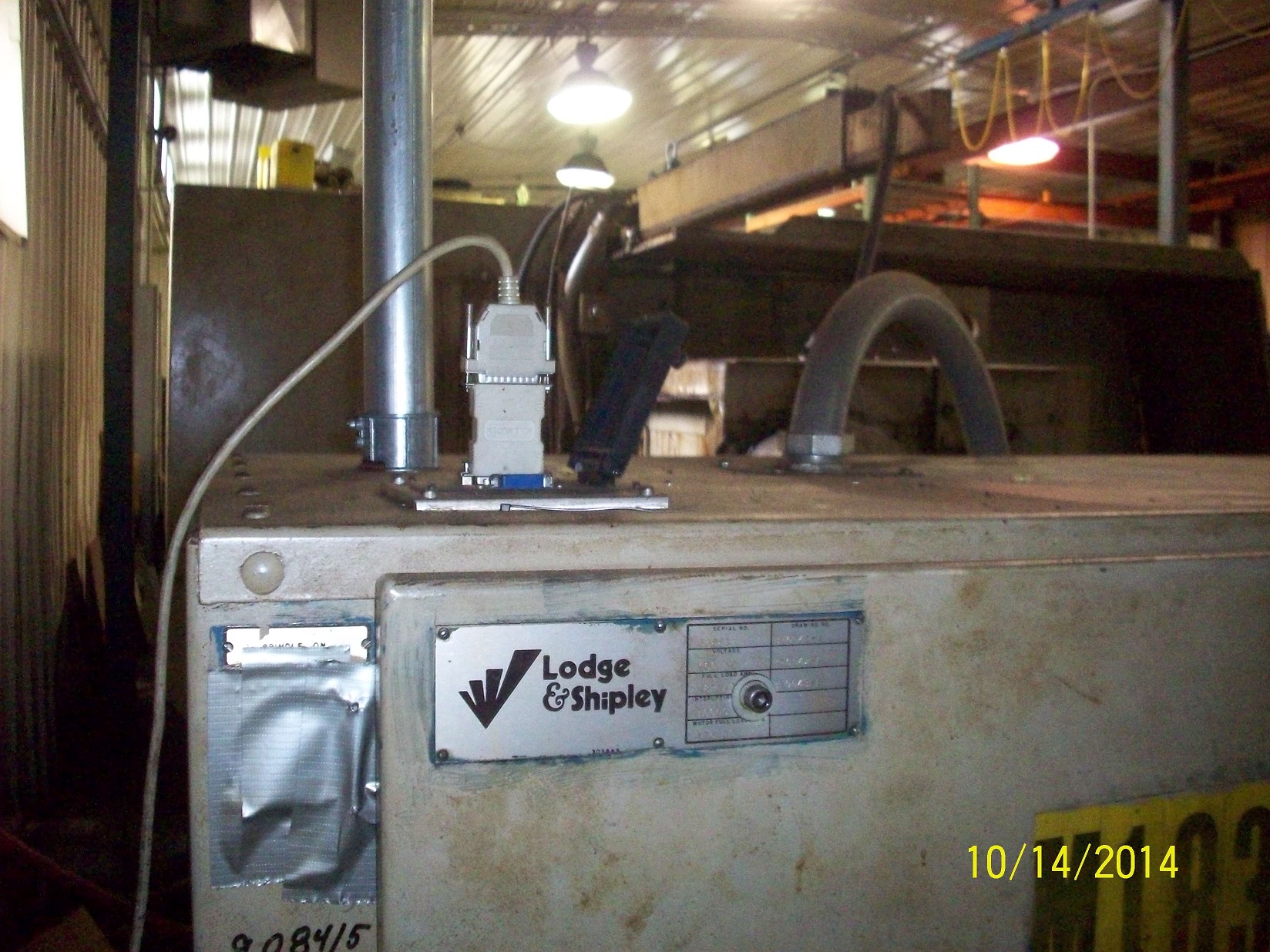

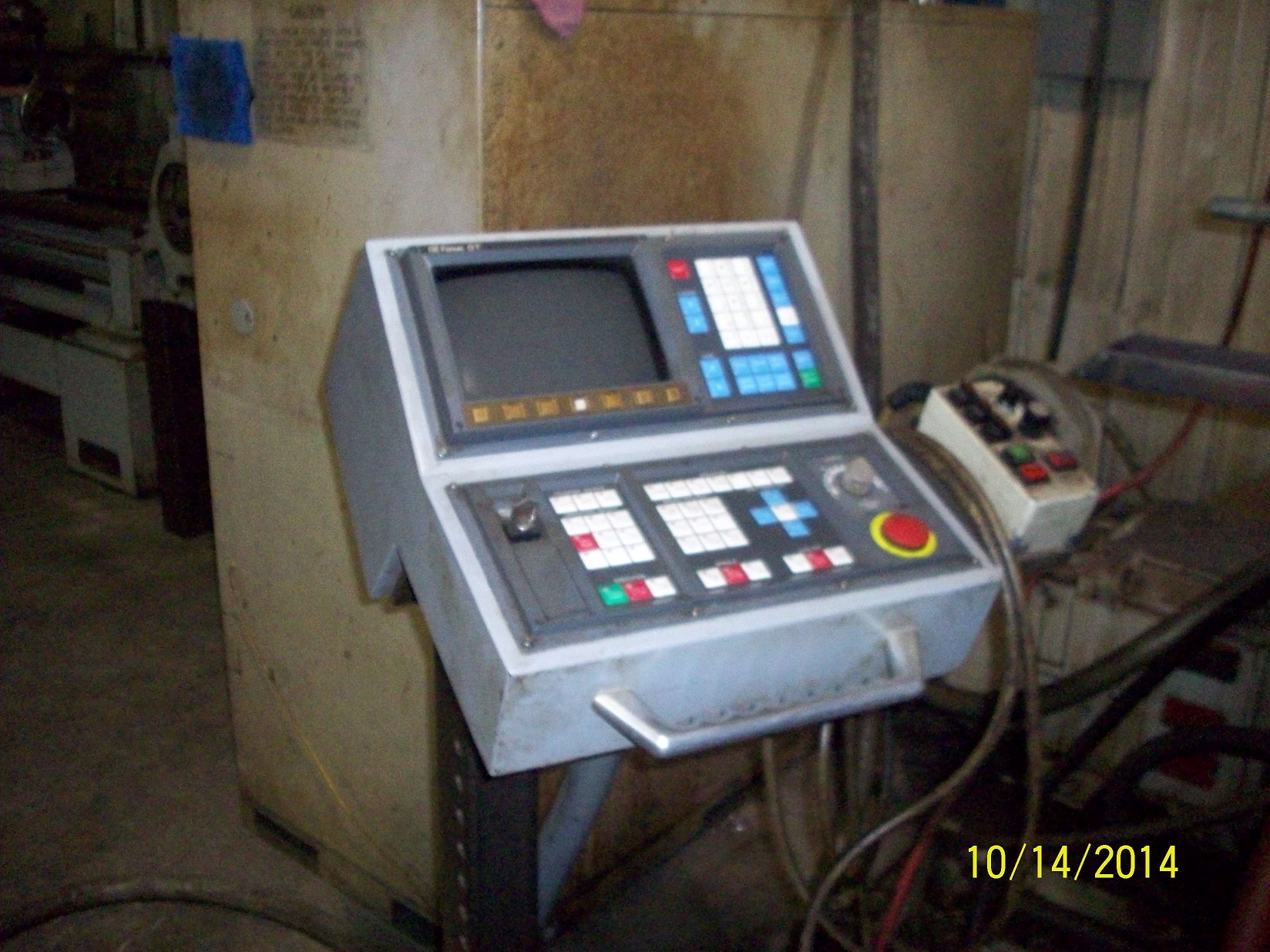

FANUC OT CONTROL (RETROFITTED IN 1996) WITH RS 232 PORT

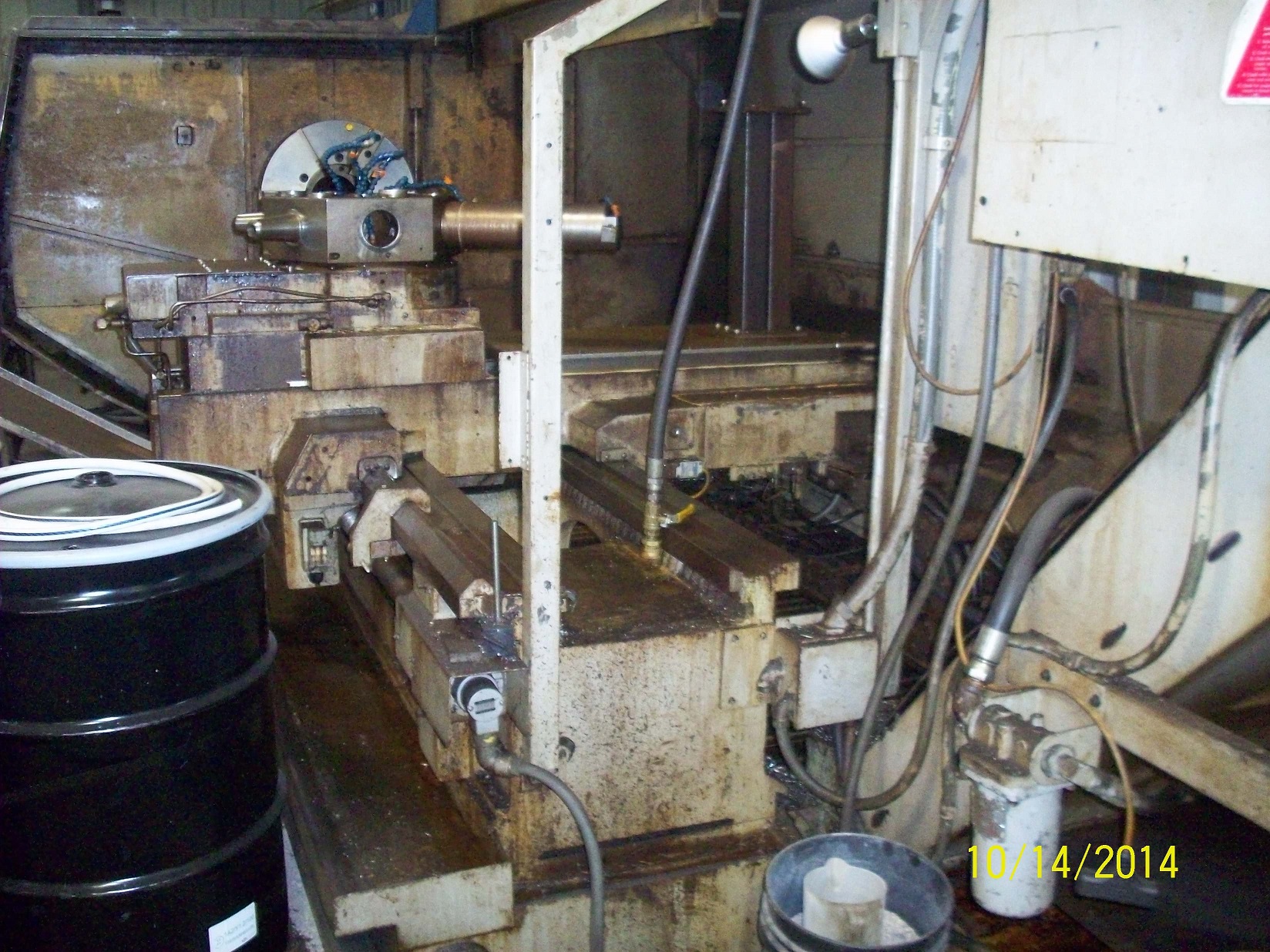

SIX POSITION TURRET
NO TAILSTOCK

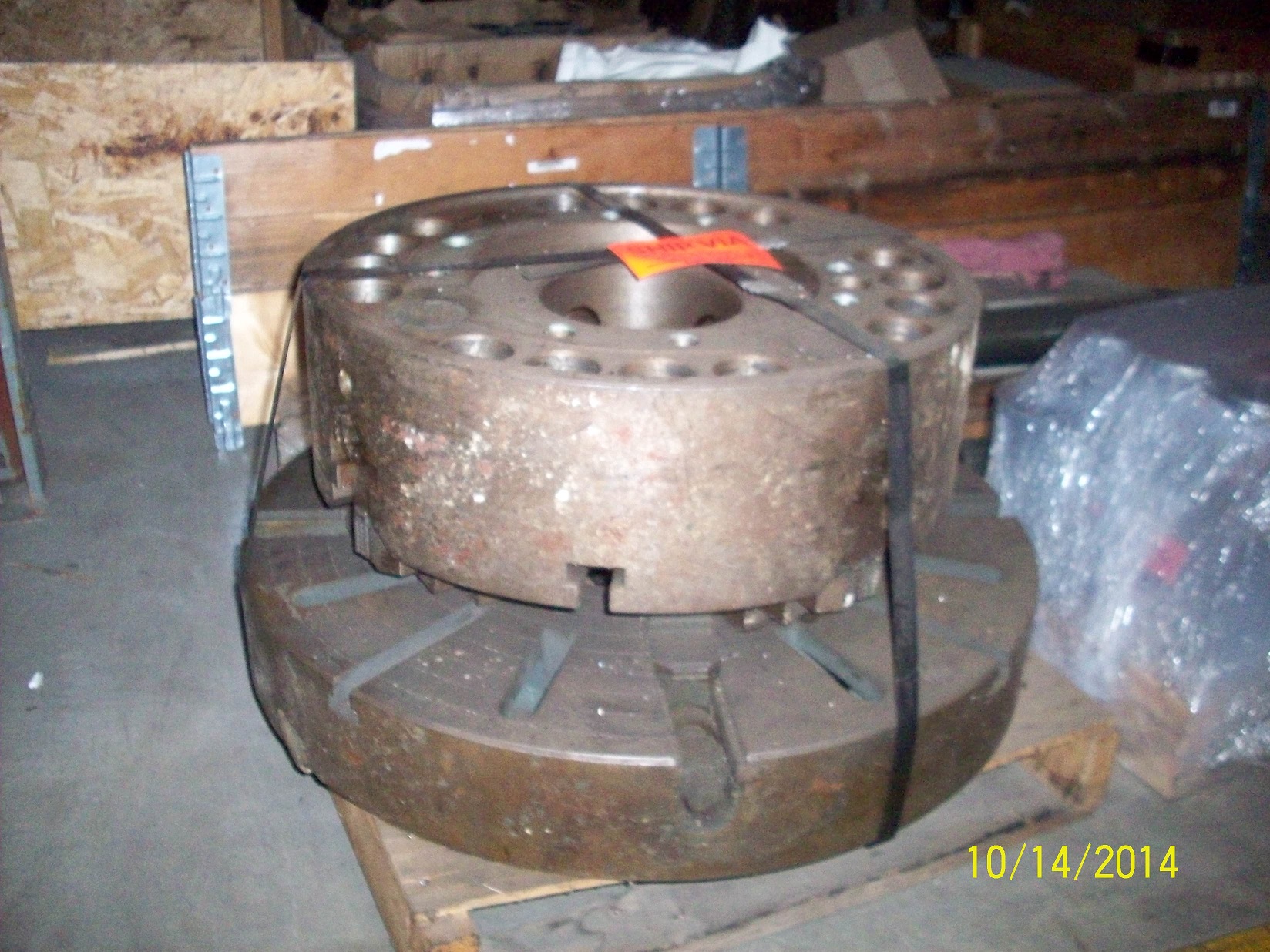

PRATT BURNERD 25" THREE JAW CHUCK WITH 11" BORE (TODAY'S NEW COST IN EXCESS OF $10,000 19.5 THREE JAW CHUCK SMW AUTOBLOK WITH 6 1/4" BORE WITH QUICK CHANGE JAWS TODAY'S NEW COST OVER $15,000

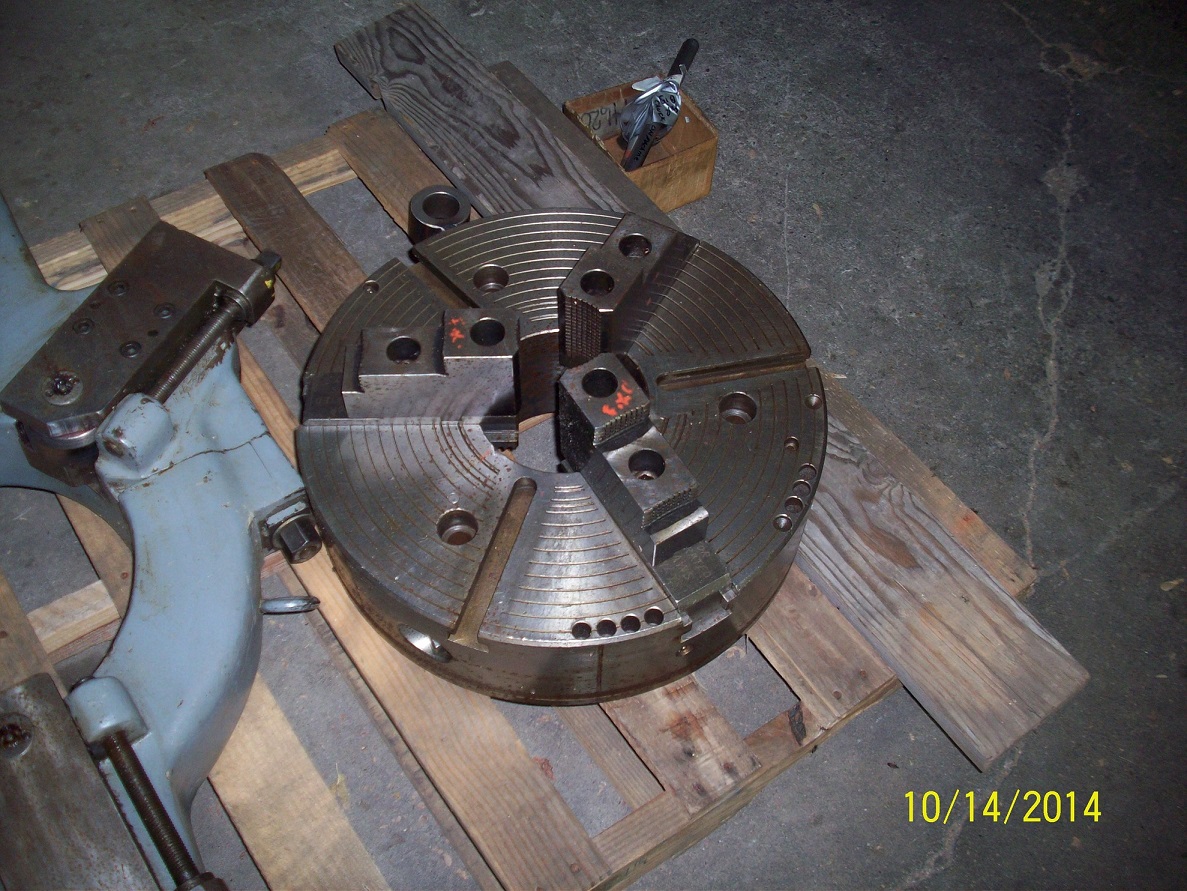

21" FOUR JAW CHUCK WITH 6 3/8" BORE
27.5" FOUR JAW CHUCK WITH 10 1/4" BORE

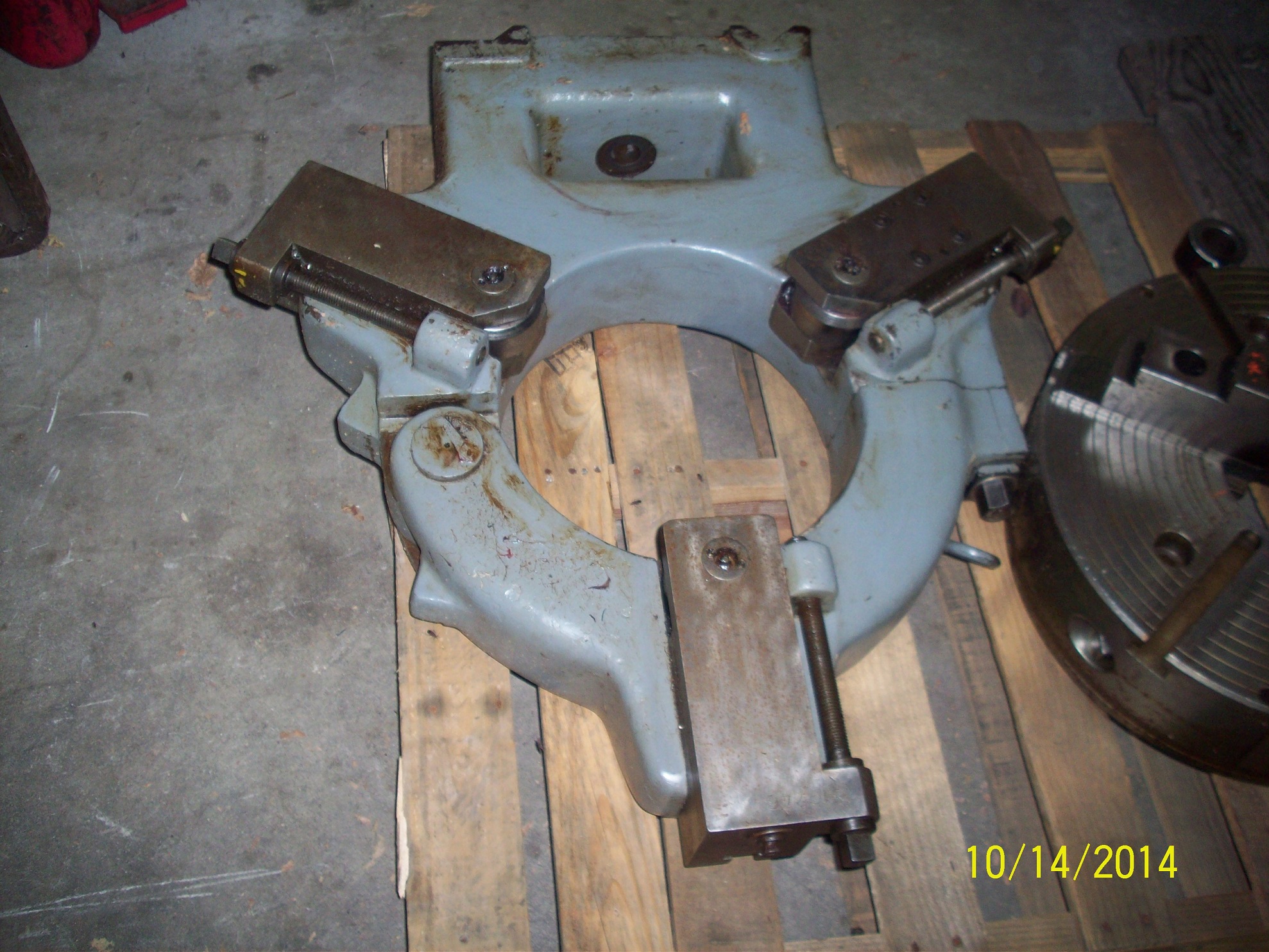

SMALL STEADY REST, APPRX 12" CAPACITY

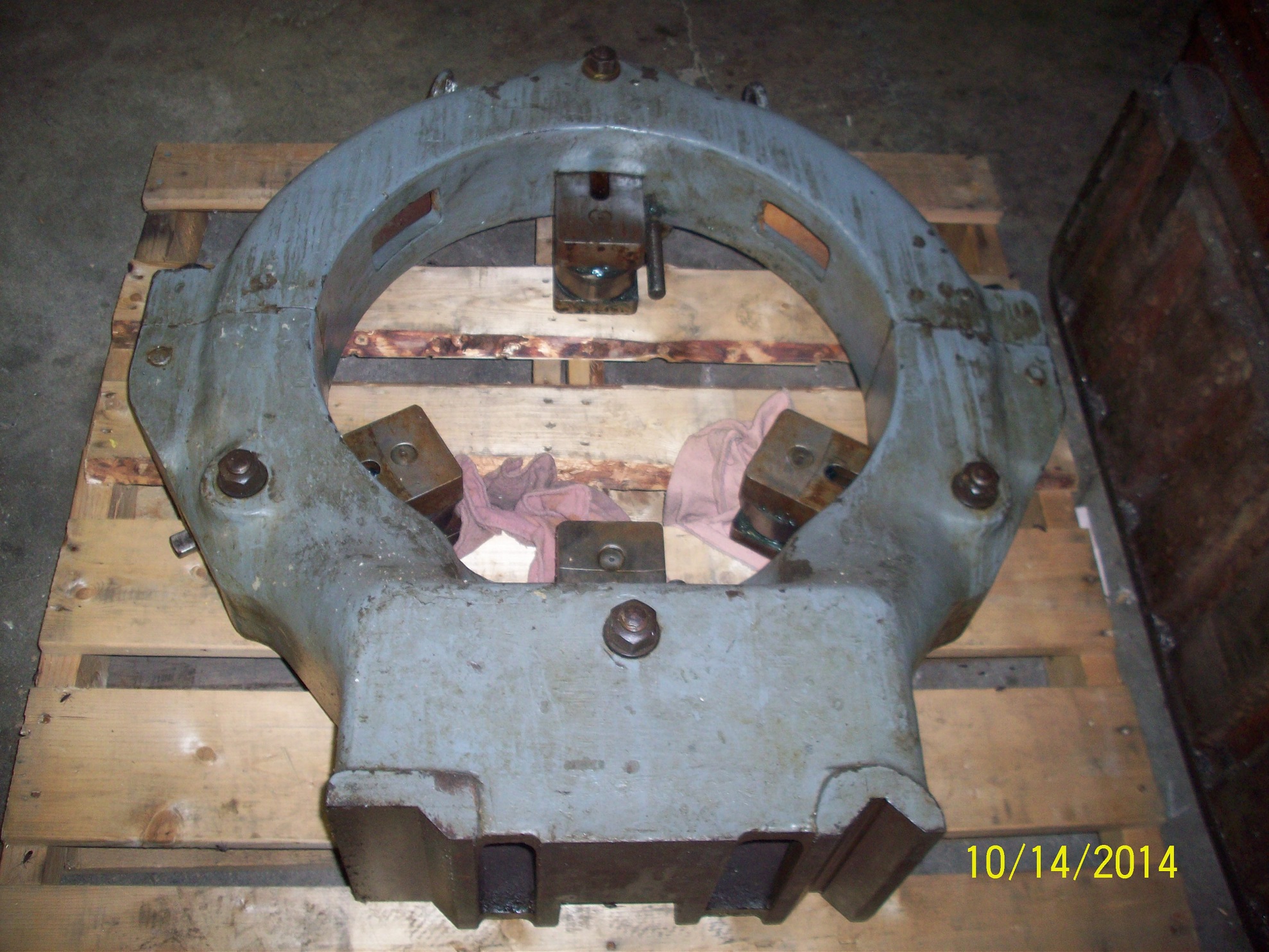

LARGE STEADY REST, APPRX 16" CAPACITY
CHIP CONVEYOR
COOLANT SYSTEM

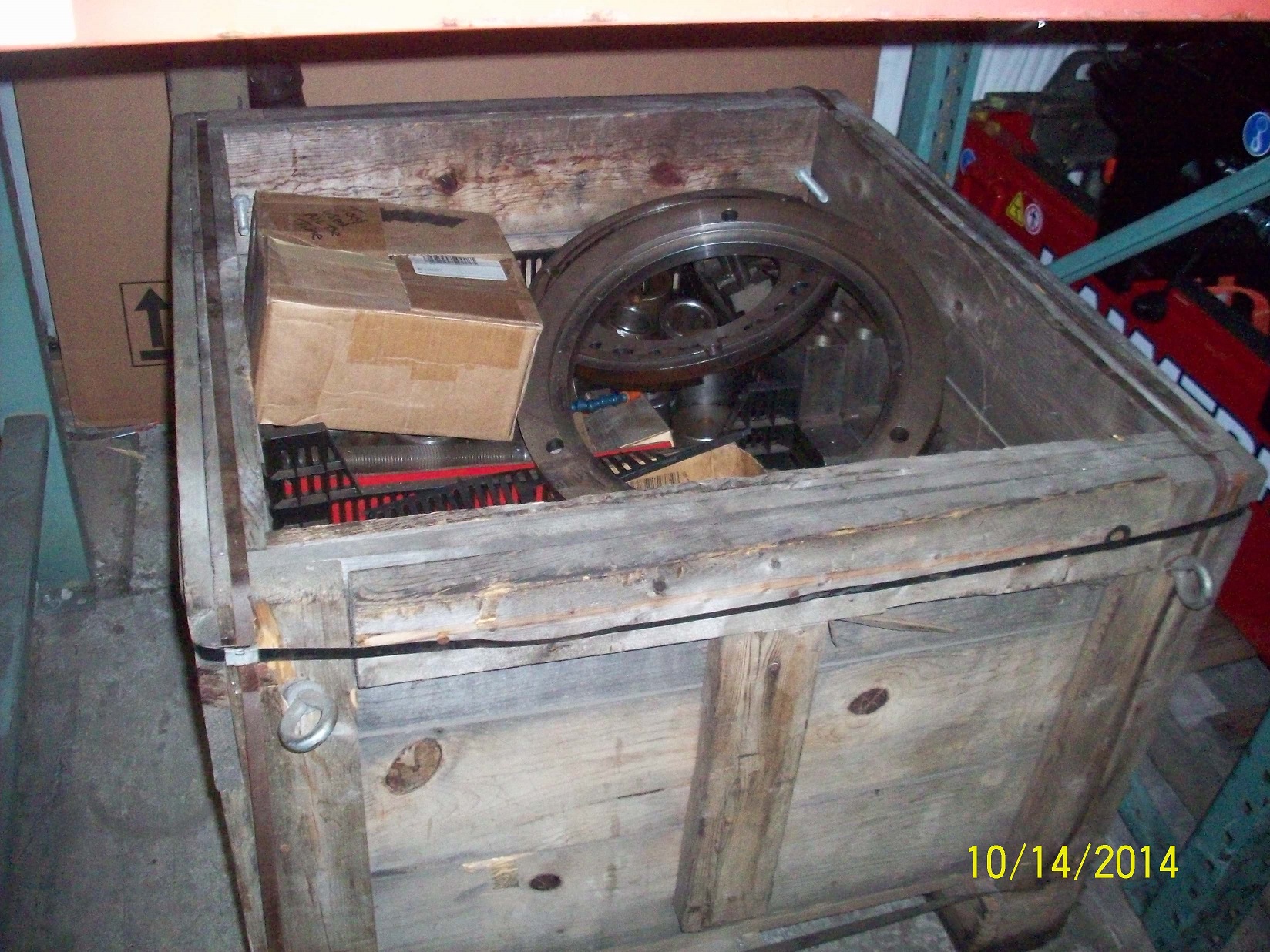

LARGE ASSORTMENT OF CHUCK JAWS
ASSORTED TOOL HOLDERS AND BORING BARS
LARGE ASSORTMENT OF MANUALS

SPECIFICATIONS SUBJECT TO VERIFICATION
