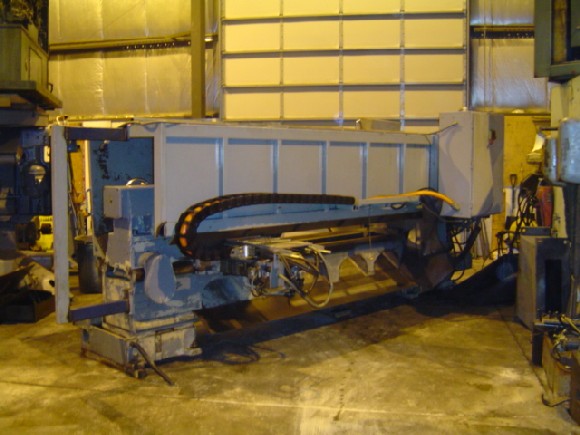

LODGE & SHIPLEY 3220-25, MITSUBISHI MELDAS L3 CNC CTRL (RETRO 1994), 37" SW, 96" CC, 12.5" HOLE, 30 HP

GENERAL SPECIFICATIONS:
MANUFACTURER LODGE & SHIPLEY
MODEL 3220-25
NEW (APPROX.) 1968 (RETROFITTTED 1994)
SWING OVER CARRIAGE 37"
SWING OVER CROSS SLIDE 25"
DISTANCE BETWEEN CENTERS 96"
HOLE THRU SPINDLE 12.5"
SPINLDE MOTOR 30 HP
SPINDLE SPEED 8 - 445 RPM
SPINDLE NOSE A-1
ELECTRICS 3/60/240V
TOOL POSITITIONS 4
WEIGHT (APPROX) 17,500 LBS

EQUIPPED WITH:

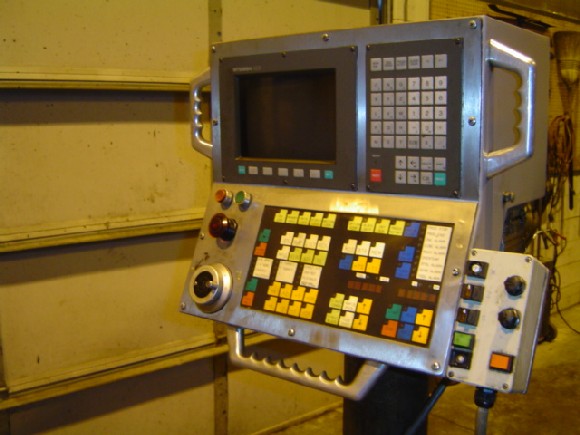

MITSUBISHI MELDAS L3 CNC CONTROL (RETROFITTED 1994)

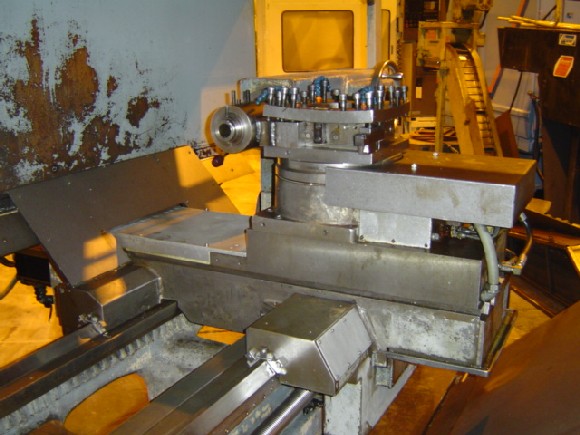

4 WAY POWER INDEXING TOOL POSITION
TRANSCON CHIP CONVEYOR
TAILSTOCK

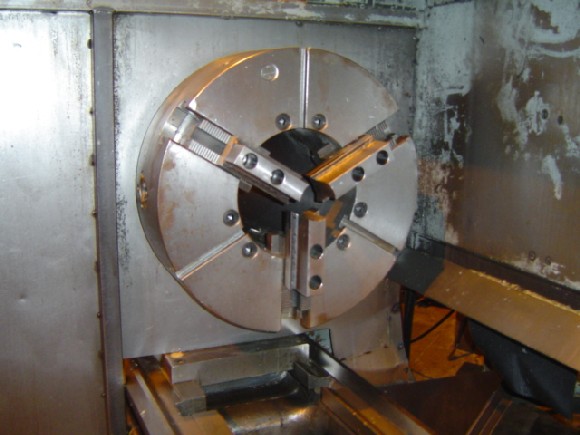

28" 3-JAW MANUAL CHUCK W/12.56 BORE
CONSTANT SURFACE SPEED
