Specifications
Equipped With
GENERAL SPECIFICAITONS:
MANUFACTURER LITTELL
MODEL 308-7BBL
SERIAL # 67061-60
NEW (APPROX.) 1960
CAPACITY .050" x 3"
SPEED 20 - 120 FPM
CAPACITY MILD STEEL .030 THICK x 8" WIDE
CAPACITY MILD STEEL .050 THICK x 4" WIDE
CAPACITY MILD STEEL .078 THICK x 1" WIDE

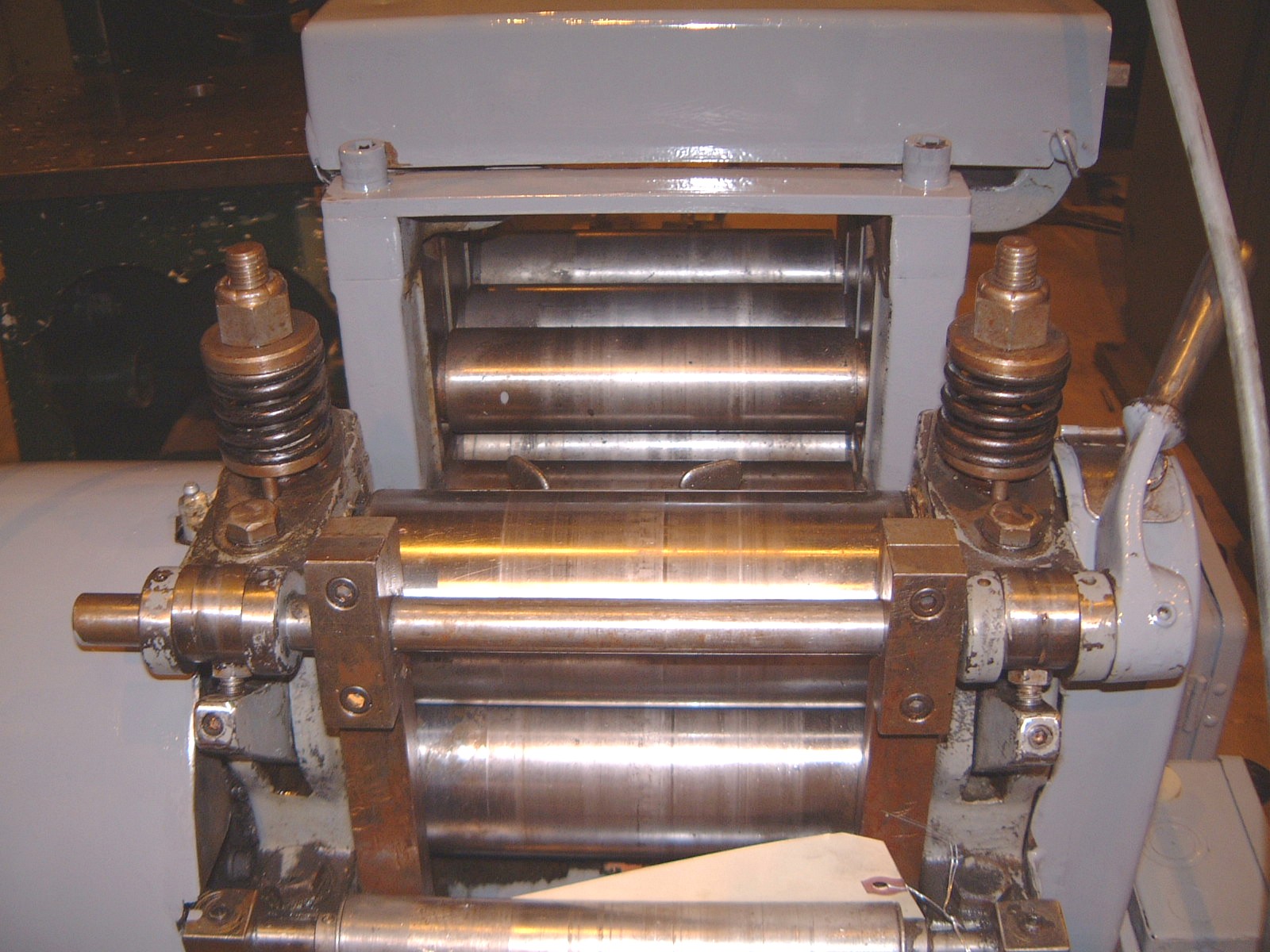

# OF STRAIGHTENING ROLLS 7 (3/4" DIA.)
STRAIGHTENING ROLLS 2-1/4" DIA. x 8-1/2" LONG
ENTRY PINCH ROLL (1) 3.5" DIA. x 8-1/2" LONG
ELECTRICS 220V/3PH
DIMENSIONS (APPROX.) 51"H x 30"W x 42"D
WEIGHT (APPROX.) 600 LBS.
EQUIPPED WITH:
SPEED ADJUSTMENT KNOB
ELECTRIC CLUTCH & BRAKE TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
