Specifications
Equipped With
MANUFACTURER: LINDBERG
TYPE: BOX DRAW FURNACE, GAS FIRED
SIZE I.D.: 48"W X 48"L X 48"H
SIZE O.D.: 88"W X 12'L X 12'8"H
MODEL: 73-484848-G12
SERIAL NUMBER: 959505
MAXIMUM TEMP.: 1250 F
ELECTRICS: 240V/3PH/60HZ APPROX. 32 AMPS

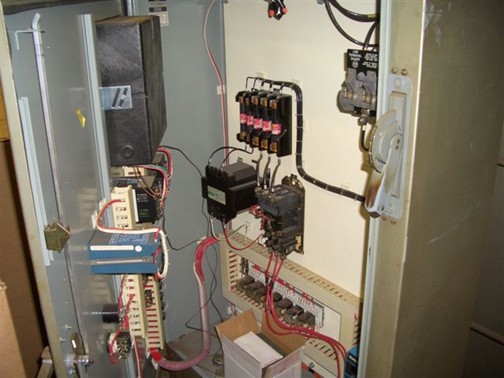

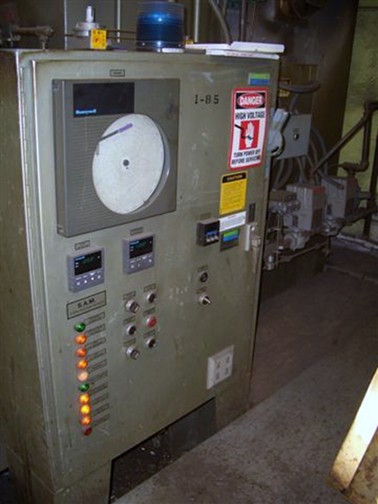

CONTROLS: HONEYWELL UDC 2000 DIGITAL TEMPERATURE CONTROL,
HONEYWELL UDC 2000 DIGITAL HI-LIMIT CONTROL AND
HONEYWELL DR 4200 ROUND CHART RECORDER MOUNTED
IN A FREE STANDING ENCLOSED PANEL.

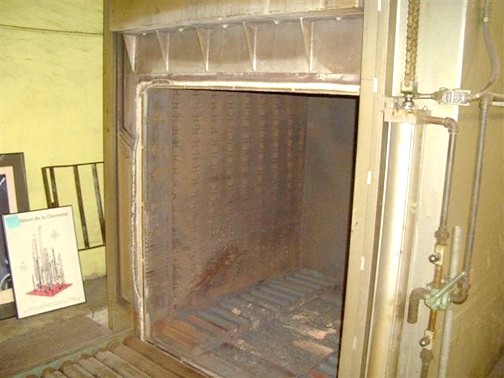

GENERAL: GAS FIRED BOX DRAW FURNACE WITH AIR OPERATED
VERTICAL LIFT FRONT DOOR. GAS BURNER IS AN ECLIPSE
JIB 210 (450,000 BTU/HR) WITH IRI GAS PIPING. HEATED

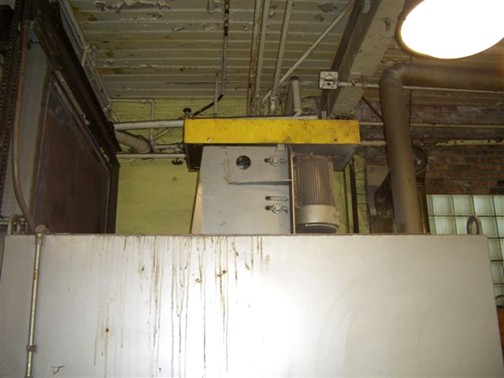

AIR IS CIRCULATED BY A 10 HP 8500 CFM IGE BELT

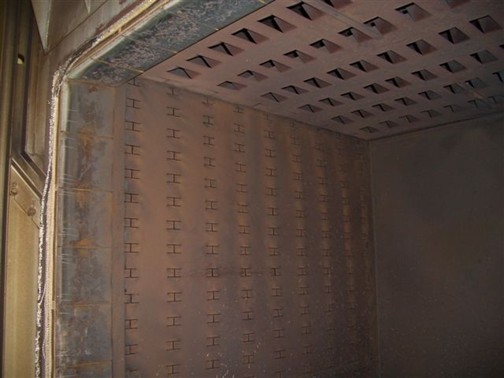

DRIVEN FAN IN THE ROOF AND ENTERS THE WORK AREA VIA
DUCT WORK ON BOTH SIDE WALLS AND RETURNS THROUGH THE
ROOF CREATING A COMBINATION OF HORIZONTAL AND

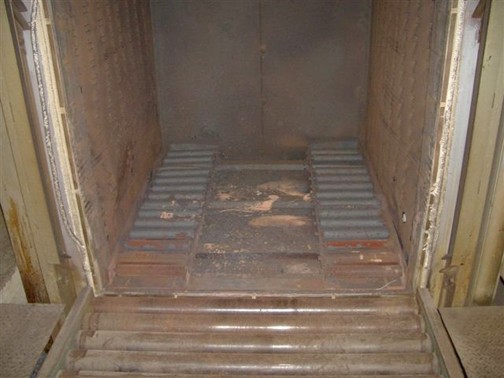

VERTICAL AIR FLOW. OVEN FLOOR IS A ROLLER HEARTH
WITH A 60"L EXTERNAL ROLLER HEARTH LOAD TABLE.
F.O.B.: OUR CONNECTICUT WAREHOUSE
WEIGHT: APPROX. 10,000 LBS
