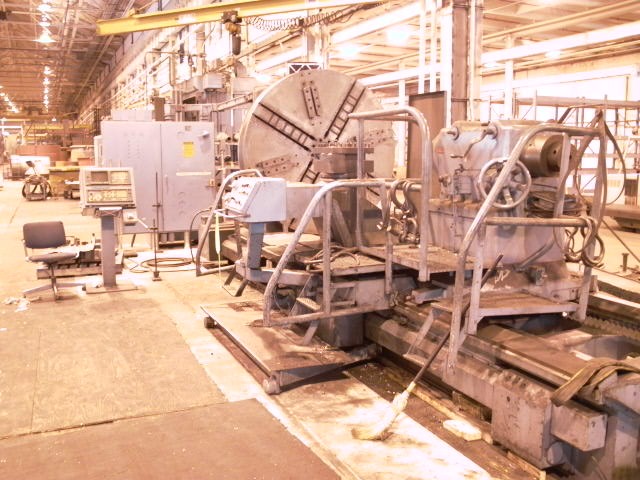

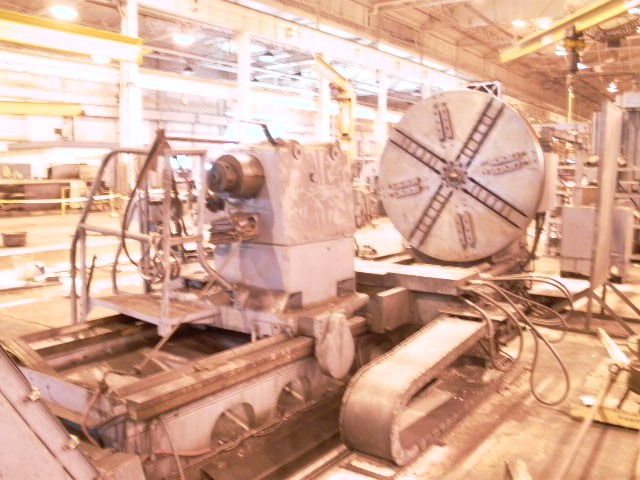

LEBLOND TAPETURN 8460, 84" x 144", FANUC OT CNTRL, 60" CROSS SLIDE, 80" 4-JAW CHUCK, CNC THREADING

GENERAL SPECIFICATIONS:
MANUFACTURER LEBLOND
MODEL TAPETURN 8460
SWING OVER BED 84"
SWING OVER CROSS SLIDE 60"
RATED CENTER DISTANCE 144"
MEASURED CENTER DISTANCE 150"
BED WIDTH 60"
MAX. SPEED 150 RPM
INDEX POSITIONS 12
SPINDLE DRIVE 100 HP/DC
WEIGHT (APPROX.) 84,000 LBS

EQUIPPED WITH:
80" 4-JAW CHUCK

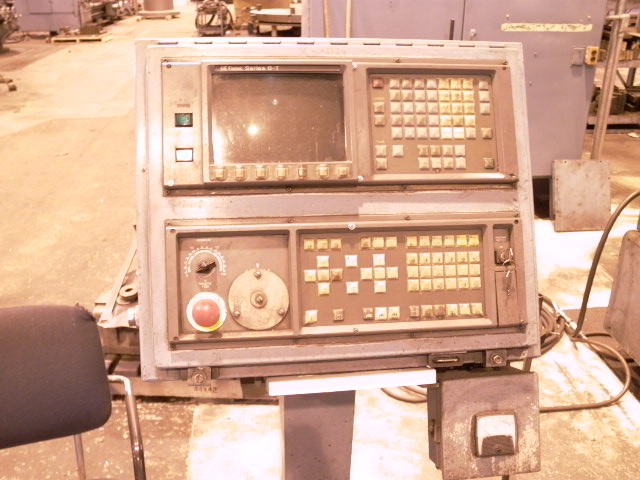

FANUC OTC CONTROL
FANUC SERVOS & DRIVES
CNC THREADING

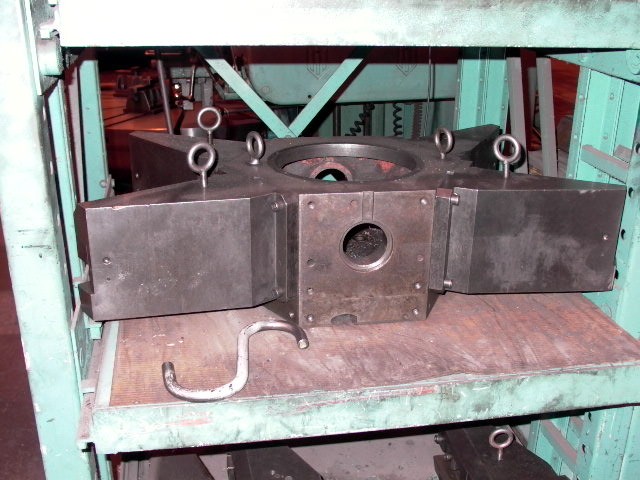

6 POSITION TURRET
4 POSITION TURRET
VARIOUS TOOLHOLDERS
HEAVY DUTY TAILSTOCK WITH QUILL & AIR ASSIST
FULL LENGTH CHIP CONVEYOR
VARIOUS MANUALS
VIDEO AVAILABLE OF THE MACHINE RUNNING
