GENERAL SPECIFICATIONS:
MANUFACTURER LEBLOND
MODEL BARON 60
SERIAL # 6S-144
NEW (APPROX.) 1984
SWING OVER WAYS 27"
SWING OVER CARRIAGE 20"
CHUCK SIZE 15"
SPINDLE NOSE A1-11
HOLE THRU SPINDLE 4.62"
TURNING LENGTH 72"
Z AXIS TRAVEL 78"
RAPID TRAVERSE RATE 400 IPM
DESIGN 60 DEG. SLANT BED
RPM RANGE (3 RANGES) 30-2500 RPM

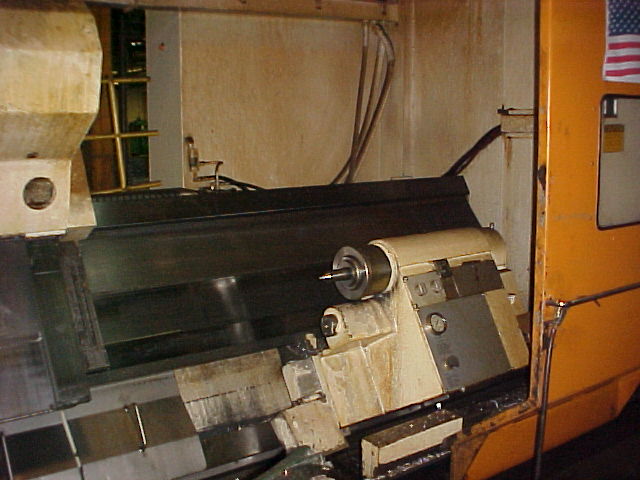

TAILSTOCK TYPE HEAVY DUTY NOT SWING AWAY
TAPER #5 MT
QUILL DIAMETER 5.25"
QUILL TRAVEL 6"
QUILL CONTROL MANUAL/CNC
TURRET POSITIONS 15
INDEX POSITIONS 10
MAIN MOTOR 60 HP
APPROX. WEIGHT 25000 LBS
DIMENSIONS 246" X 140"
EQUIPPED WITH:

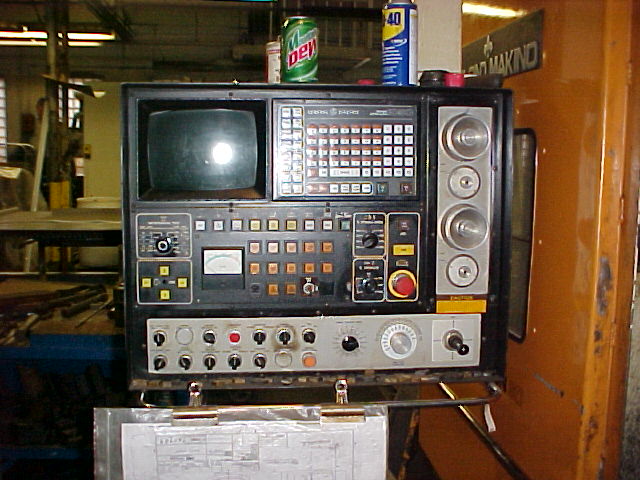

GENERAL ELECTRIC 1050 CNC CONTROL
2-AXIS SIMULTANEOUS CONTROL
ABSOLUTE INCREMENTAL PROGRAMMING
CRT DISPLAY
SMW OMNIREST STEADYREST
COOLANT SYSTEM
TRABON LUBRICATOR
CHIP CONVEYOR
TOOLHOLDERS TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
