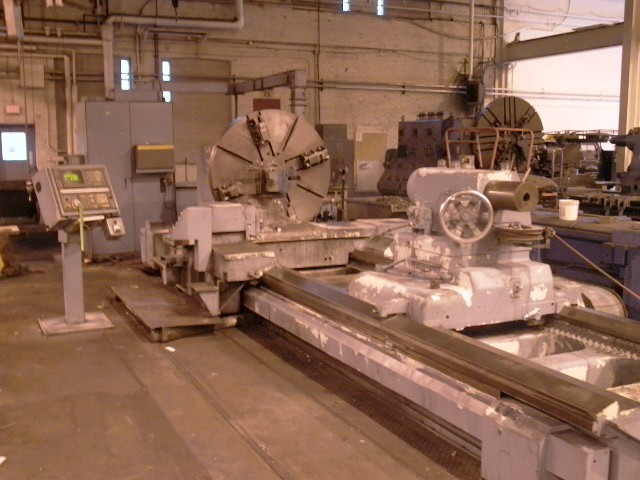

LEBLOND, 66" x 176", FANUC OT CTRL, 57-1/2" CHUCK, 40" CROSS SLIDE, 7" HOLE, 12 TURRET INDEX

GENERAL SPECIFICAITONS:
MANUFACTURER LEBLOND
MODEL TAPETURN 6640
SERIAL NUMBER TCK1WB-514
SWING OVER WAYS 66"
SWING OVER CROSS SLIDE 40"
CENTER DISTANCE 176"
MAX. SPEED 30-700 RPM
HOLE THRU SPINDLE 7"
TURRET INDEX POSITIONS 12
WEIGHT (APPROX.) 66,000 LBS.

EQUIPPED WITH:

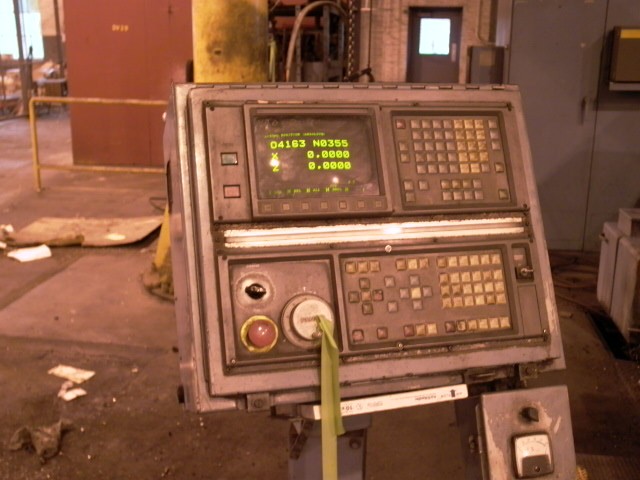

FANUC OTC CONTROL
57-1/2" CHUCK
FANUC DRIVES & MOTORS

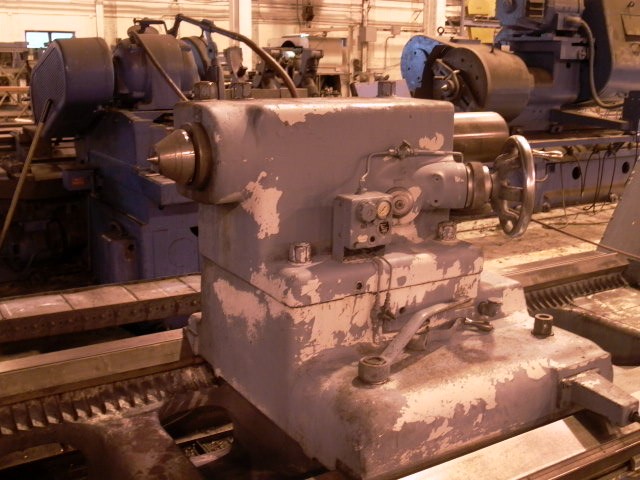

HEAVY DUTY TAILSTOCK WITH AIR ASSIST
FULL LENGTH CHIP CONVEYOR
CNC THREADING
GEARED HEADSTOCK
PROGRAMMABLE RPM
VIDEO AVAILABLE OF THE MACHINE RUNNING
