GENERAL SPECIFICATIONS:

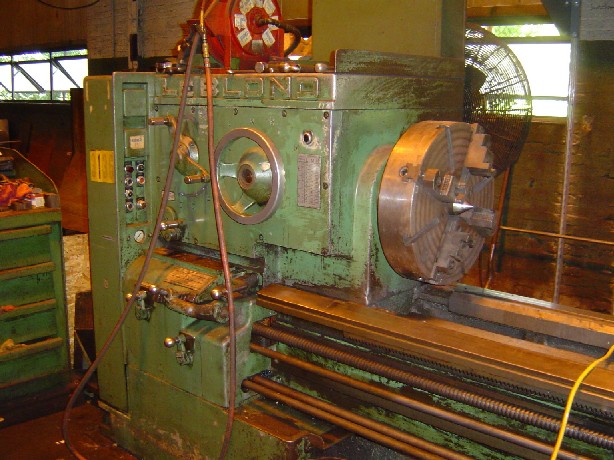

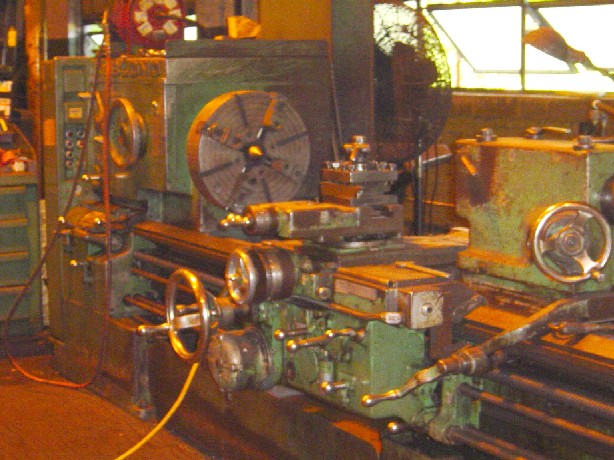

MANUFACTURER LEBLOND
MODEL 2516 NF
SERIAL # 3NFL-1297
NEW (APPROX.) 1977
SWING OVER BED 25"
SWING OVER CROSS SLIDE 16"
MAXIMUM MOTOR HP AND RPM 40 HP, 1800 RPM
DISTANCE BETWEEN CENTERS 144"
HEADSTOCK:
SPINDLE SPEEDS (NUMBER) 36
SPINDLE SPEEDS RANGE IN RPM 10 TO 1300
SPINDLE, DIAMETER OF HOLE, STRAIGHT 2 3/16"
SPINDLE, DIAMETER OF HOLE AT LARGE END OF TAPER 2 1/2"
SPINDLE NOSE, DIAMETER, LARGE END OF TAPER 5 1/4"
SPINDLE NOSE STANDARD TAPER KEY DRIVE L-2
SPINDLE SIZE OF CENTER #5 MORSE
HEADSTOCK LENGTH ON BED 38 1/8"
TAISTOCK:
SPINDLE DIAMETER 5 1/2"
SIZE OF CENTER #5 MORSE
SPINDLE TRAVEL 13
LENGTH ON WAYS 18 3/4"
BED:
LENGTH 18'6"
WIDTH 22 3/4"
DEPTH 17"
CARRIAGE AND COMPOUND REST:
LENGTH ON WAYS 35 1/4'
BEARING SURFACE 227"
BRIDGE WIDTH 10 3/4"
CROSS SLIDE TRAVEL, WITHOUT TAPER ATTACHMENT 14"
CROSS SLIDE TRAVEL, WITH TAPER ATTACHMENT 14"
COMPOUND REST TRAVEL 5"
CARRIAGE RATE OF RAPID TRAVERSE 28 4/2"
CROSS SLIDE RATE OF RAPID TRAVERSE 4 1/3"
TEE-SLOT SURFACE TO CENTER OF SPINDLE 2 7/16"
SIZE OF TOOL 3/4" X 1 1/2"
FEED AND THREADS:
FEEDS AND THREAD CHANGES 60
FEEDS STANDARD RANGE .0045" TO .269"
THREADS PER INCH, STANDARD RANGE 1 TO 60
LEAD SCREW DIAMETER AND THREADS PER INCH 1 5/8" - 2
STEADY REST CAPACITY:
IRON BODY WITH ROLLER JAWS #1 1" TO 8 1/2"
IRON BODY WITH ROLLER JAWS #2 8 1/2" TO 16"
TAPER ATTACHMENT:
TAPER ATTACHMENT TRAVEL 26"
MAXIMUM TAPER - INCHES PER FOOT 6 1/2"
TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
