GENERAL SPECIFICATIONS:
MANUFACTURER.................. LAPOINTE
MODEL......................... 3L
NOMINAL PULLING CAPACITY...... 31,400 LBS
PEAK PULLING CAPACITY......... 37,680 LBS
MAX CUTTING SPEED............. 24 FPM VARIABLE
MAX RETURN SPEED.............. 120 FPM VARIABLE
MAX STROKE.................... 52"
MAX LENGTH OF BROACH.......... 56"
DIAMETER OF HOLE.............. 5"

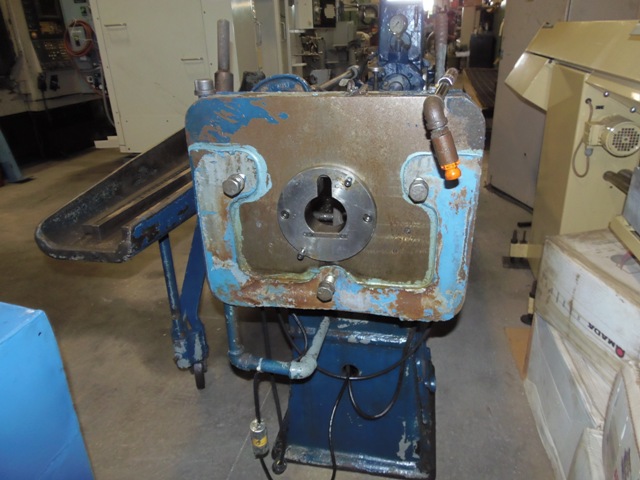

SIZE OF FACE PLATE............ 25 X 16.5"
DISTANCE BETWEEN WAYS......... 6"
MAIN MOTOR.................... 10HP
HYDRAULIC OIL CAPACITY........ 25 GAL.
FLOOR SPACE (APPROX).......... 26" X 166"
WEIGHT (APPROX)............... 7500
EQUIPPED WITH:
RECEIVER ATTACHMENT
