Specifications
Equipped With
GENERAL SPECIFICATIONS:

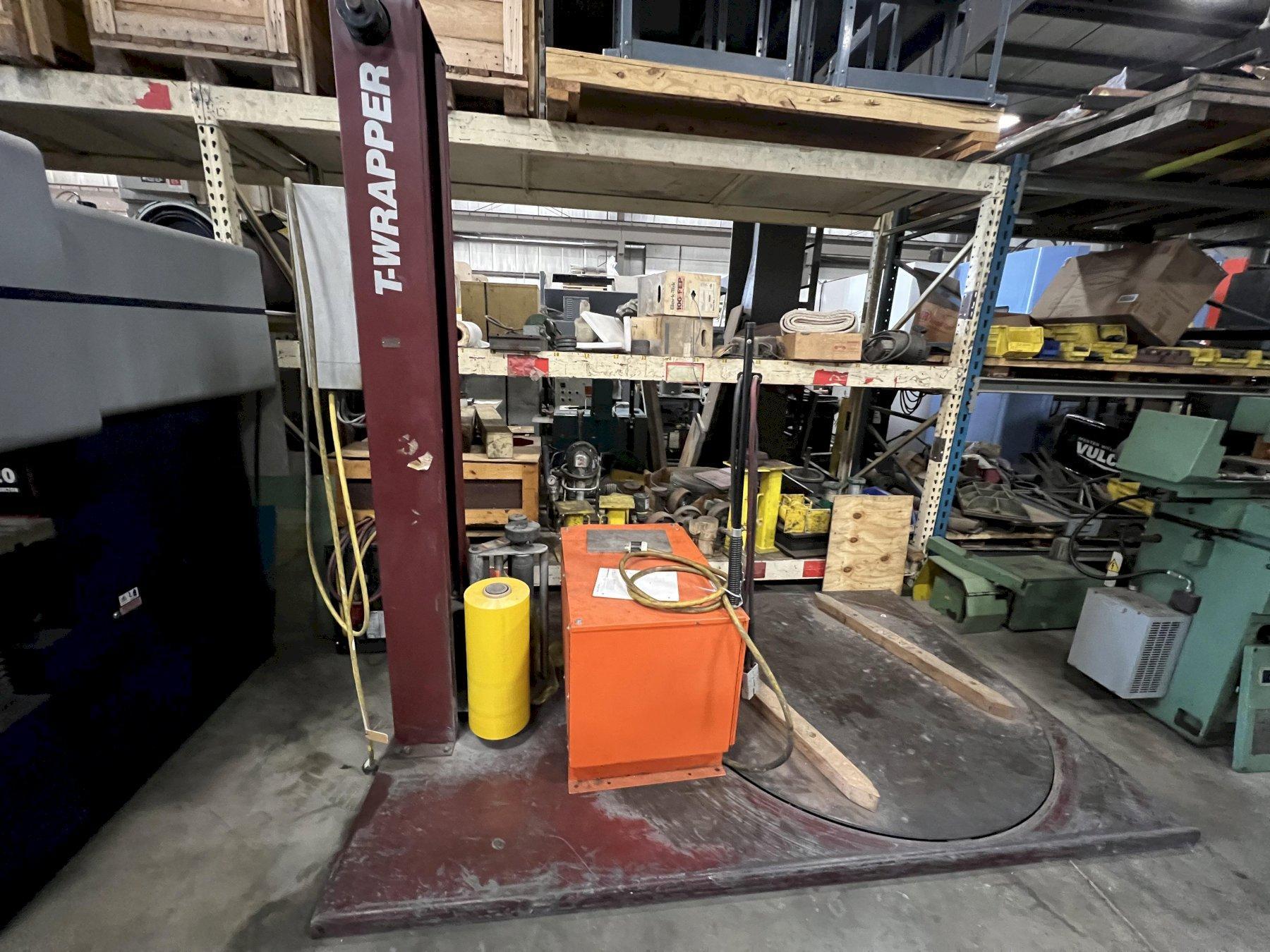

MANUFACTURER................... LANTECH

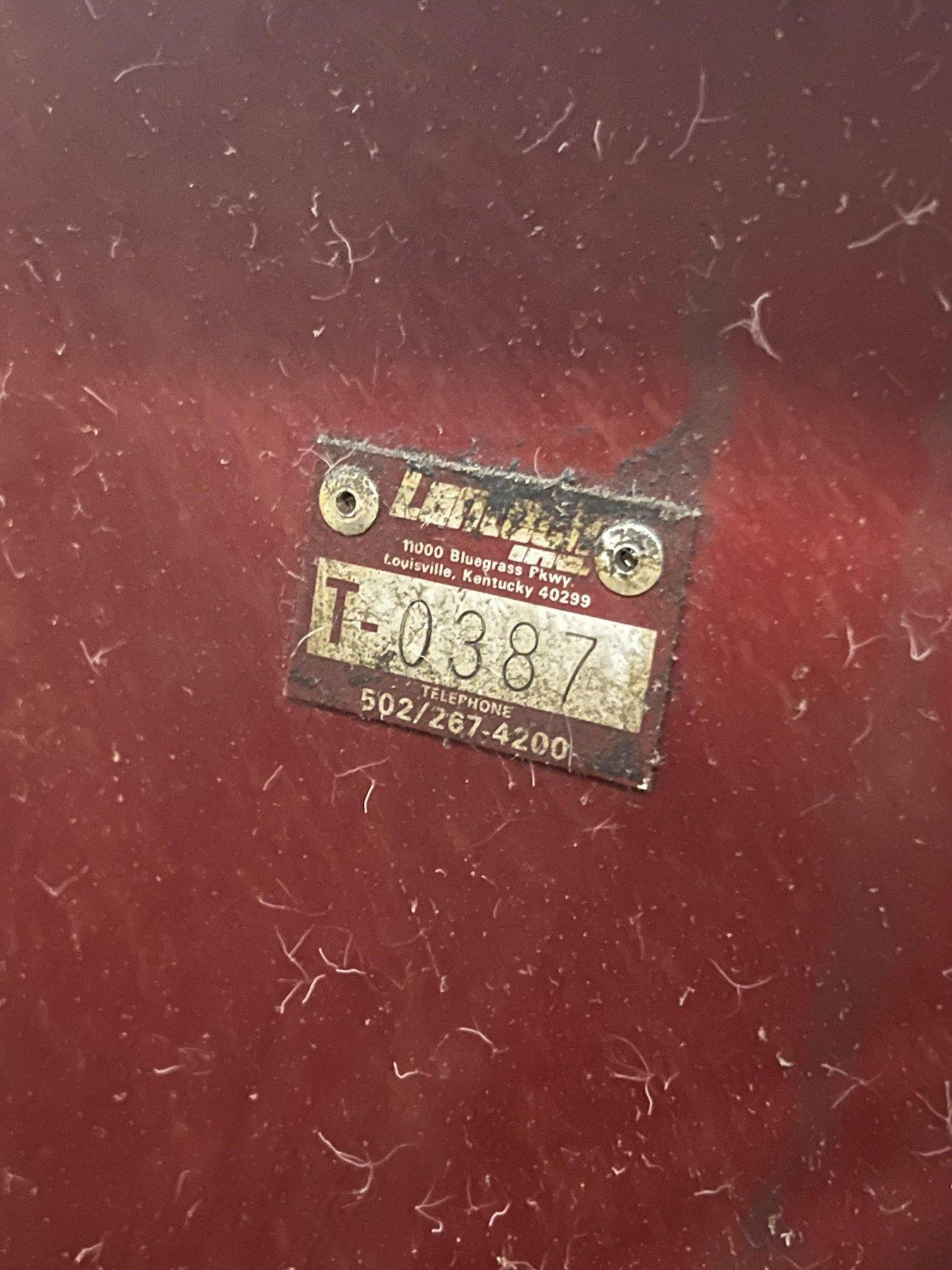

SERIAL NUMBER.................. T-0387
PRODUCTION SPEED............... SPIRAL 5 - 10 LOADS PER HOUR
LOAD HANDLING SYSTEM
MAX. LOAD WEIGHT............ 3500 LBS
MAX. LOAD SIZE.............. 48" X 48" X 80" H
TURNTABLE HEIGHT............ 2.75" FROM FLOOR

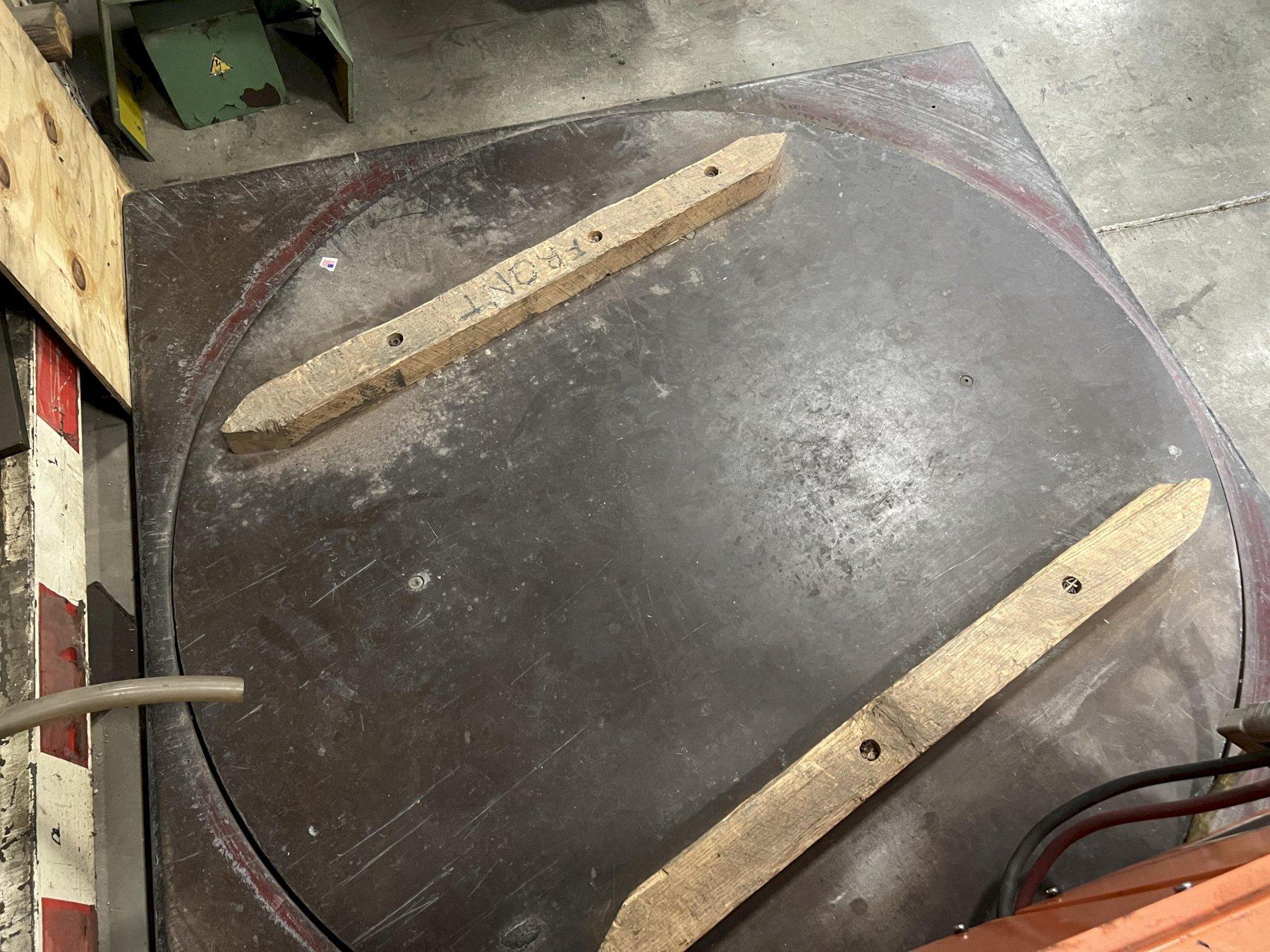

TURNTABLE SPECIFICATION..... 60" DIA. 3/8" PLATE

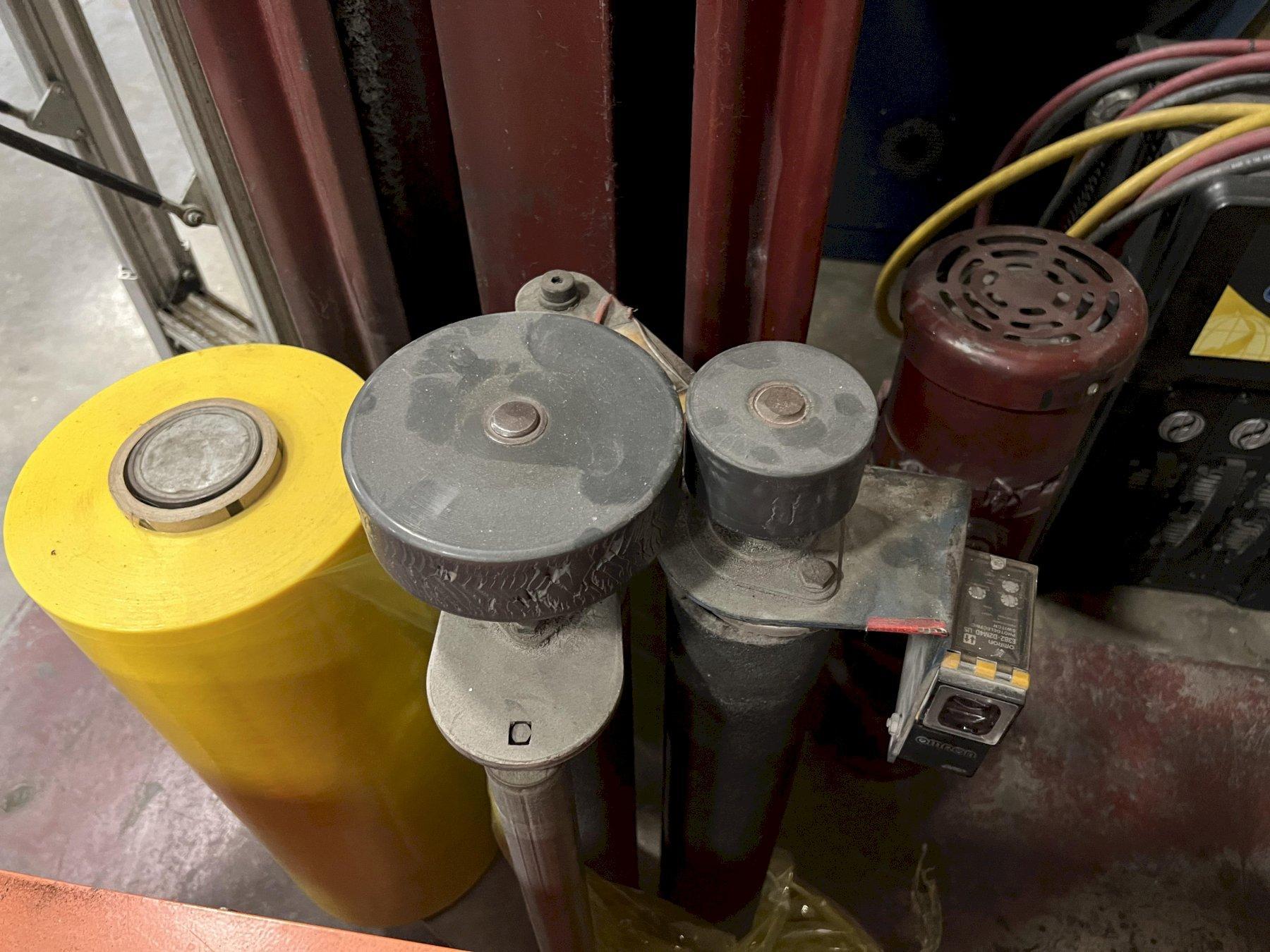

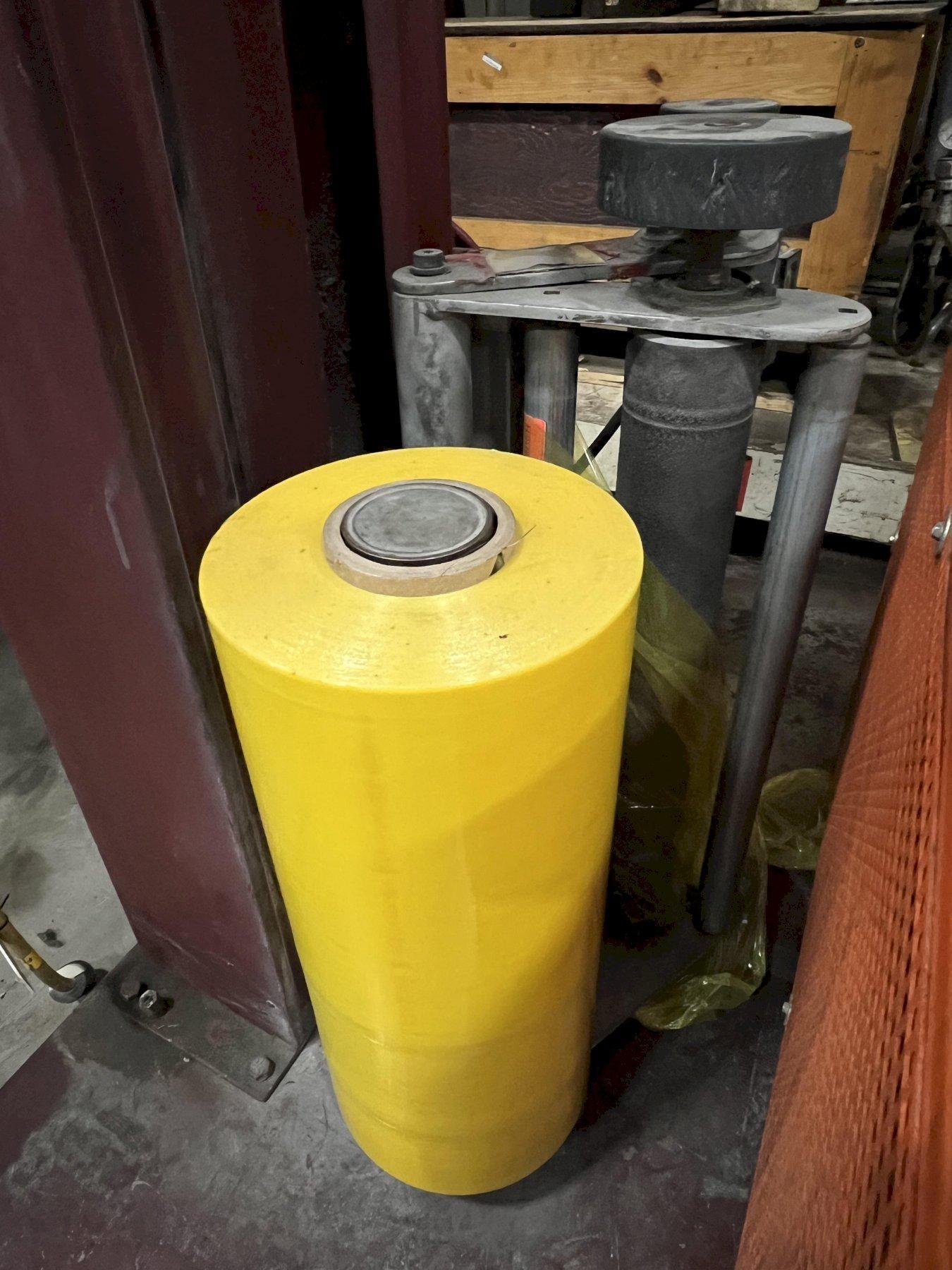

FILM DELIVERY SYSTEM
SPIRAL...................... ROLLER STRETCH
FILM COMPATIBILITY.......... ALL COMMERCIAL STRETCH FILMS
FILM TENSION................ FILM ROLL DIAMETER COMPENSATION
FILM CAPACITY.................. 9.5" DIA. X 20" WIDTH
MACHINE SIZE................... 60" X 104" X 90"
SHIPPING WEIGHT................ 1600 LBS
EQUIPPED WITH:

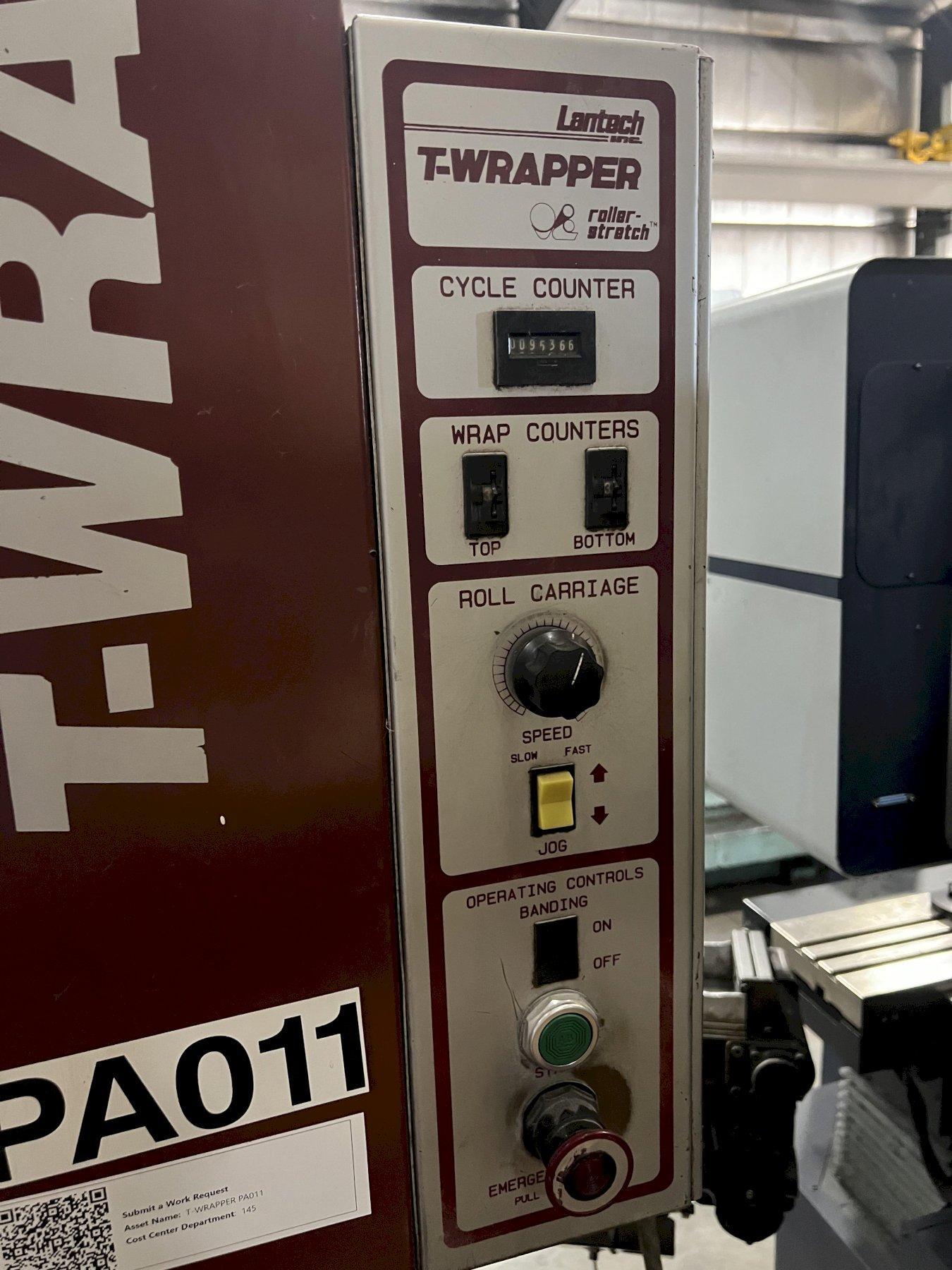

VARIABLE SPEED CHAIN DRIVER ROLL CARRIAGE, AUTOMATIC WRAP HEIGHT SENSING, JOG UP/DOWN CONTROL, TOP/BOTTOM SOLID STATE WRAP COUNTERS, PALLET CYCLE COUNTER
110 VOLTS

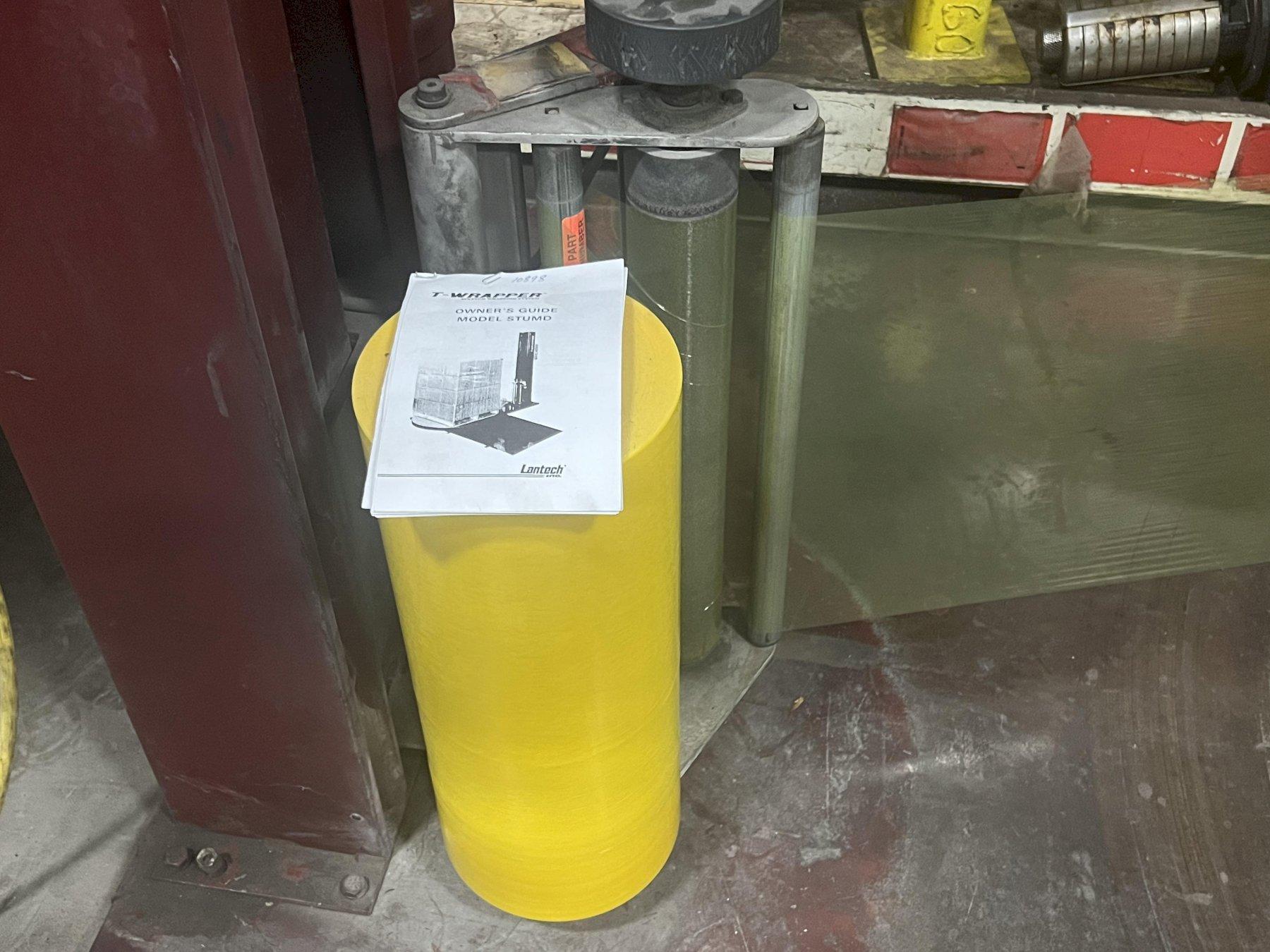

MISC. MANUALS
