Specifications
Equipped With

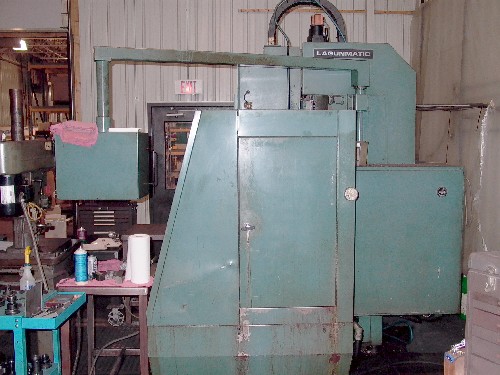

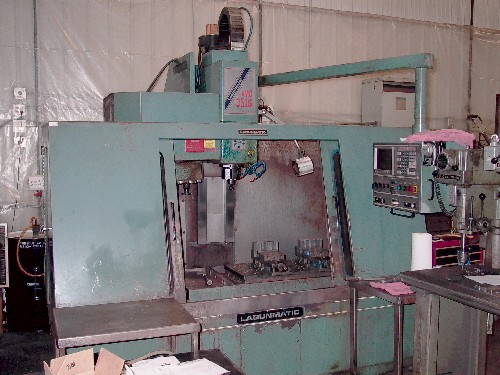

Manufacturer.........Lagunmatic
Model No.............VMC 3516
X-axis travel 24"
Y-axis travel 16"
Z-axis travel 20"
Max. load (uniform distribution) 2,000 lbs.
Table:
Table size (X x Y) 43.3" x 23.6"
Table clamping area 35-1/2" x 15-3/4"
Table center to column (min./max.) 7-3/4" x 23-2/3"
Table top to floor 29-1/2" (7"
Spindle Head:
Motor (peak) 15HP
Motor (30min. rating, 50%ED) 10HP
Spindle speed (rpm) 5000
Taper CV#40

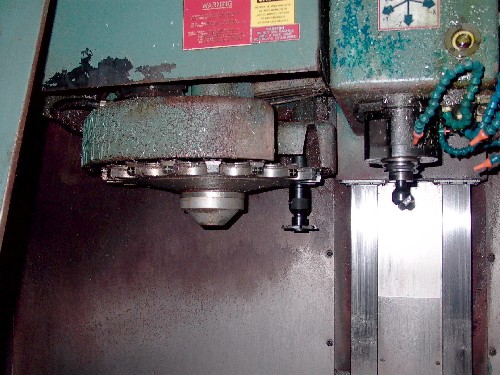

Automatic Tool Changer:
Tool storage capacity umbrella type 18
Tool selection Random/bi-directional
Max. tool weight 15 lbs.
Max. tool length 12"
Rapid traverse (X & Y) 500 ipm
Shipping weight 11,000 LBS
EQUIPPED WITH:
DYNAPATH AUTOCON CONTROL
RIGID TAPPING
UNDER POWER IN SHOP
