Specifications
Equipped With
GENERAL SPECIFICATIONS:
NEW APPROXIMATELY 1990
SERIAL # 90-8-3750
CUTTING WIDTH 159"
CUTTING TABLE HEIGHT 28"
SPEED RANGE GAS 0 - 50 IPM
SPEED RANGE PLASMA 0 - 300 IPM
# OF OXY TORCHES 4
# OF PLASMA TORCHES 1
BEAM LENGTH 16'5"
RAIL TO RAIL 15'4"
LENGTH OF TRACK (8'& 16') 24'
EQUIPPED WITH:

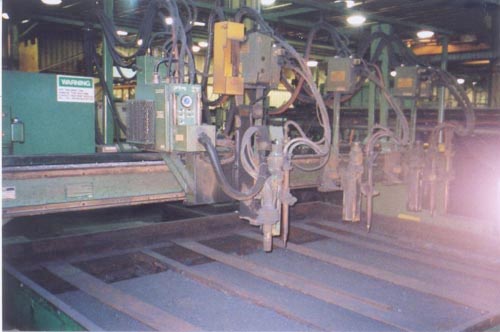

4 OXY TORCHES
1 PLASMA TORCH
600 AMP PLASMA POWER SUPPLY LINDE PH-601

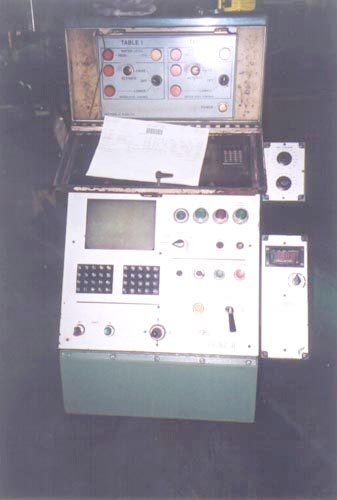

L-TECH UCNC 8 CONTROL
AUTOMATIC HEIGHT CONTROL, CRT DISPLAY, TAPE READER, JOYSTICK, PREHEAT TIMER STOP
RUGGED DUAL-DRIVE
HEAVY-DUTY POSITIVE RACK AND PINION DRIVES
HIGH SPEED CONTOURING WITH AUTO PLASMA CORNERING COMP.
NO WATER TABLES
