Specifications
Equipped With
GENERAL SPECIFICATIONS:

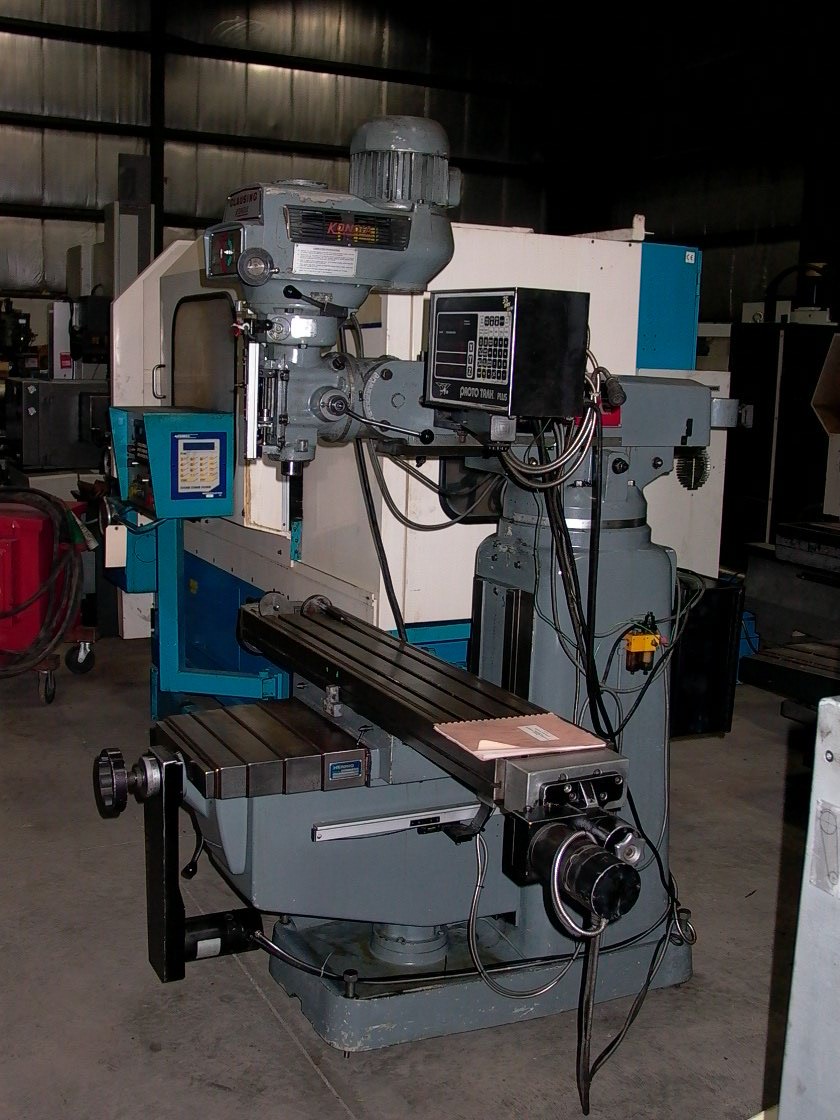

MANUFACTURER........................ KONDIA/CLAUSING
MODEL............................... FV300
SERIAL # ........................... Z 393
NEW (APPROX.)....................... 1993

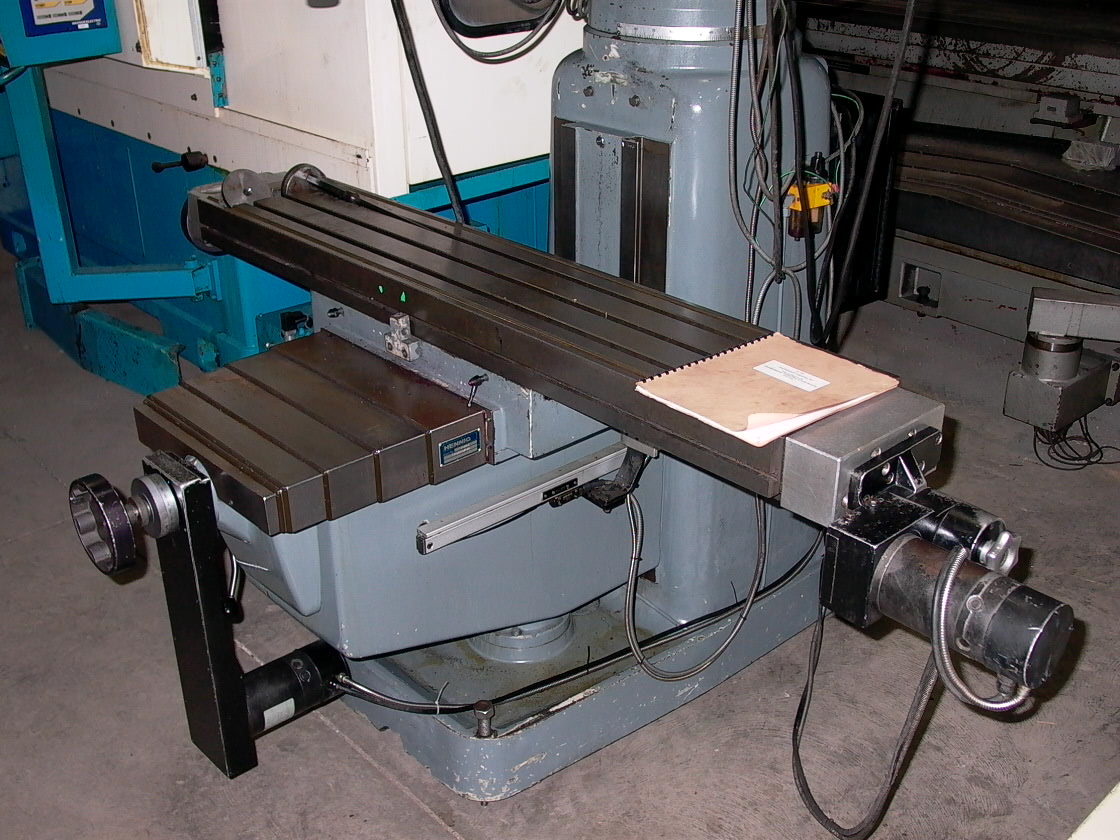

TABLE SIZE.......................... 11" x 58"
TRAVEL (X)......................... 34"
TRAVEL (Y)......................... 15.5"
TRAVEL (KNEE)...................... 15"
TRAVEL (QUILL).....................5"
TRAVEK (RAM)....................... 14"

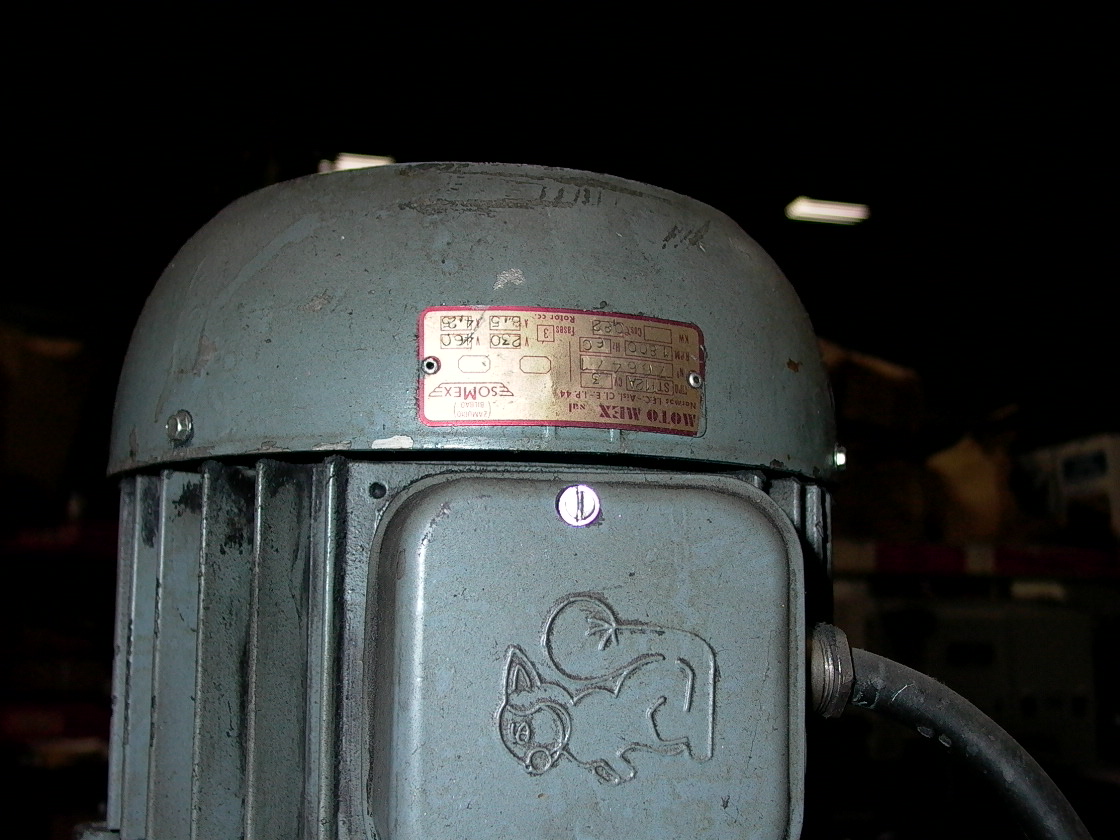

SPINDLE MOTOR.......................3 HP
SPINDLE TAPER ...................... R8

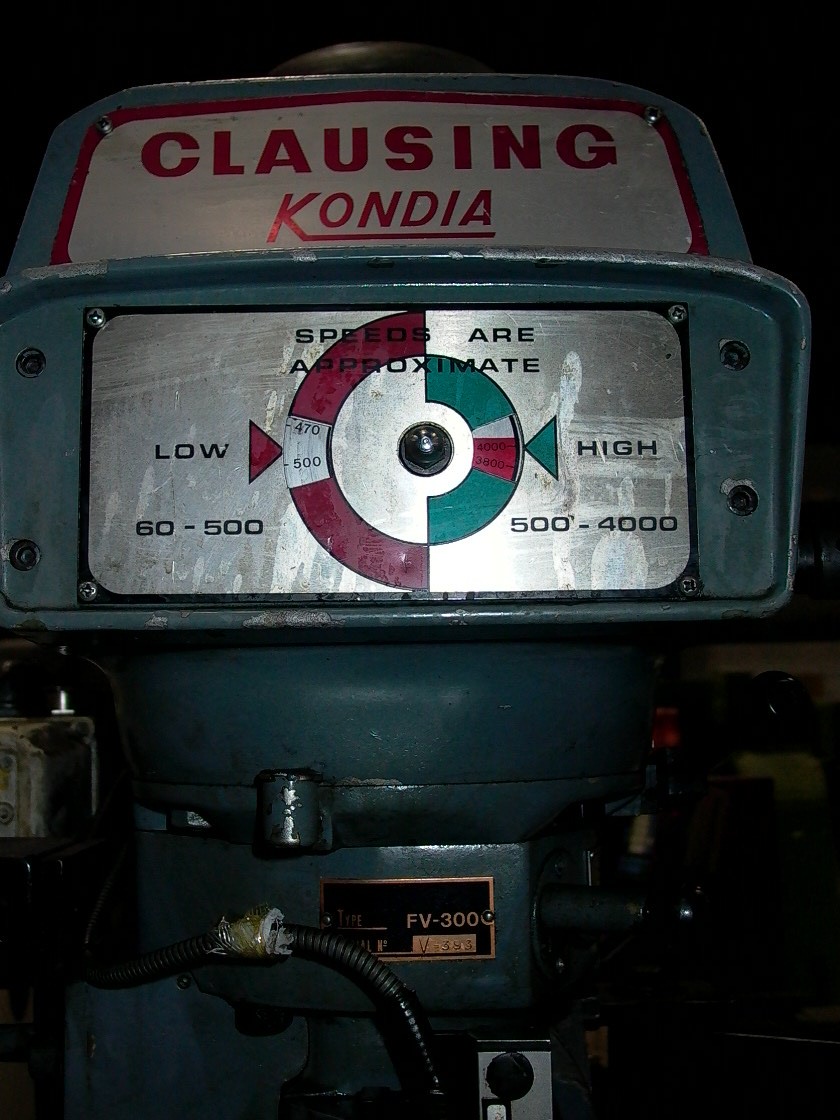

SPINDLE SPEED....................... 60-4000 RPM
CONTROLLED AXIS .................... 2
WEIGHT (APPROX.).................... 3,700 LBS.
EQUIPPED WITH:

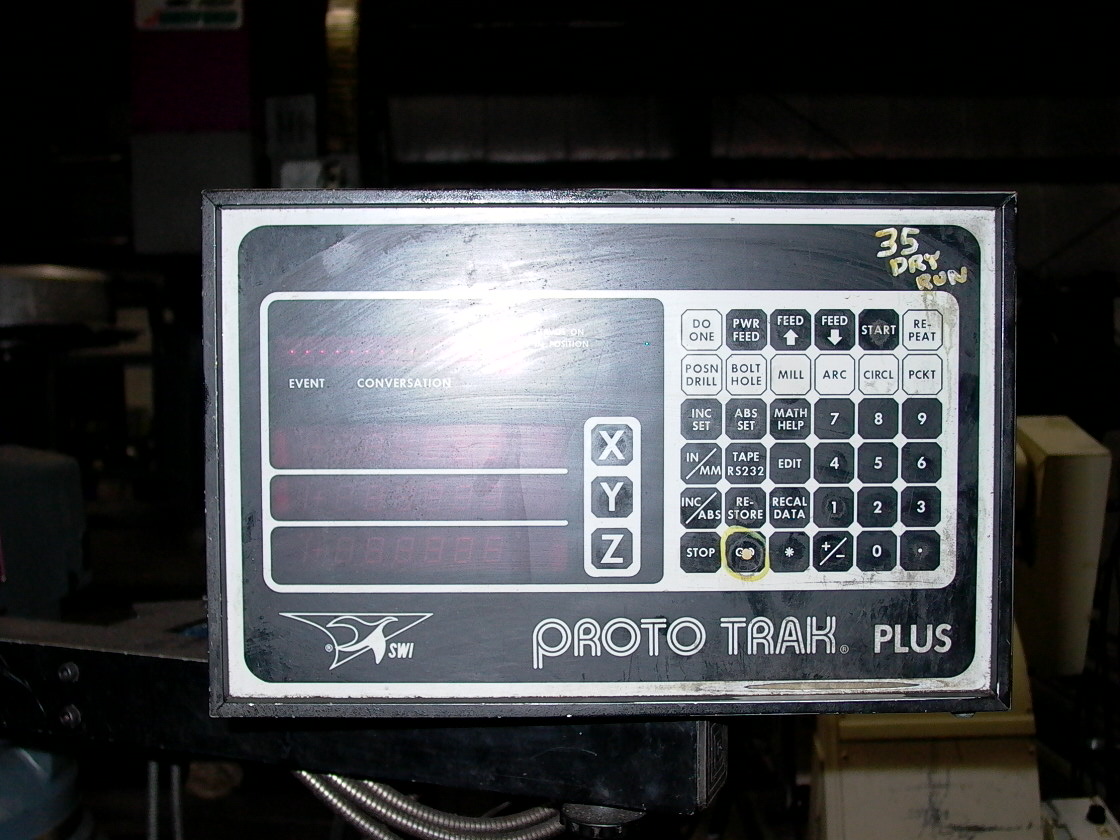

PROTO TRAC PLUS CNC CONTROL
WAY COVERS
TEMPORARY
SPECIFICATIONS SUBJECT TO VERIFICATION
