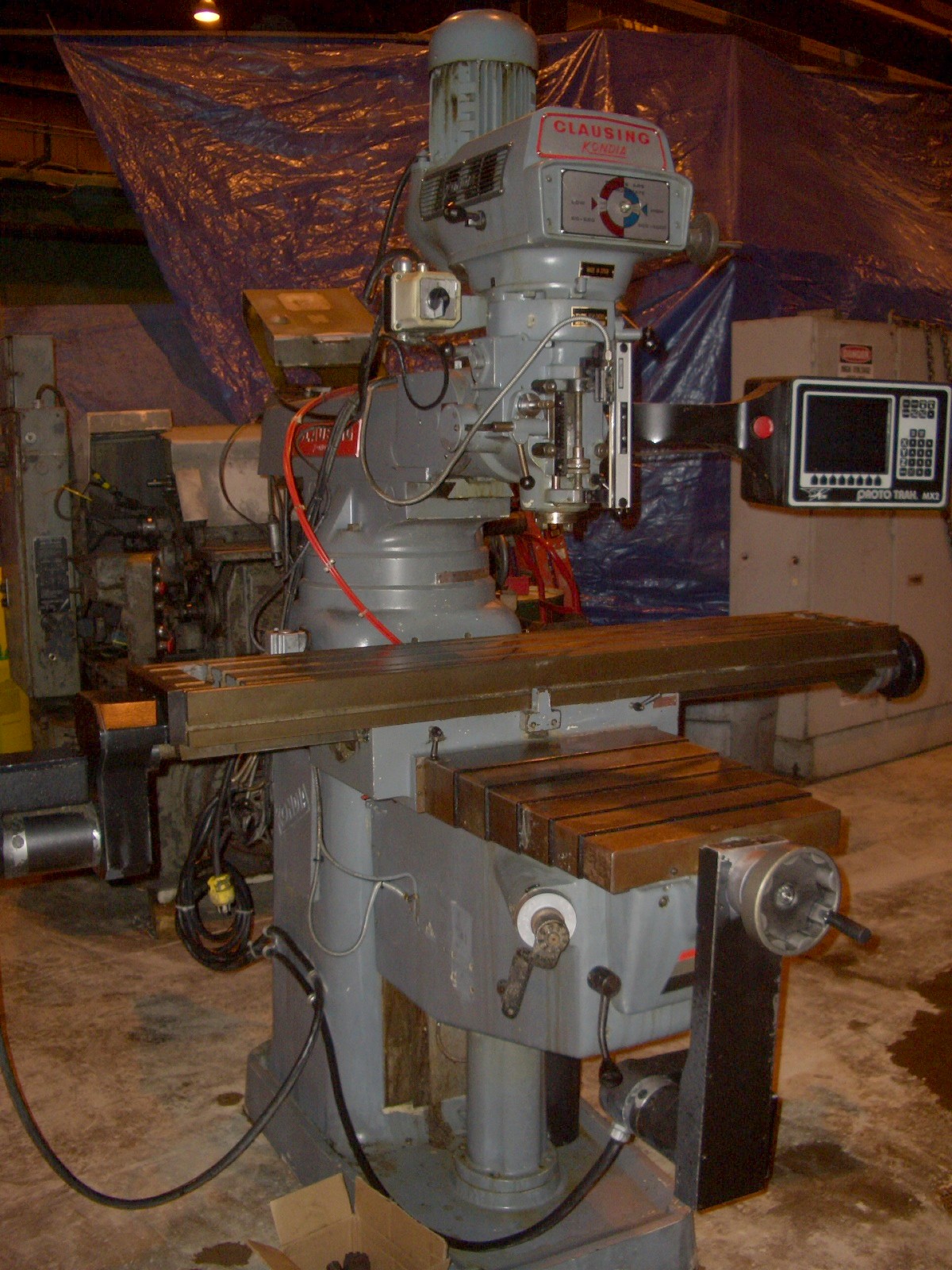

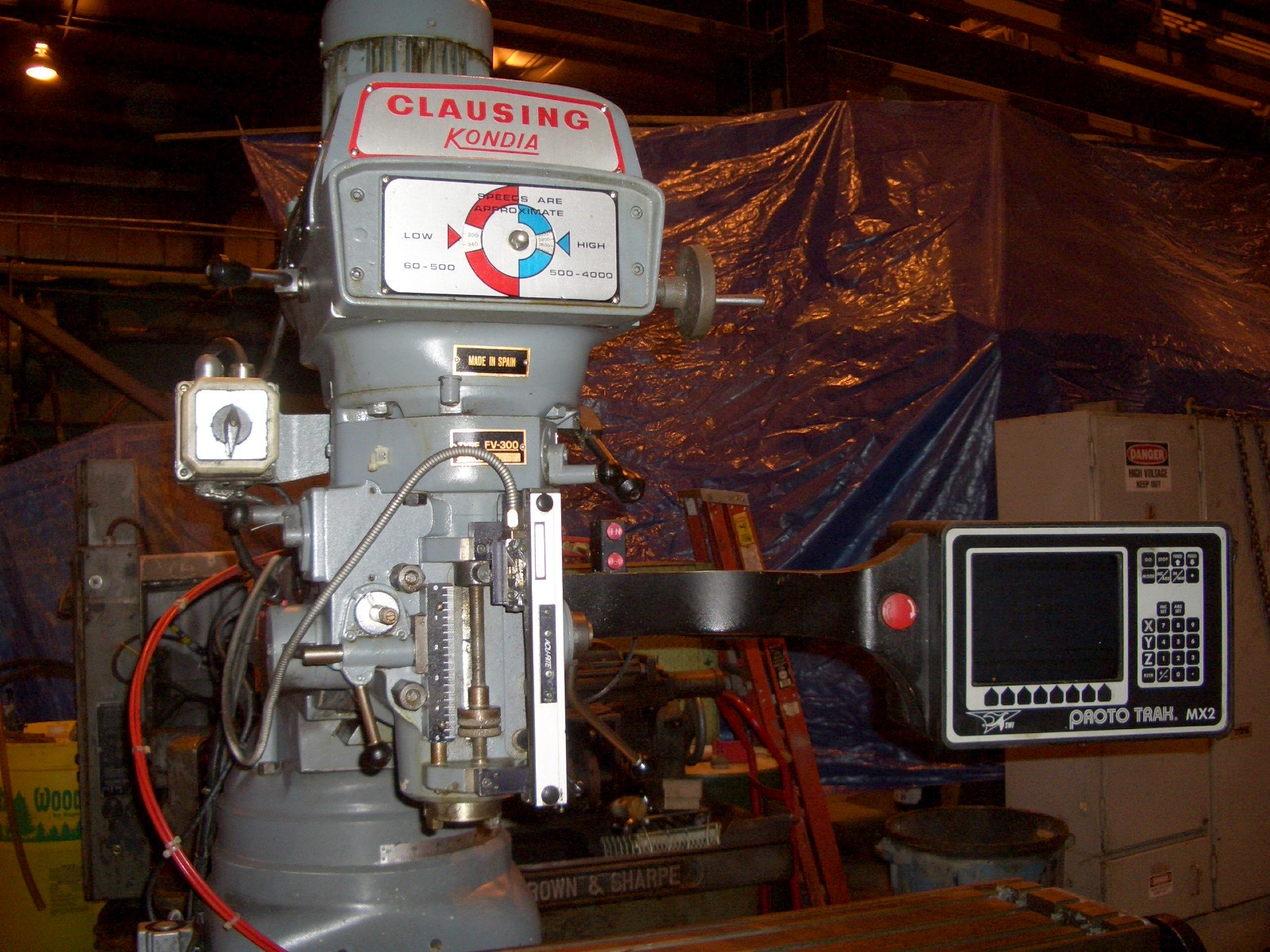

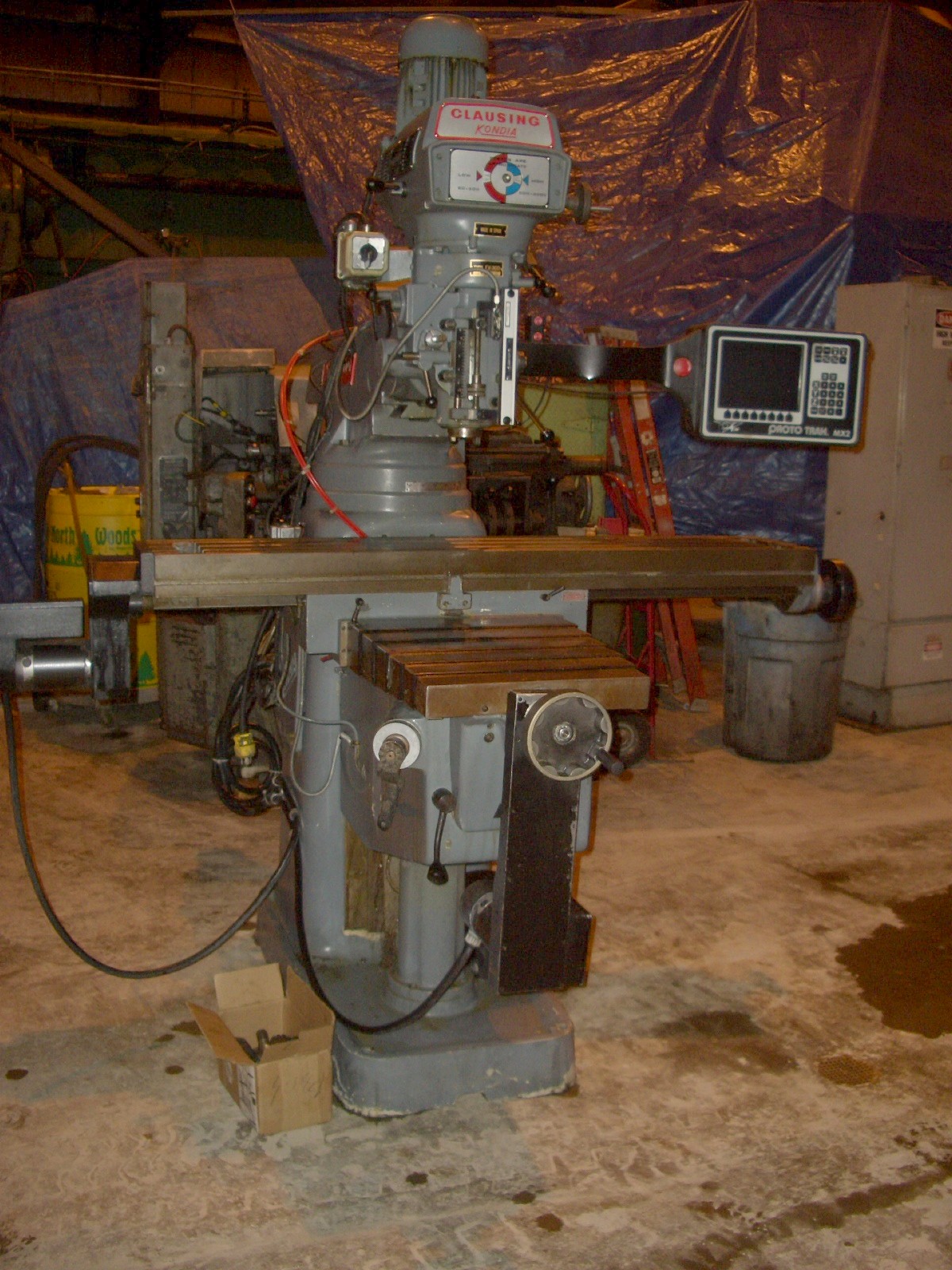

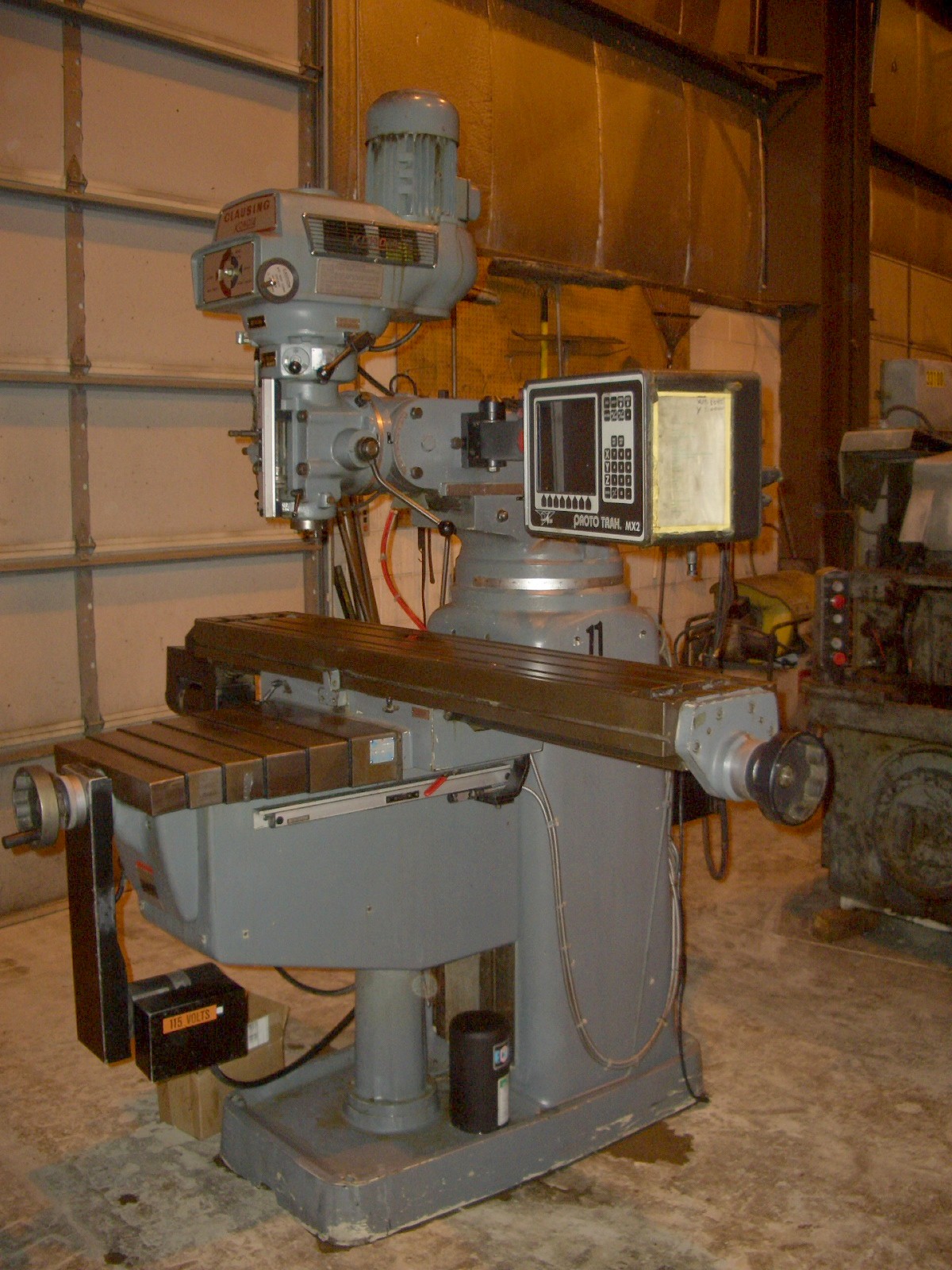

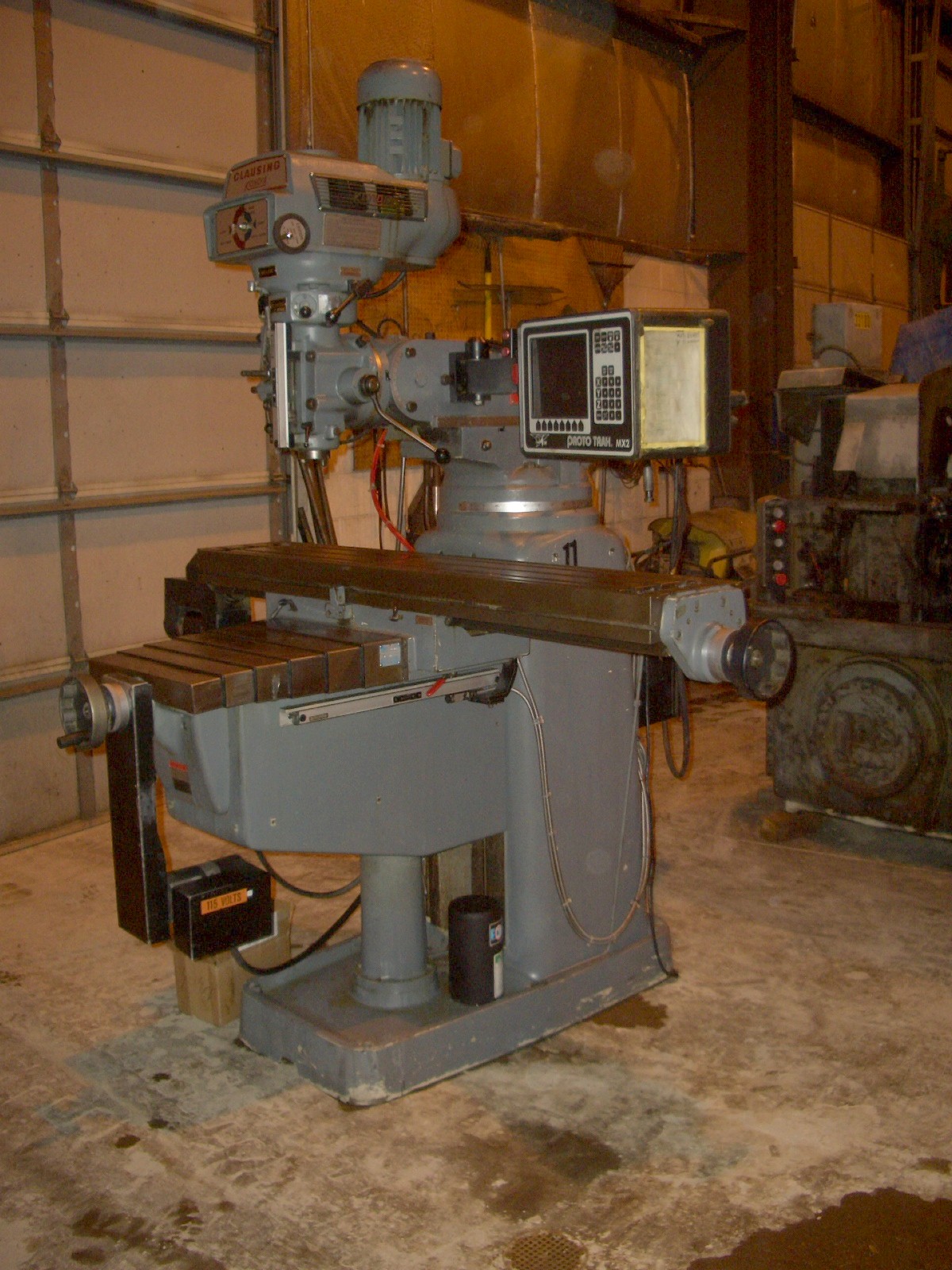

KONDIA CLAUSING FV300 MILL, CNC PROTO TRAC MX-2, 11 X 58 TABLE, 4HP, 4000 RPM, 1994

GENERAL SPECIFICATIONS:
MANUFACTURER KONDIA/CLAUSING
MODEL FV300
SERIAL # Y479
NEW (APPROX.) 1994
TABLE SIZE 11" x 58"
TRAVEL (X) 34"
TRAVEL (Y) 15.5"
TRAVEL (KNEE) 15"
TRAVEL (QUILL) 5"
TRAVEK (RAM) 14"
SPINDLE MOTOR 4 HP
SPINDLE TAPER ISO 30
SPINDLE SPEED 60-4000 RPM
CONTROLLED AXIS 2
WEIGHT (APPROX.) 3,700 LBS.

EQUIPPED WITH:
PROTO TRAC MX-2 CNC CONTROL
WAY COVERS
SOME TOOLING TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
