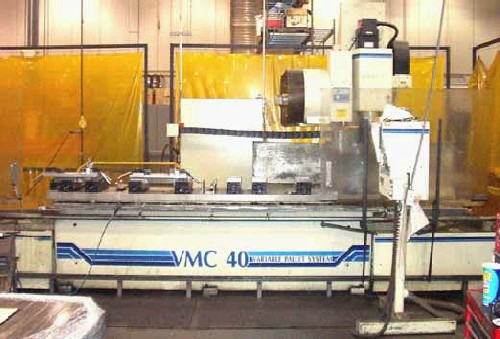

Specifications
Equipped With
GENERAL SPECIFICATIONS:
TABLE SIZE 144.0" x 24.0"
MAXIMUM TABLE LOAD UNLIMITED
SPINDLE NOSE TO TABLE TOP 3.5" - 25.5"
X AXIS TRAVEL 144"
Y AXIS TRAVEL 24"
Z AXIS TRAVEL 22"
RAPID TRAVERSE RATE X AXIS 1000 IPM
RAPID TRAVERSE RATE Y AXIS 600 IPM
RAPID TRAVERSE RATE Z AXIS 600 IPM
CUTTING FEED RATE 0.04 - 300 IPM
SPINDLE SPEEDS 20 - 6,000 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR (2 SPEED GEARED) 20 HP AC

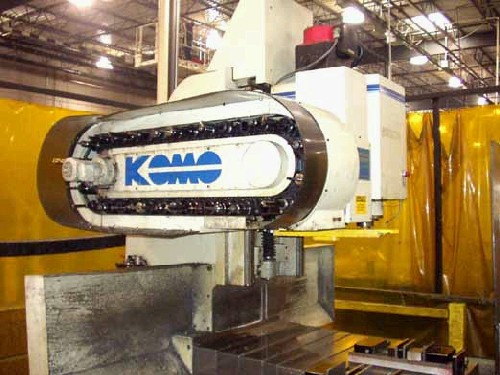

TOOL CHANGER CAPACITY 30 STATION ATC
MAXIMUM TOOL WEIGHT 17 LBS
EQUIPPED WITH:
GE FANUC 16MB CNC CONTROL WITH 9" CRT & 160M MEMORY
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
STANDARD & MIST COOLANT SYSTEMS WITH TANK & PUMP
SIDE DISHCARGE STYLE LIFT-UP TYPE CHIP CONVEYOR
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
***PER KOMO, SPINDLE UPGRADE TO 8000 RPM AVAILABLE***
