KOMO VMC-144, 3-AXIS, 10,000 RPM, 7.5 HP, CAT 40, FANUC CTRL, 144"-X, 20"-Y, 15"-Z, 1990

Brand
KOMO

Model
VMC-144

Type
Machining Centers, Vertical, (5-Axis or More)

Stock #
8051

Condition
Used

Year
1990

Request a Quote

Specifications

Equipped With

GENERAL SPECIFICATIONS:
MANUFACTURER KOMO
MODEL VMC-144
NEW (APPROX.) 1990
CROSS TRAVEL (X) 144"
VERTICAL TRAVEL (Y) 20"
LONGITUDINAL TRAVEL (Z) 15"
RAPID TRAVERSE RATE (X/Y/Z) 400 IPM
POSITIONING ACCURACY +/- 0.0005
SPINDLE SPEEDS 100 - 10,000 RPM
SPINDLE DRIVE 7.5 HP
SPINDLE TAPER CAT 40
TOOL CHANGER CAPACITY 30
DIMENSIONS (APPROX.) 242"L x 140"W x 102"H
WEIGHT (APPROX.) 23,500 LBS.

EQUIPPED WITH:

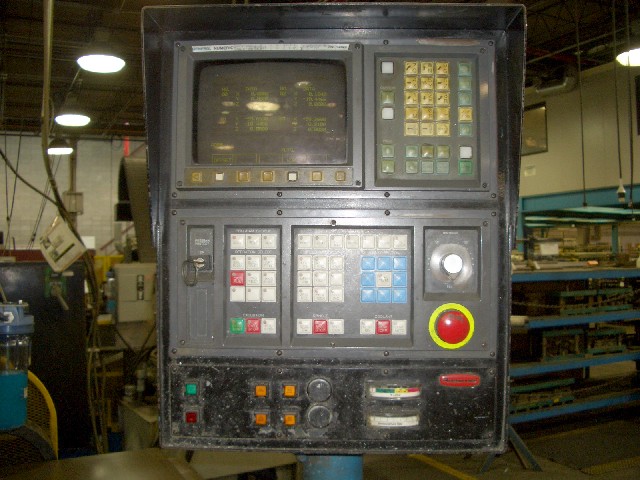

FANUC CONTROL
MIST COOLANT SYSTEM
HYDRAULIC CLAMPING
RS232
G-CODE PROGRAMMING
