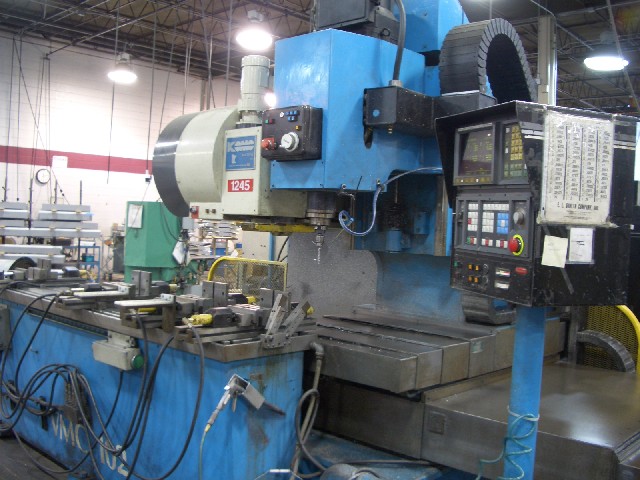

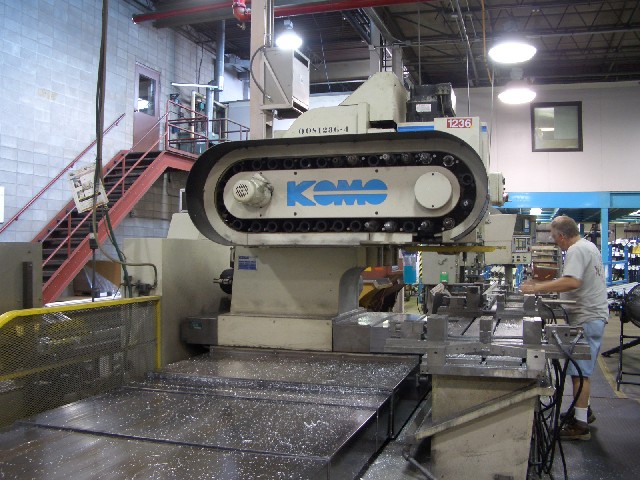

KOMO VMC-102, 3-AXIS, 10,000 RPM, 7.5 HP, CAT 40, FANUC CTRL, 102"-X, 20"-Y, 15"-Z, 1990

GENERAL SPECIFICATIONS:
MANUFACTURER KOMO
MODEL VMC-102
NEW (APPROX.) 1990
CROSS TRAVEL (X) 102"
VERTICAL TRAVEL (Y) 20"
LONGITUDINAL TRAVEL (Z) 15"
RAPID TRAVERSE RATE (X/Y/Z) 400 IPM
POSITIONING ACCURACY +/- 0.0005
SPINDLE SPEEDS 100 - 10,000 RPM
SPINDLE DRIVE 7.5 HP
SPINDLE TAPER CAT 40
TOOL CHANGER CAPACITY 30
DIMENSIONS (APPROX.) 202"L x 140"W x 102"H

EQUIPPED WITH:

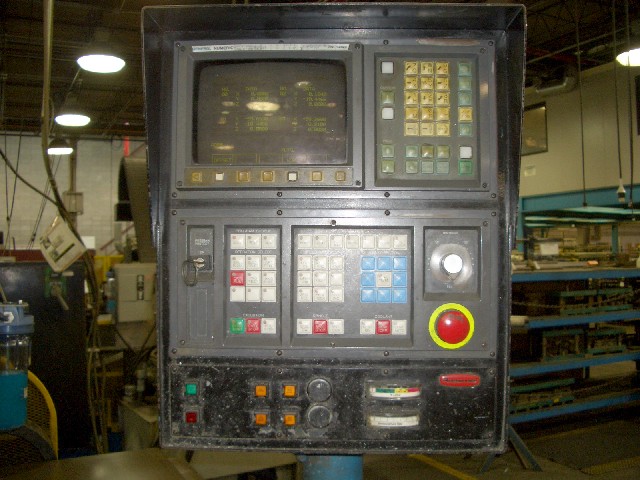

FANUC CONTROL
MIST COOLANT SYSTEM
HYDRAULIC CLAMPING
RS232
G-CODE PROGRAMMING
