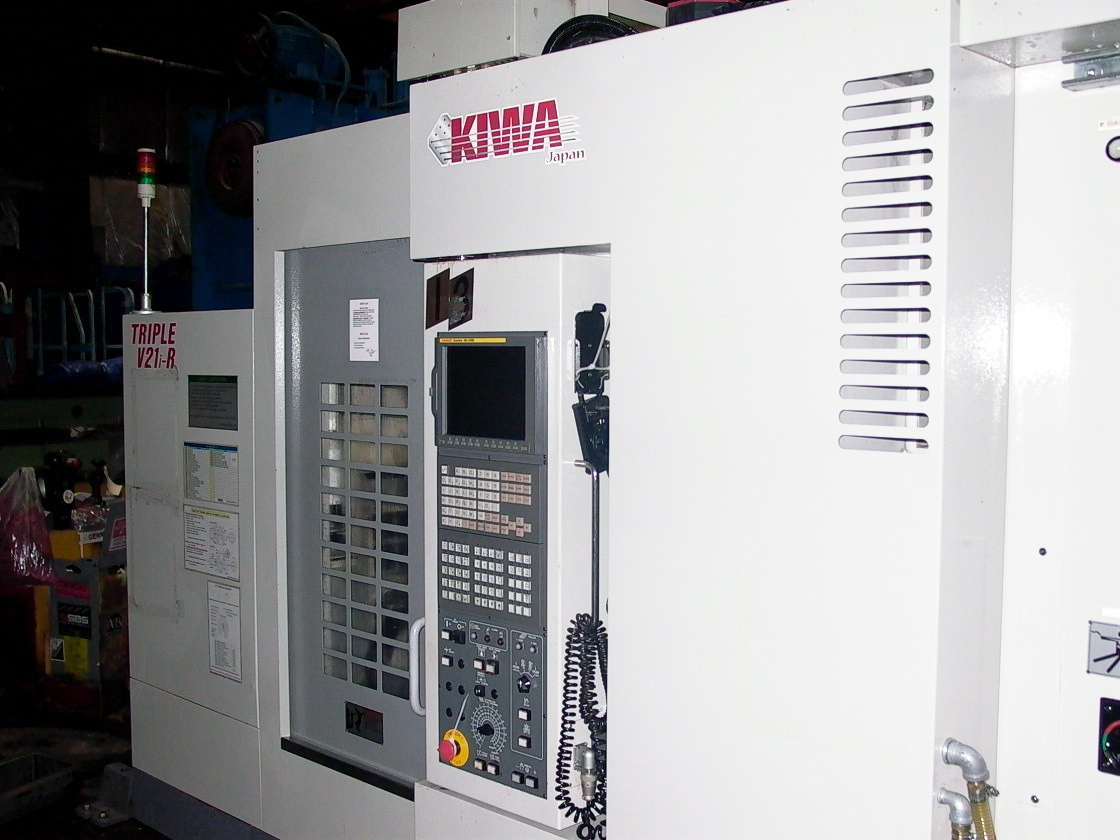

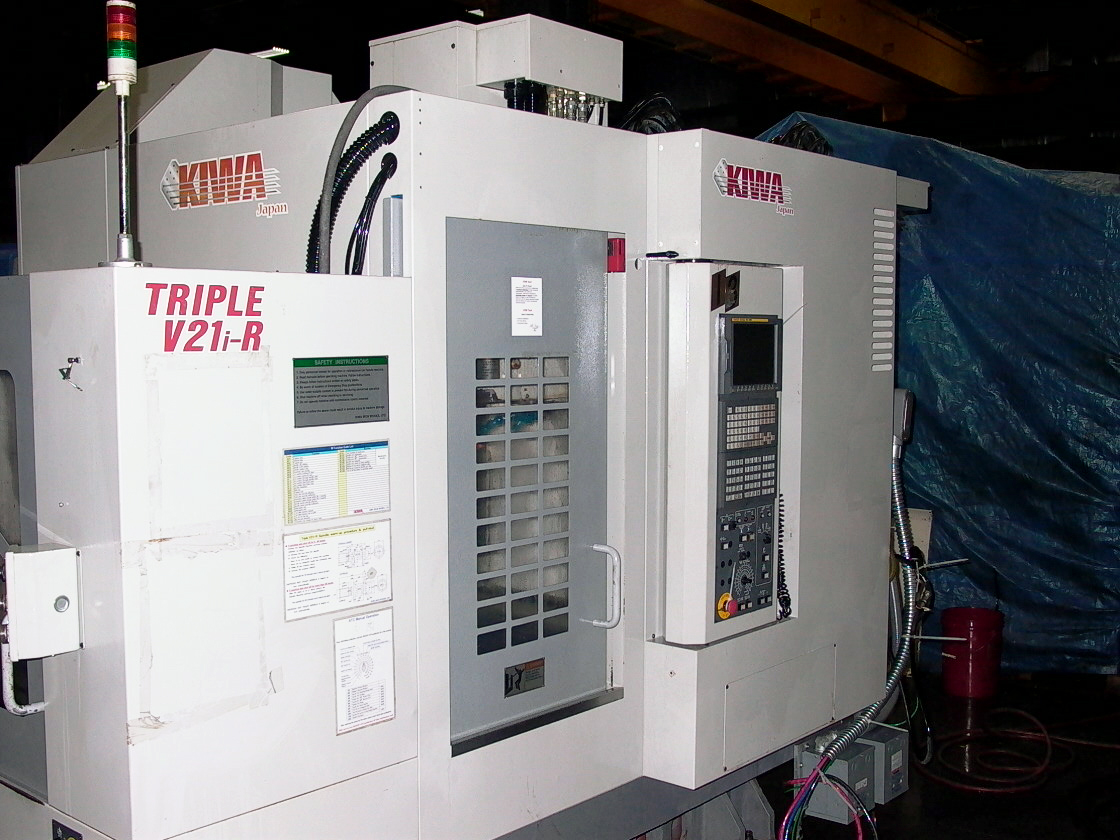

KIWA TRIPLE V21I-R, 2 PALLET SHUTTLE, FANUC 18I-MB, YUASA 4TH AXIS, 2004

GENERAL SPECIFICATIONS:

  MAKE: -- KIWA
  MODEL: -- TRIPLE V21I-R
  AGE (YEAR): -- 2004
  SERIAL NUMBER: -- KB 31096
  X TRAVEL: -- 24"  (610 MM)
  Y TRAVEL: -- 16 1/8" (410 MM)
  Z TRAVEL: -- 20 1/8" (510 MM)
  PALLET SIZE: --16 1/4" X 24 1/2" - 44 1/2"  (T-SLOT TABLES)
  NUMBER OF PALLETS: -- 2
  SPINDLE SPEED (MIN -1): -- 10,000
  SPINDLE TAPER: -- ISO 7/24 TAPER NT  NO. 40
  TYPE OF TOOL SHANK: -- MAS BT40
  NUMBER OF TOOLS: -- 24
  RAPID TRAVERSE: -- 2362.25 IN/MIN (60,000 MM/MIN) X/Y/Z
  MACHINE DIMENSIONS--132"F-B X 96"L-R X 104"H


EQUIPPED WITH:

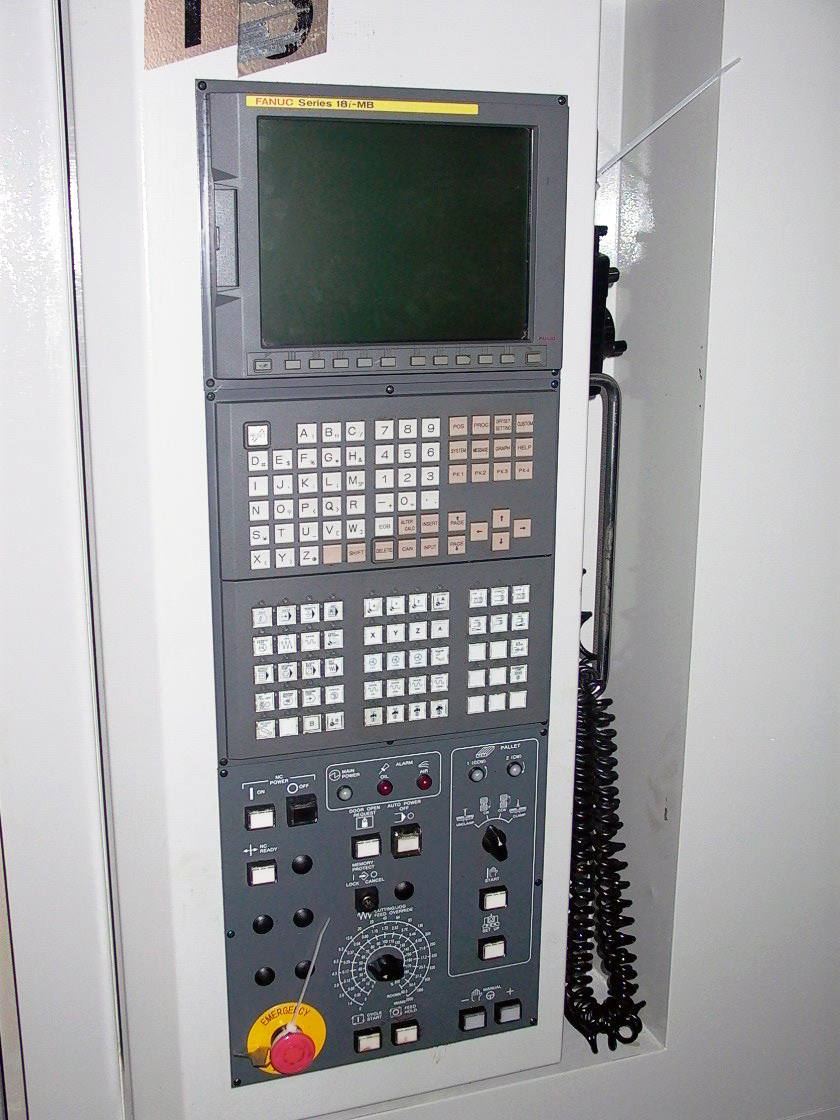

  FANUC 18I-MB CONTROLS

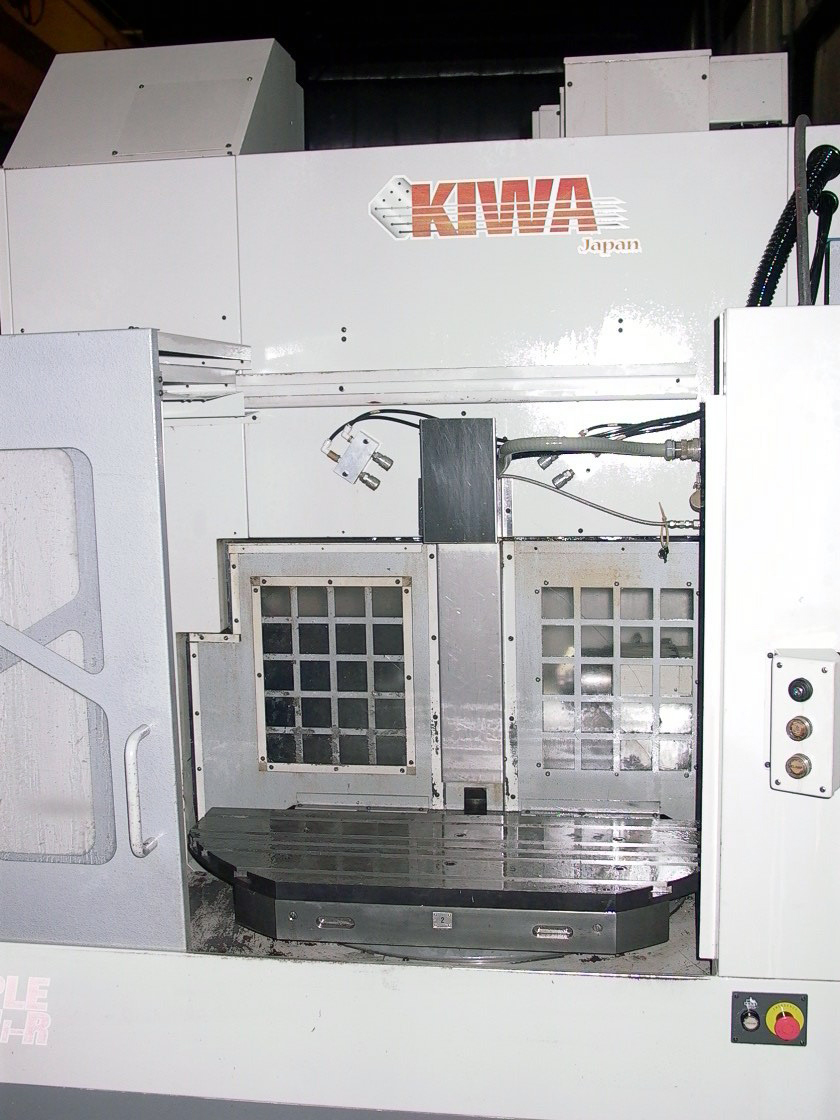

  DUAL PALLET SYSTEM

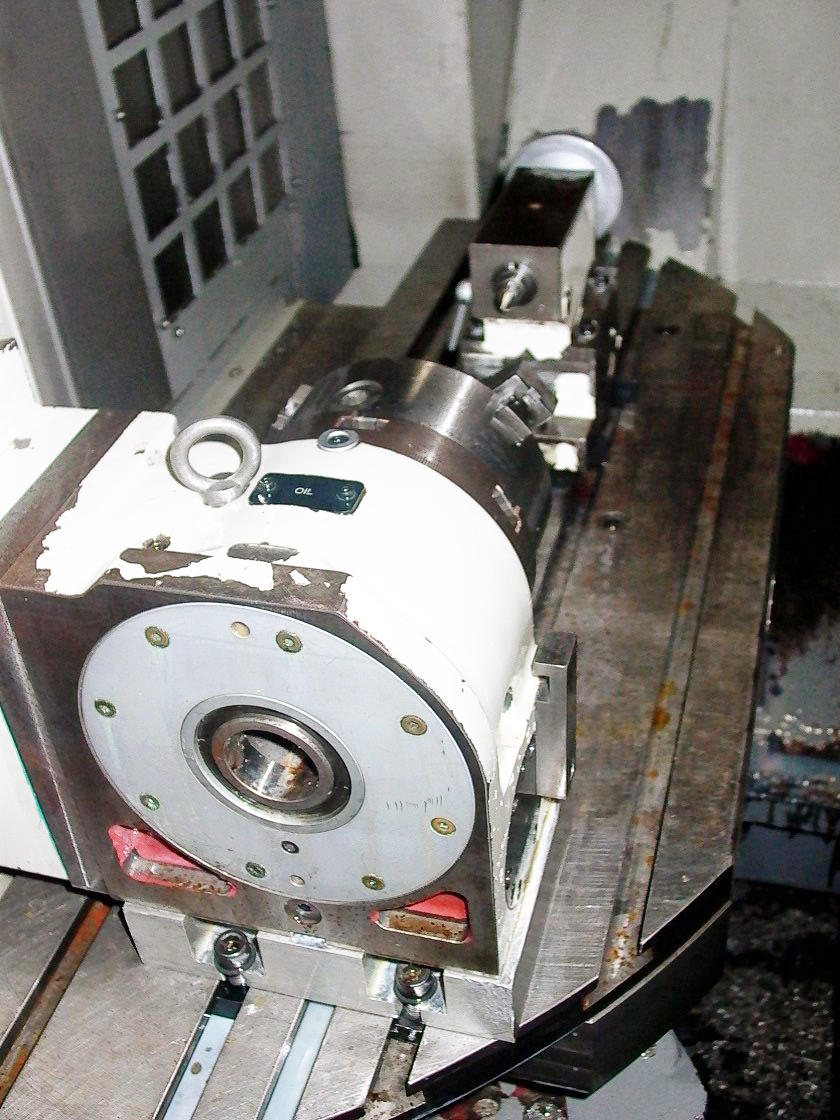

  YUASA 4TH AXIS
  16" X 44.5" T SLOT TABLE
  TURBO SYSTEMS CHIP CONVEYOR
