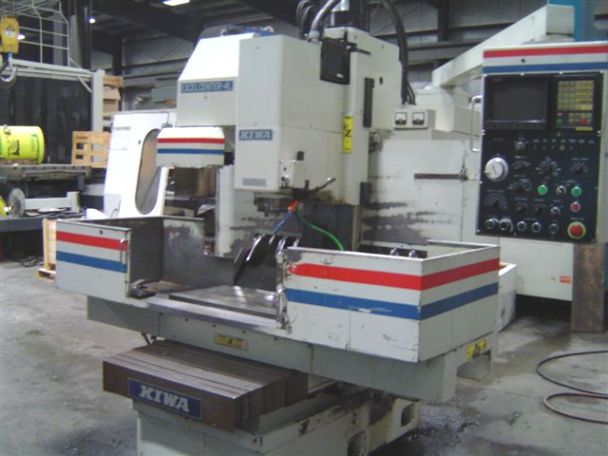

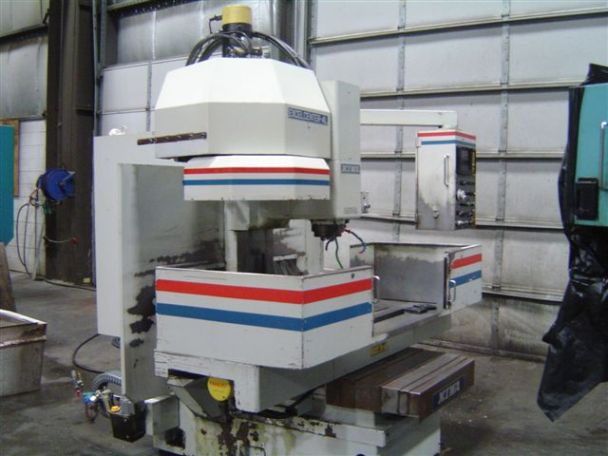

KIWA EXCELCENTER 4, 32" X 17" TABLE, X 21.7", Y 17.7", Z 21.7", FANUC 10M, 16 TOOLS

GENERAL SPECIFICATIONS:
MANUFACTURER KIWA
SERIAL# E30618L

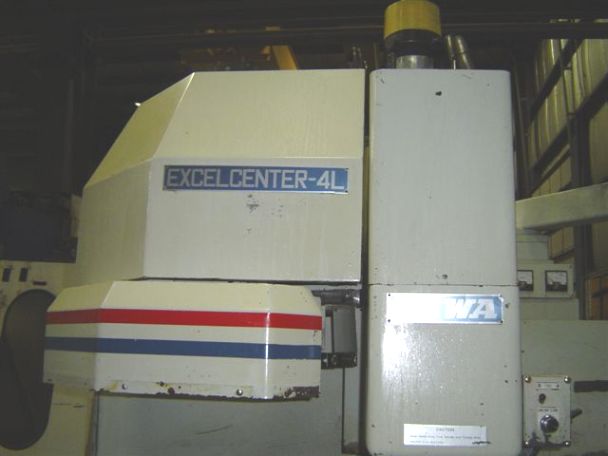

MODEL EXCEL CENTER 4

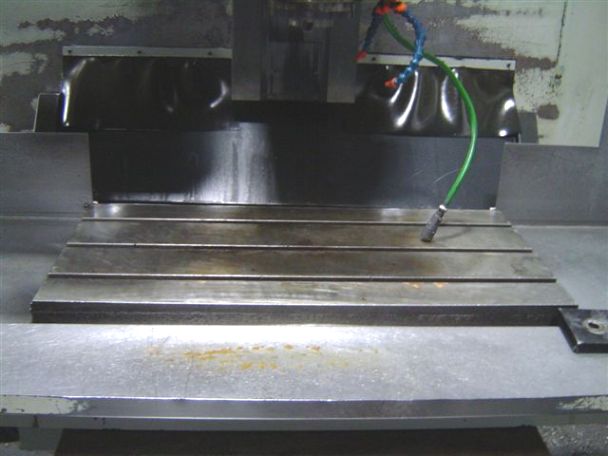

TABLE SIZE 32.3" X 16.9"
TRAVELS (X) 21.7"
(Y) 17.7"
(Z) 21.7"
TABLE TOP TO SPINDLE NOSE 5.9" TO 27.6"
COLUMN TO SPINDLE CENTER 17.7"
TABLE HEIGHT 30.7"
RAPIDS X AND Y 595 IPM
Z 475 IPM
CUTTING FEED RATES .004-157 IPM
MAX TABLE LOAD 661 LBS
SPINDLE MOTOR 7.5HP/5HP
SPINDLE TAPER BT 40
ATC 16 TOOLS
MACHINE WEIGHT 7700 LBS
FLOOR SPACE 91" X 107" 99"H

EQUIPPED WITH:

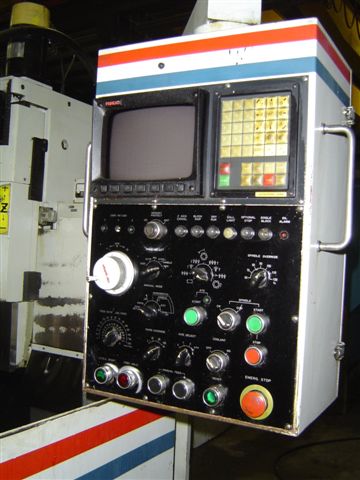

FANUC 10M
COOLANT SYSTEM
