Specifications
Equipped With
GENERAL SPECIFICATIONS:
PALLET SIZE 12" X 18.1"
SPINDLE NOSE TO TABLE TOP 4.3" - 16.3"
MAXIMUM PALLET LOAD 132.3 LBS
PALLET CHANGE TIME 3.9 SECONDS
X AXIS TRAVEL 12"
Y AXIS TRAVEL 10"
Z AXIS TRAVEL 12"
RAPID TRAVERSE RATE X AXIS 1574.8 IPM
RAPID TRAVERSE RATE Y AXIS 1574.8 IPM
RAPID TRAVERSE RATE Z AXIS 1417.3 IPM
SPINDLE SPEEDS 80 - 8,000 RPM
SPINDLE TAPER BT #30
SPINDLE MOTOR 5 HP AC
TOOL CHANGER CAPACITY 16 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL) 0.9 SECONDS
TOOL CHANGE TIME (CHIP TO CHIP) 2.3 SECONDS
EQUIPPED WITH:
YASNAC MX-3 CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)

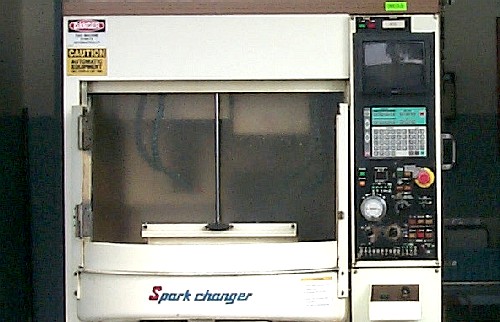

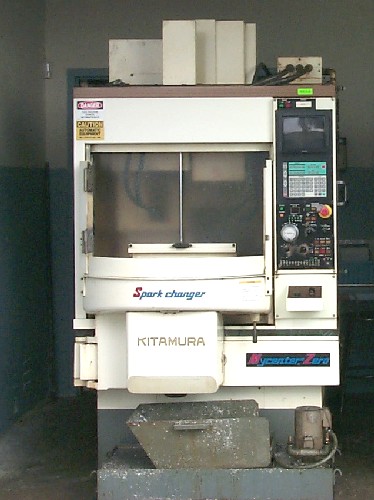

KITAMURA HIGH SPEED ROTARY PALLET CHANGER
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
