Specifications
Equipped With
GENERAL SPECIFICATIONS:

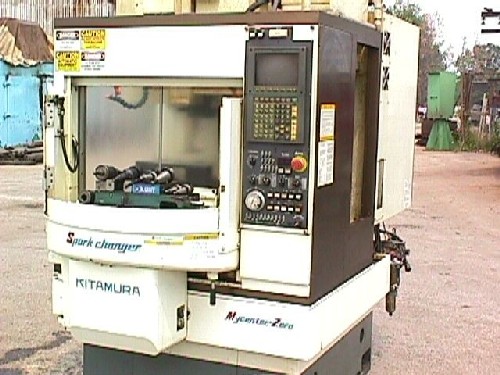

MODEL # SPARKCHANGER
NEW APPROXIMATELY 1997
PALLET SIZE 12" X 18.1"
SPINDLE NOSE TO TABLE TOP 5.3" - 17.3"
MAXIMUM PALLET LOAD 132.3 LBS
PALLET CHANGE TIME 1.9 SECONDS
X AXIS TRAVEL 12"
Y AXIS TRAVEL 10"
Z AXIS TRAVEL 12"
RAPID TRAVERSE RATE X AXIS 1574.8 IPM
RAPID TRAVERSE RATE Y AXIS 1574.8 IPM
RAPID TRAVERSE RATE Z AXIS 1417.3 IPM
SPINDLE SPEEDS 80 - 8,000 RPM
SPINDLE TAPER BT #30
SPINDLE MOTOR 5 HP AC
TOOL CHANGER CAPACITY 16 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL) 0.8 SECONDS
TOOL CHANGE TIME (CHIP TO CHIP) 2.0 SECONDS
EQUIPPED WITH:

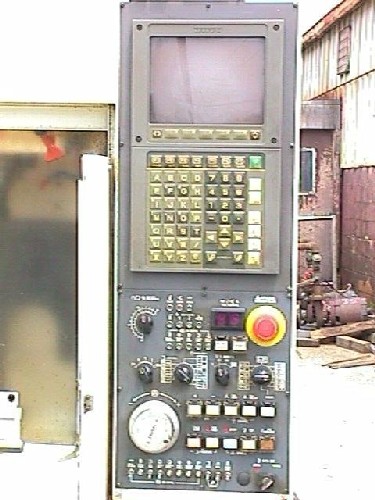

YASANC I80MB CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)

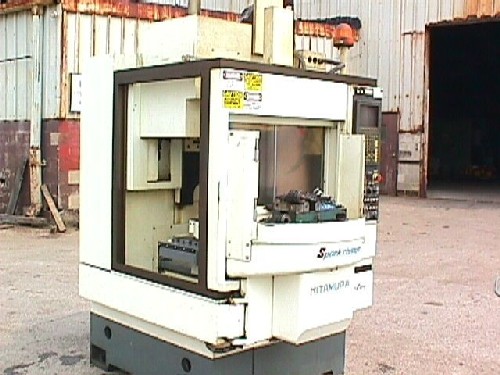

KITAMURA HIGH SPEED ROTARY PALLET CHANGER
320 METERS EXTENDED PROGRAM STORAGE MEMORY
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED SPLASH GUARDING
ALL AVAILABLE TOOL HOLDERS (APPROXIMATELY 20-25)
(2) KURT 6" TABLE VISES, ALL AVAILABLE MANUALS
