Specifications
Equipped With
GENERAL SPECIFICATIONS:
TABLE SIZE 55.11" x 22.4"
MAXIMUM TABLE LOAD 2,200 LBS
SPINDLE NOSE TO TABLE TOP 6.4" - 28.9"
X AXIS TRAVEL 44.3"
Y AXIS TRAVEL 22.2"
Z AXIS TRAVEL 22.4"
RAPID TRAVERSE RATE X AXIS 945 IPM
RAPID TRAVERSE RATE Y AXIS 945 IPM
RAPID TRAVERSE RATE Z AXIS 630 IPM
CUTTING FEED RATE 0.04 - 590 IPM
SPINDLE SPEEDS 20 - 10,000 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR (2 SPEED GEARED) 20 HP AC

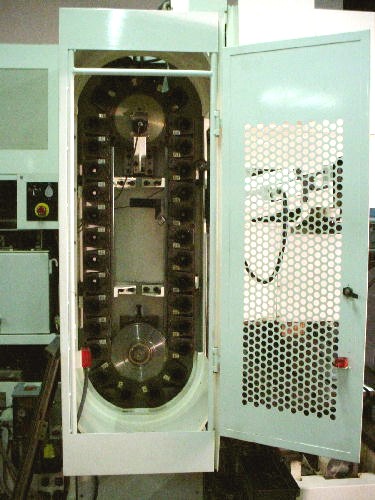

TOOL CHANGER CAPACITY 30 STATION ATC
MAXIMUM TOOL WEIGHT 17.6 LBS
TOOL CHANGE TIME (TOOL TO TOOL) 1.7 SECONDS
EQUIPPED WITH:

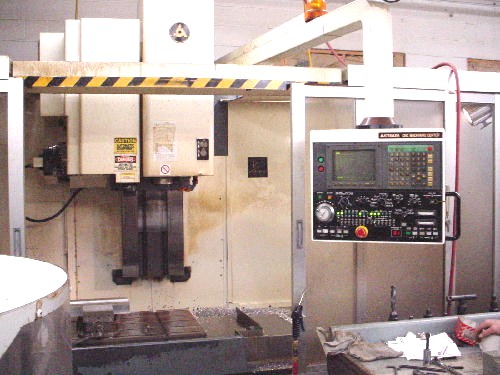

YASNAC I80MB CNC CONTROL WITH 9" CRT & 160M MEMORY
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
SPINDLE OIL COOLING SYSTEM (SPINDLE CHILLER)
STANDARD & WASH COOLANT SYSTEMS WITH TANK & PUMP
SIDE DISHCARGE STYLE LIFT-UP TYPE CHIP CONVEYOR
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
