Specifications
Equipped With
GENERAL SPECIFICATIONS:
TABLE SIZE...................... 16.1" x 35.4"
MAXIMUM TABLE LOAD.............. 440 LBS
SPINDLE NOSE TO TABLE TOP ...... 5.7" - 23.8"
X AXIS TRAVEL .................. 30"
Y AXIS TRAVEL .................. 17.9"
Z AXIS TRAVEL .................. 18"
RAPID TRAVERSE RATE X AXIS ..... 945 IPM
RAPID TRAVERSE RATE Y AXIS ..... 945 IPM
RAPID TRAVERSE RATE Z AXIS ..... 787 IPM
CUTTING FEED RATE .............. 0- 393 IPM

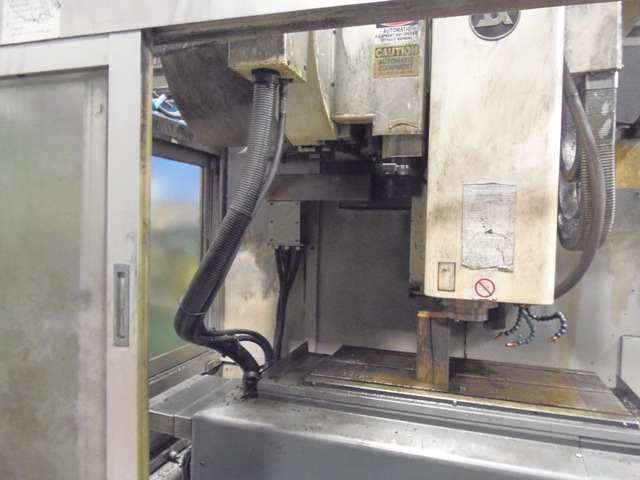

SPINDLE SPEEDS ................. 20 - 10,000 RPM
SPINDLE TAPER .................. CAT 40
SPINDLE MOTOR (2 SPEED GEARED).. 15 HP AC
TOOL CHANGER CAPACITY........... 20 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL). 1.7 SECONDS
APPROX. MACHINE WEIGHT.......... 13,200 LBS
EQUIPPED WITH:

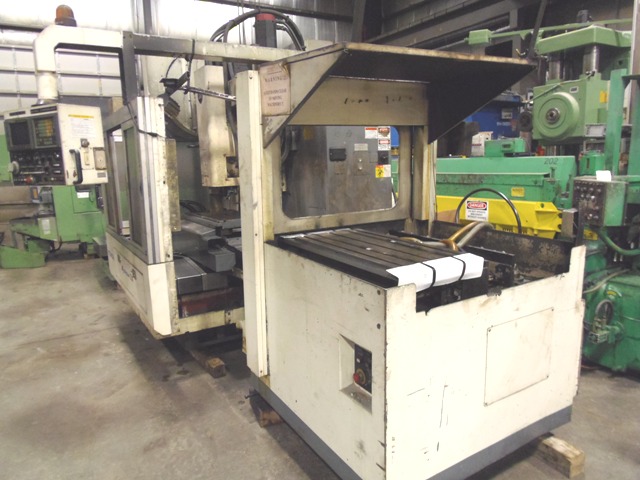

AUTOMATIC PALLET SHUTTLE

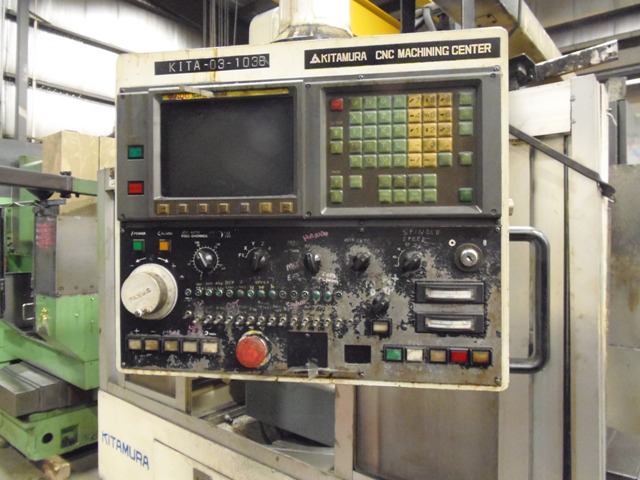

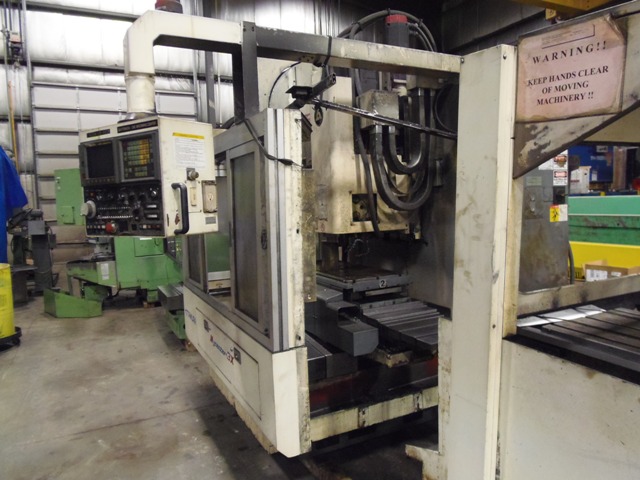

FANUC OM CNC CONTROL WITH 9" CRT
HELICAL INTERPOLATION
RIGID TAPPING
80 METER PROGRAM MEMORY
54 TOOL OFFSETS
THRU THE TOOL COOLANT
RS-232C PORT INTERFACE FOR DNC OPERATION
SPINDLE OIL COOLING SYSTEM (SPINDLE CHILLER)
STANDARD COOLANT SYSTEM WITH TANK & PUMP
CHIP CONVEYOR
FULLY ENCLOSED GUARDING
WIRED 208/3/60
