Specifications
Equipped With
GENERAL SPECIFICATIONS:

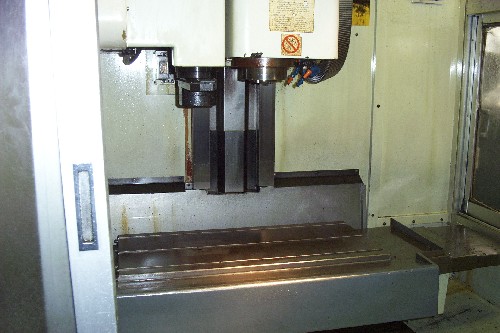

TABLE SIZE 16.1" X 35.4"
MAXIMUM TABLE LOAD 660 LBS
SPINDLE NOSE TO TABLE TOP 4.9" - 22.94"
X AXIS TRAVEL 23"
Y AXIS TRAVEL 16.9"
Z AXIS TRAVEL 18.1"
RAPID TRAVERSE RATE X AXIS 945 IPM
RAPID TRAVERSE RATE Y AXIS 945 IPM
RAPID TRAVERSE RATE Z AXIS 787 IPM
SPINDLE SPEEDS 20 - 7,000 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR (2 SPEED GEARED) 10 HP AC
TOOL CHANGER CAPACITY 20 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL) 1.7 SECONDS
EQUIPPED WITH:

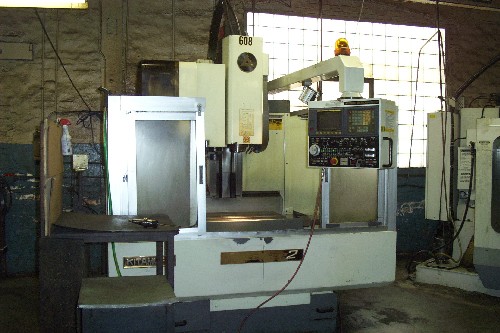

FANUC OMC CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
SPINDLE OIL COOLING SYSTEM (SPINDLE CHILLER)
INTERNAL WORK LIGHT, SPINDLE SPEED & LOAD METERS
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
