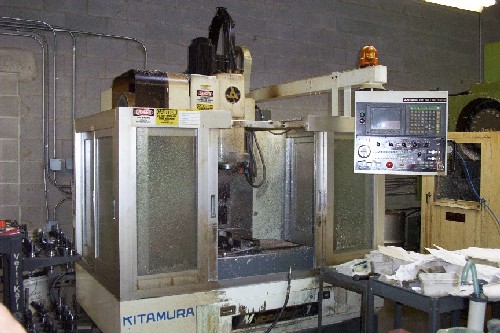

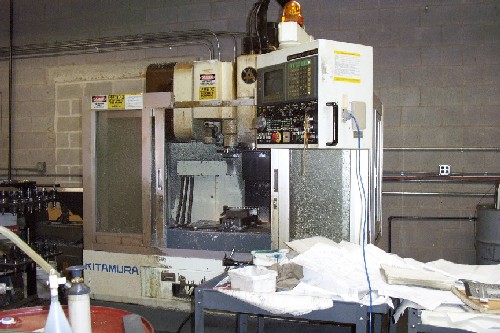

Specifications
Equipped With
GENERAL SPECIFICATIONS:
TABLE SIZE 14" X 30.9"
MAXIMUM TABLE LOAD 529 LBS
SPINDLE NOSE TO TABLE TOP 5" - 20.94"
X AXIS TRAVEL 20"
Y AXIS TRAVEL 14"
Z AXIS TRAVEL 16"
RAPID TRAVERSE RATE X AXIS 945 IPM
RAPID TRAVERSE RATE Y AXIS 945 IPM
RAPID TRAVERSE RATE Z AXIS 787 IPM
SPINDLE SPEEDS 300 - 13,000 RPM
SPINDLE TAPER BT 35
SPINDLE MOTOR 10 HP AC
TOOL CHANGER CAPACITY 20 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL) 1.5 SECONDS
EQUIPPED WITH:

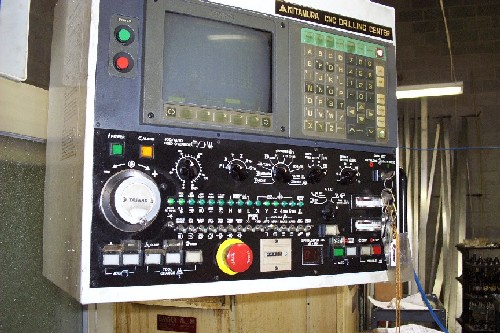

YASANC I80M CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
SPINDLE OIL COOLING SYSTEM (SPINDLE CHILLER)
(2) 6" KURT VISES, INTERNAL WORK LIGHT, 160M MEM
STANDARD COOLANT SYSTEM WITH TANK & PUMP
ALL AVAILABLE TOOLING (APPROX. 30 HOLDERS W/CART)
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
