Specifications
Equipped With
GENERAL SPECIFICATIONS:
TABLE SIZE 14" X 30.9"
MAXIMUM TABLE LOAD 529 LBS
SPINDLE NOSE TO TABLE TOP 5" - 20.94"
X AXIS TRAVEL 20"
Y AXIS TRAVEL 14"
Z AXIS TRAVEL 16"
RAPID TRAVERSE RATE X AXIS 1181 IPM
RAPID TRAVERSE RATE Y AXIS 1181 IPM
RAPID TRAVERSE RATE Z AXIS 949 IPM
CUTTING FEED RATE 0.1 - 590 IPM
SPINDLE SPEEDS 300 - 13,000 RPM
SPINDLE TAPER BT 35
SPINDLE MOTOR (2 SPEED GEARED) 10 HP AC
TOOL CHANGER CAPACITY 20 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL) 1.2 SECONDS
EQUIPPED WITH:
FANUC OMC CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)

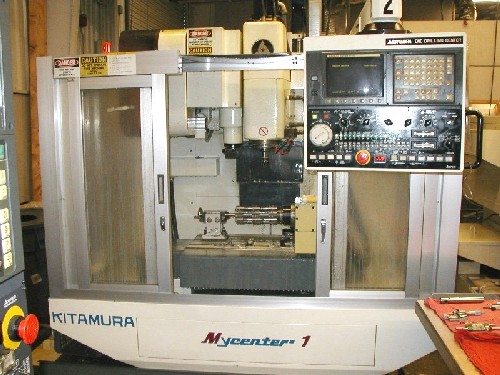

NIKKEN 8" FULL 4TH AXIS ROTARY TABLE WITH TAILSTOCK
STANDARD COOLANT SYSTEM WITH TANK & PUMP
SPINDLE CHILLER, ALL AVAILABLE TOOL HOLDERS
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
