Specifications
Equipped With
GENERAL SPECIFICATIONS:

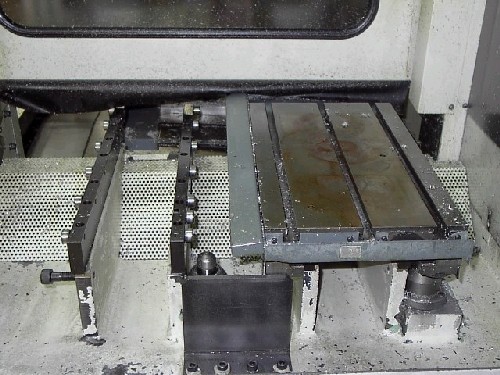

PALLET SIZE 11.8" x 19.7"
SPINDLE NOSE TO TABLE TOP 5" - 20.9"
MAXIMUM PALLET LOAD 176 LBS
PALLET CHANGE TIME 7.5 SECONDS
X AXIS TRAVEL 20"
Y AXIS TRAVEL 14"
Z AXIS TRAVEL 16"
RAPID TRAVERSE RATE X AXIS 1417 IPM
RAPID TRAVERSE RATE Y AXIS 1417 IPM
RAPID TRAVERSE RATE Z AXIS 1181 IPM
CUTTING FEED RATE 0 - 590 IPM
SPINDLE SPEEDS 20 - 10,000 RPM
SPINDLE TAPER BT-35
SPINDLE MOTOR 10 HP AC
TOOL CHANGER CAPACITY 20 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL) 1.2 SECONDS
TOOL CHANGE TIME (CHIP TO CHIP) 3.2 SECONDS
EQUIPPED WITH:
YASNAC I80M CNC CONTROL WITH 9" CRT & 320 METERS MEMORY
RS-232C PORT INTERFACE FOR DNC OPERATION, CUTTER COMP
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
SPINDLE CHILLER (SPINDLE OIL COOLING SYSTEM)
STANDARD COOLANT SYSTEM WITH TANK & PUMP
EXTERNAL LIFT-UP TYPE CHIP REMOVAL CONVEYOR
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
