GENERAL SPECIFICATIONS:

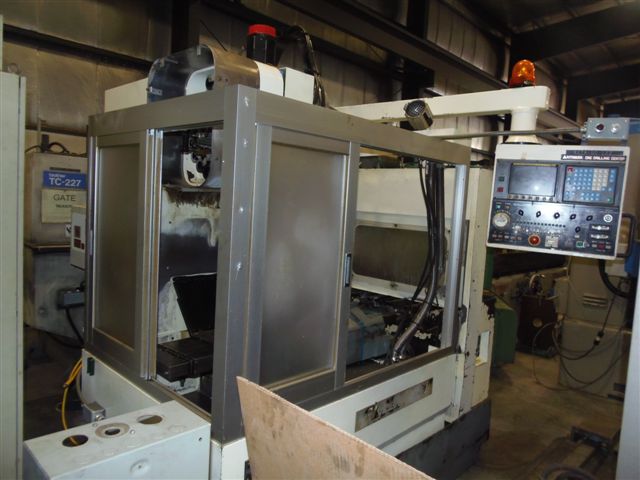

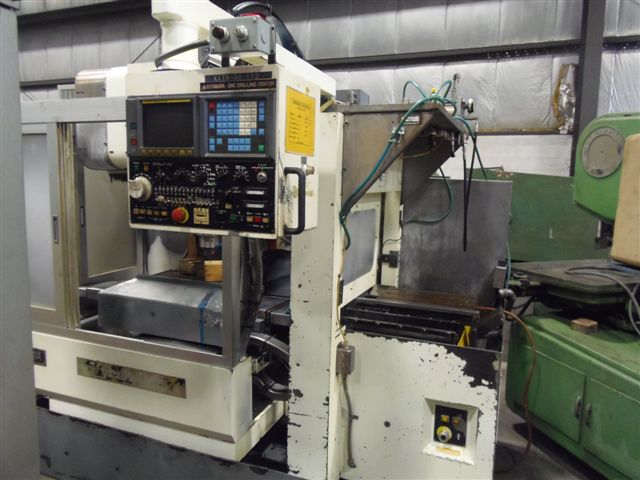

MANUFACTURER........................... KITAMURA
MODEL.................................. MYCENTER 1
AGE.................................... 1991
TABLE SIZE............................. 14" x 30.9"
TABLE LOAD CAPACITY.................... 528 LBS.
X-AXIS TRAVEL.......................... 20" (508 MM)
Y-AXIS TRAVEL.......................... 14" (355 MM)
Z-AXIS TRAVEL.......................... 16" (406 MM)
TBL SURFACE TO SPINDLE NOSE............ 5" - 20.9"
COLUMN SLIDE WAY TO TABLE CENTERLINE... 8" - 21.9"
SPINDLE TAPER.......................... NT NO. 35
SPINDLE SPEED.......................... 300 - 13,000 RPM
SPINDLE MOTOR.......................... 7.5 HP
RAPID FEED (X & Y AXIS)................ 944 IPM
RAPID FEED (Z AXIS).................... 787 IPM
CUTTING FEED........................... 0 - 394 IPM
EQUIPPED WITH:

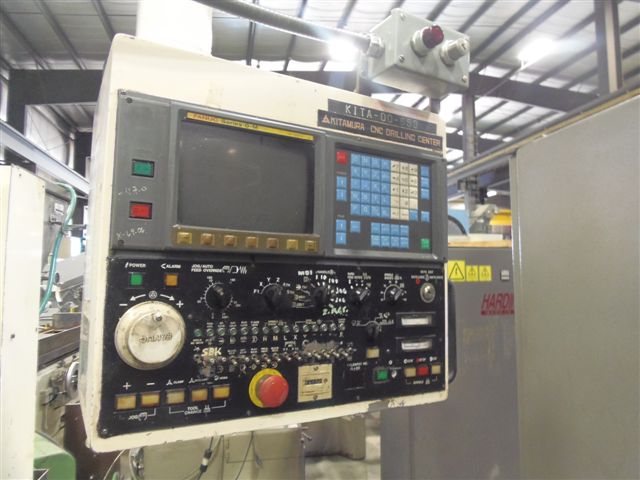

FANUC O-M CONTROL
PALLET SHUTTLE
MACHINE SOLD "AS IS"
TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
