GENERAL SPECIFICATIONS:

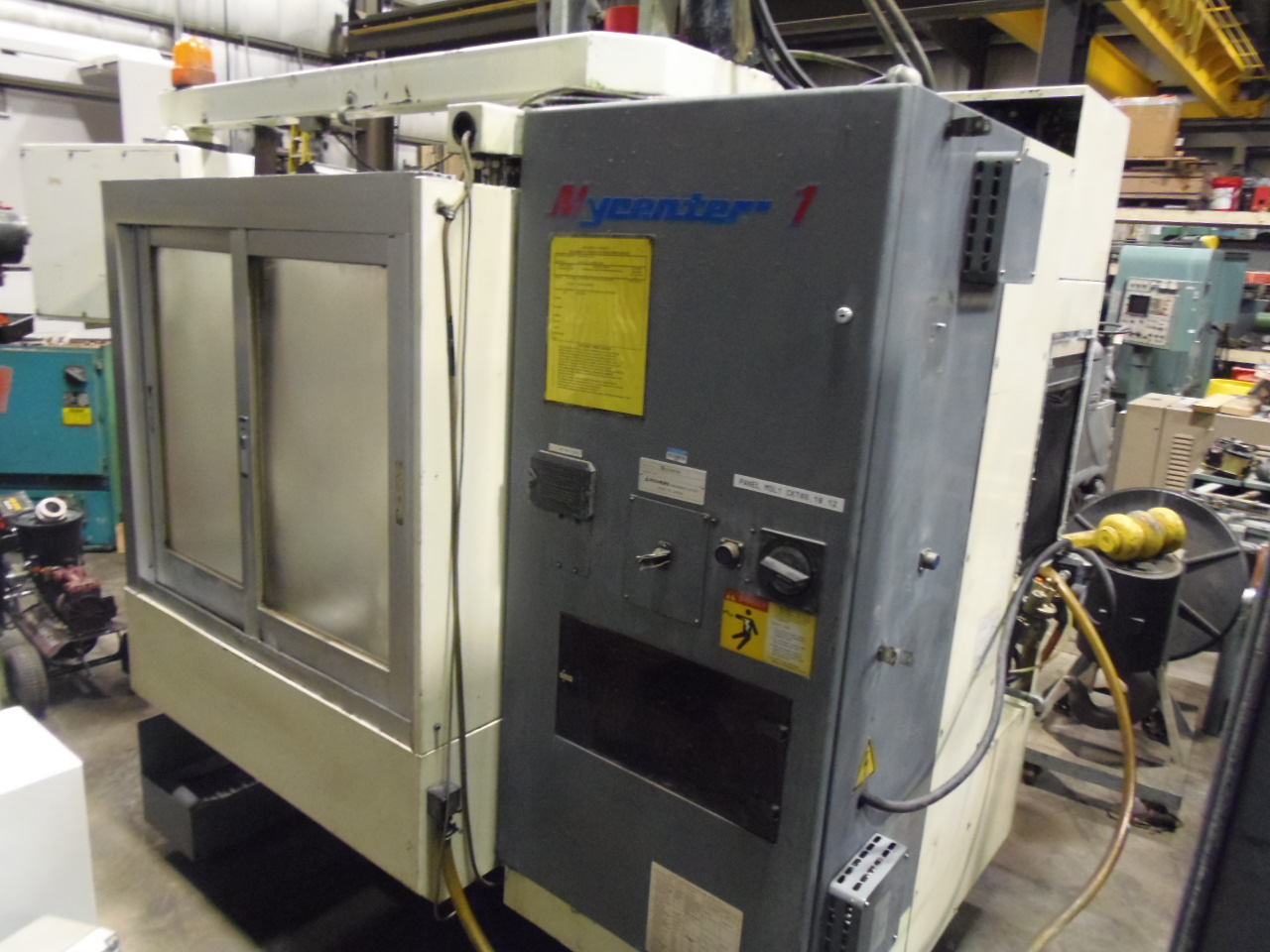

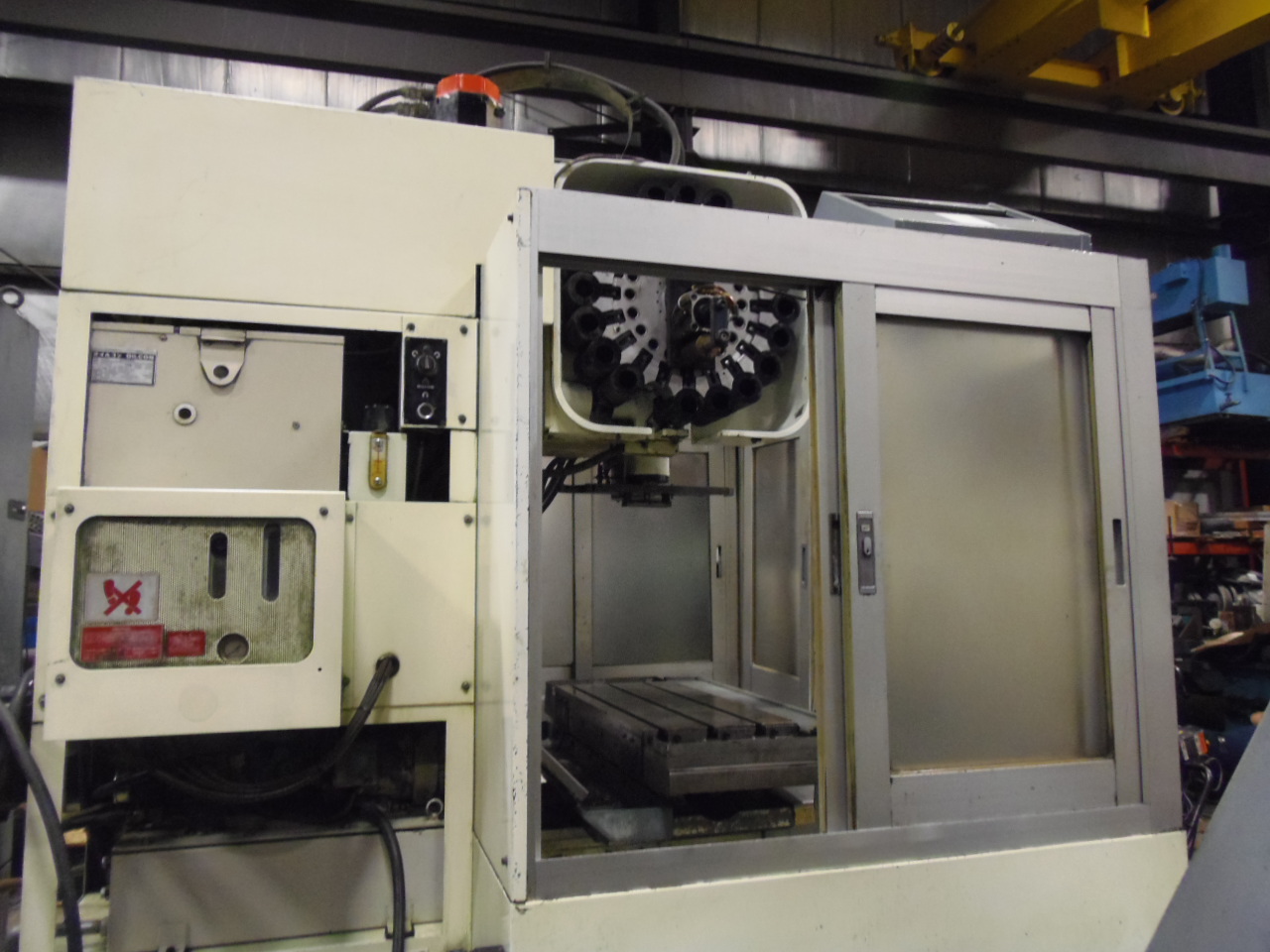

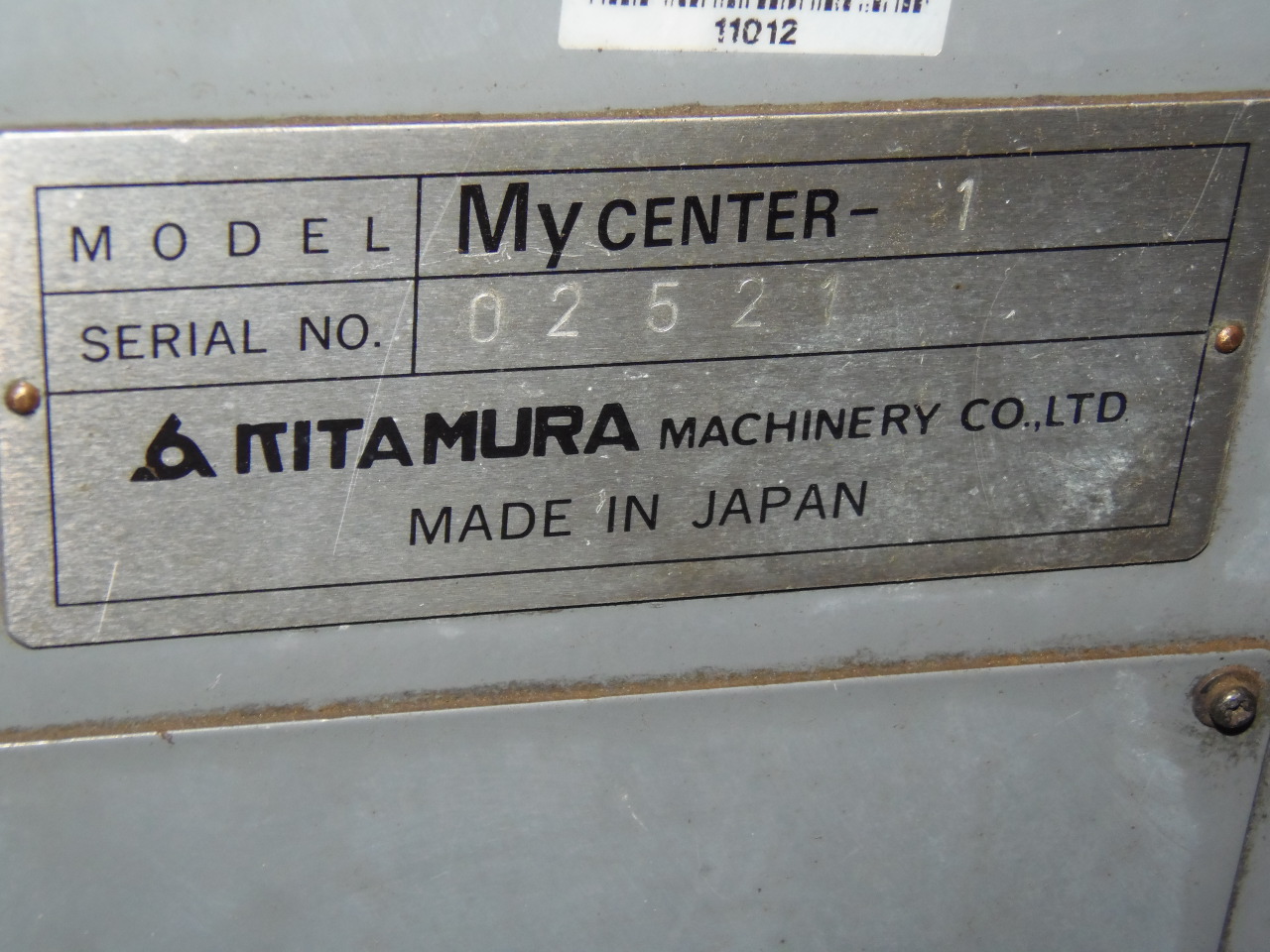

MANUFACTURER......................... KITAMURA
MODEL................................ MYCENTER 1
AGE.................................. 1993

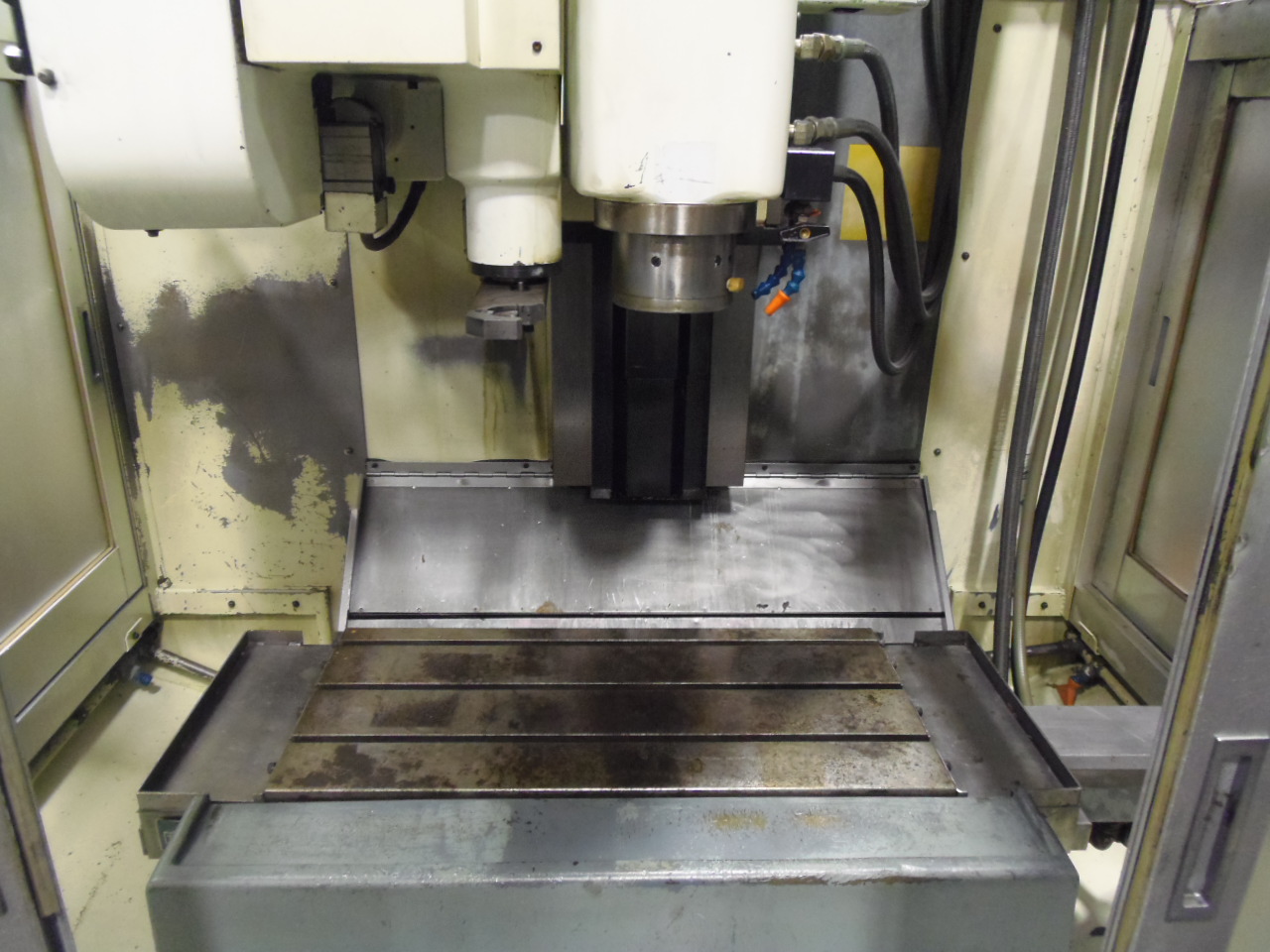

TABLE SIZE........................... 14" x 30.9"
TABLE LOAD CAPACITY.................. 528 LBS.
X-AXIS TRAVEL........................ 20" (508 MM)
Y-AXIS TRAVEL........................ 14" (355 MM)
Z-AXIS TRAVEL........................ 16" (406 MM)
TBL SURFACE TO SPINDLE NOSE.......... 5" - 20.9"
COLUMN SLIDE WAY TO TABLE CENTERLINE. 8" - 21.9"
SPINDLE TAPER........................ NT NO. 35
SPINDLE SPEED........................ 300 - 13,000 RPM
SPINDLE MOTOR........................ 7.5 HP
RAPID FEED........................... (X & Y AXIS) 944 IPM
RAPID FEED........................... (Z AXIS) 787 IPM
CUTTING FEED......................... 0 - 394 IPM
EQUIPPED WITH:

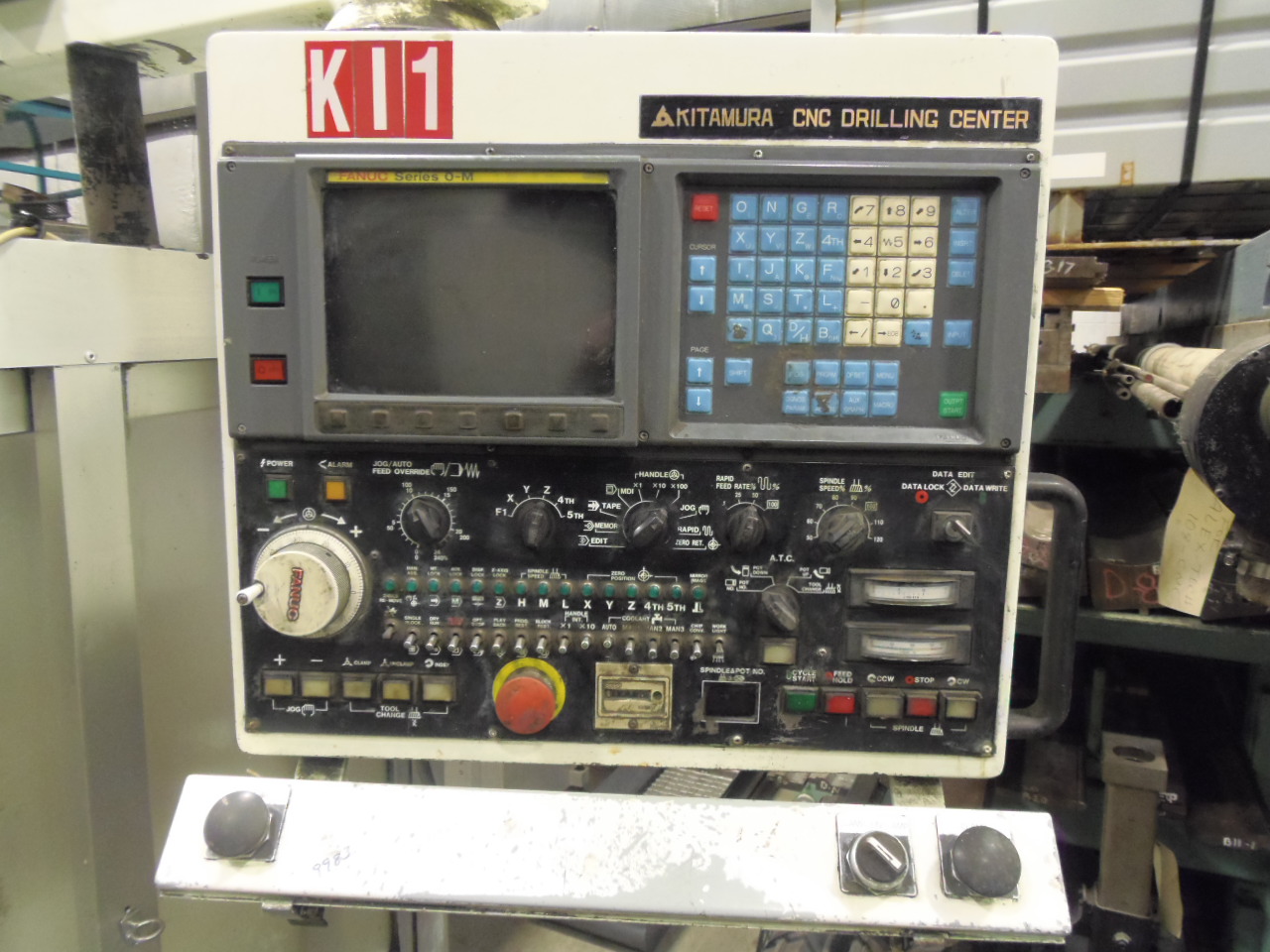

FANUC O-M CONTROL
CHIP CONVEYOR
COOLANT SYSTEM
