GENERAL SPECIFICATIONS:

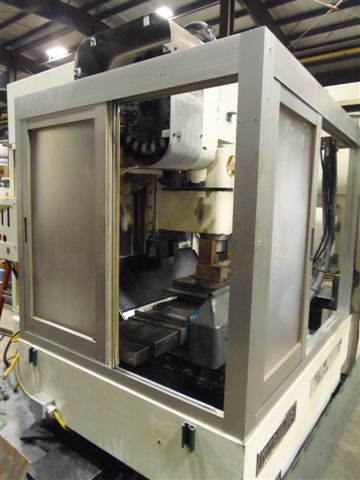

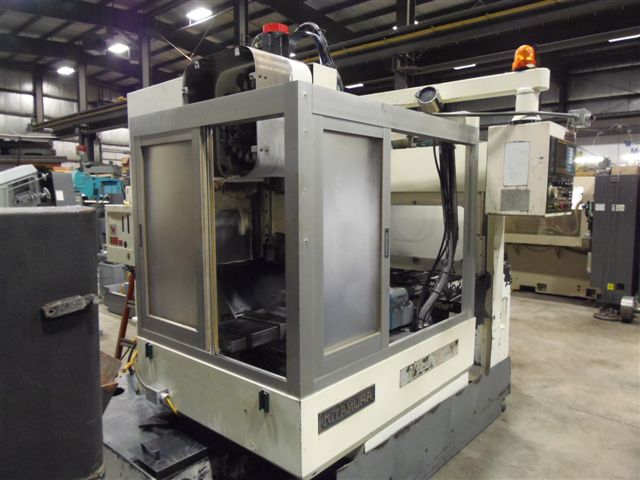

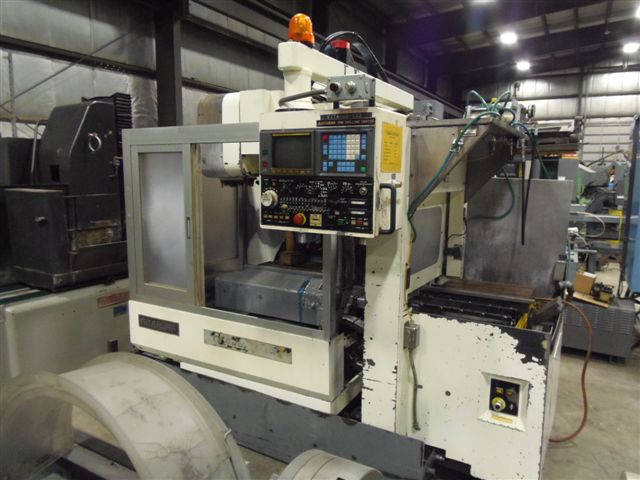

MANUFACTURER KITAMURA
MODEL MYCENTER 1
AGE 1991
TABLE SIZE 14" x 30.9"
TABLE LOAD CAPACITY 528 LBS.
X-AXIS TRAVEL 20" (508 MM)
Y-AXIS TRAVEL 14" (355 MM)
Z-AXIS TRAVEL 16" (406 MM)
TBL SURFACE TO SPINDLE NOSE 5" - 20.9"
COLUMN SLIDE WAY TO TABLE CENTERLINE 8" - 21.9"
SPINDLE TAPER NT NO. 35
SPINDLE SPEED 300 - 13,000 RPM
SPINDLE MOTOR 7.5 HP
RAPID FEED (X & Y AXIS) 944 IPM
RAPID FEED (Z AXIS) 787 IPM
CUTTING FEED 0 - 394 IPM
EQUIPPED WITH:

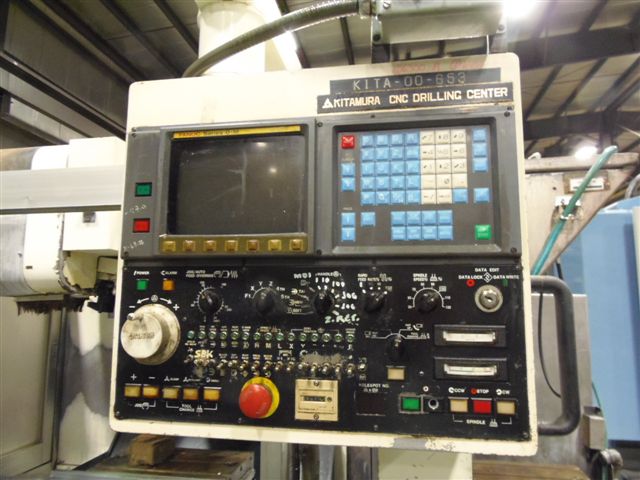

FANUC O-M CONTROL

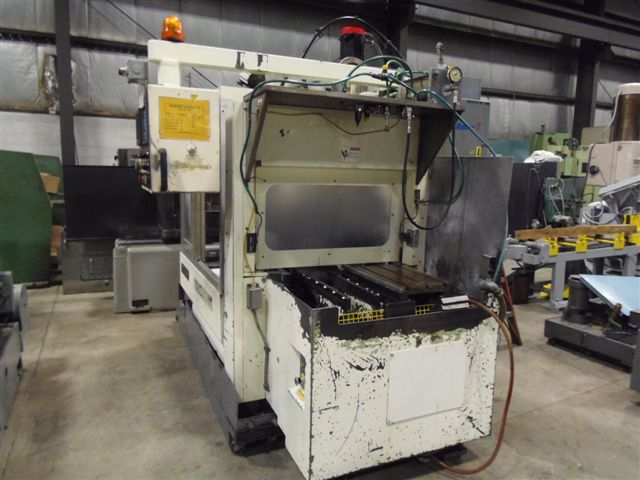

PALLET SHUTTLE
TEMPORARY
SPECIFICATIONS SUBJECT TO VERIFICATION
