Specifications
Equipped With
GENERAL SPECIFICATIONS:

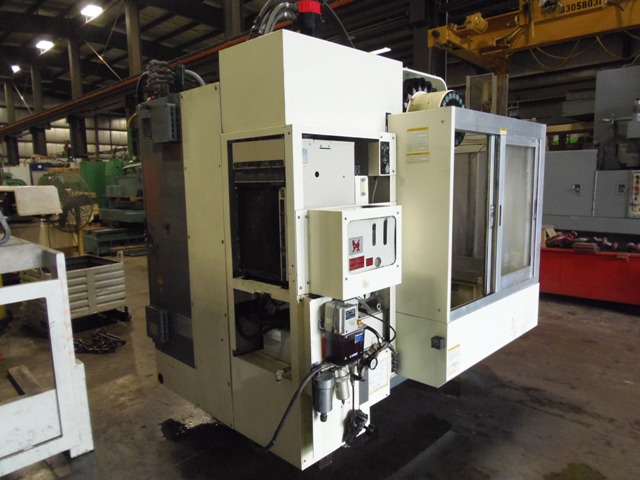

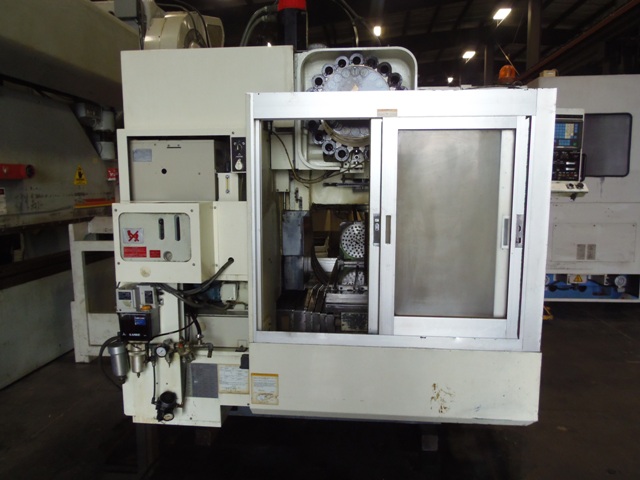

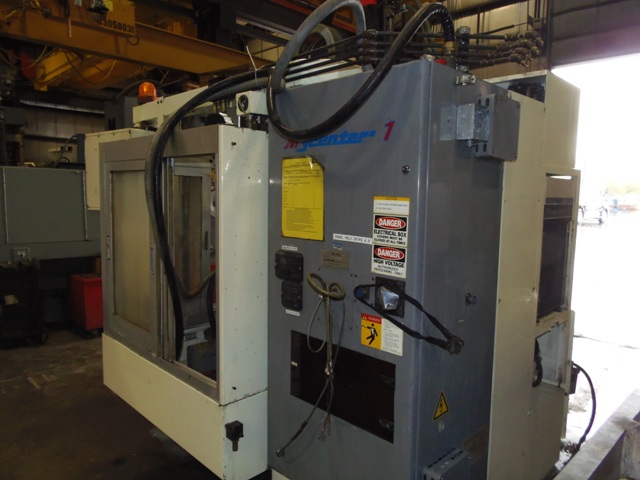

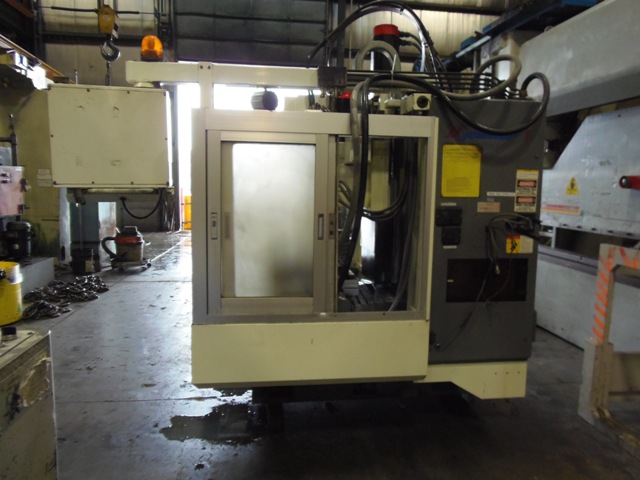

MANUFACTURER.......................... KITAMURA
MODEL................................. MYCENTER 1
AGE................................... 1993
TABLE SIZE............................ 14" x 30.9"
TABLE LOAD CAPACITY................... 528 LBS.
X-AXIS TRAVEL......................... 20" (508 MM)
Y-AXIS TRAVEL......................... 14" (355 MM)
Z-AXIS TRAVEL......................... 16" (406 MM)
TBL SURFACE TO SPINDLE NOSE........... 5" - 20.9"
COLUMN SLIDE WAY TO TABLE CENTER LINE. 8" - 21.9"
SPINDLE TAPER......................... BT NO. 35
SPINDLE SPEED......................... 300 - 12,000 RPM
SPINDLE MOTOR......................... 7.5 HP
RAPID FEED............................ (X & Y AXIS) 944 IPM
RAPID FEED............................ (Z AXIS) 787 IPM
CUTTING FEED.......................... 0 - 394 IPM
DIMENSIONS............................ 112" x 75" 104" H
WEIGHT (APPROX)....................... 7,000 LBS.
EQUIPPED WITH:

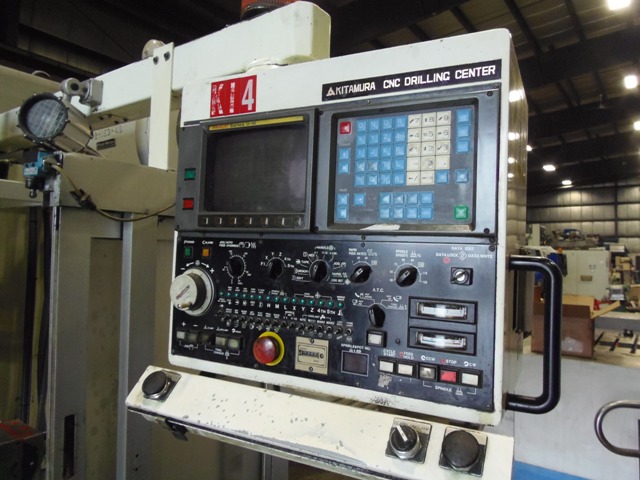

FANUC O-M CONTROL
RIGID TAP

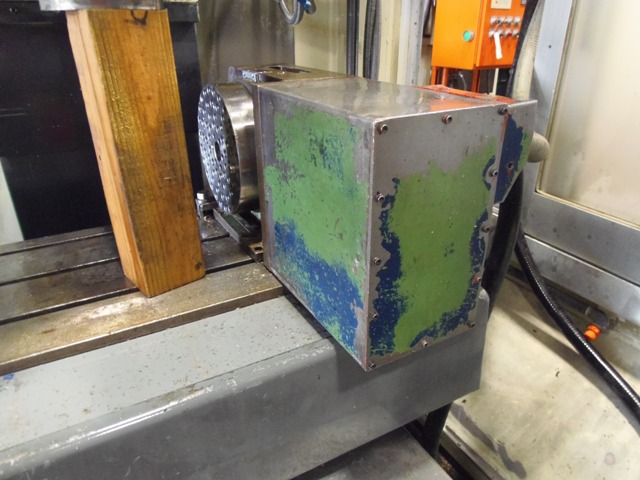

YUASA SPDX-8F 4TH AXIS ROTARY TABLE

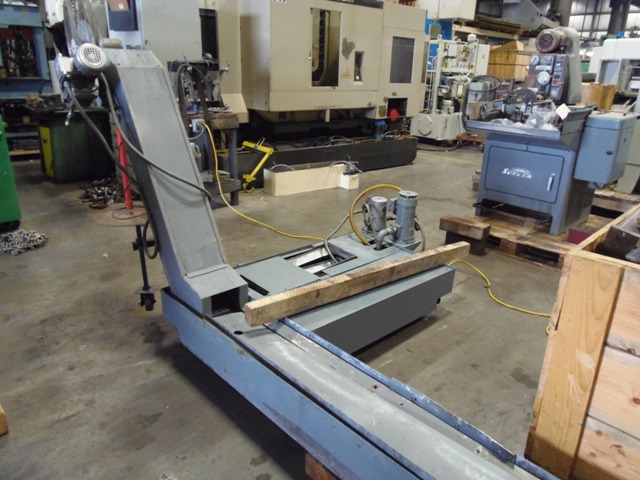

CHIP CONVEYOR
SPINDLE CHILLER
COOLANT
20 TOOL HOLDERS
MANUAL
SPECIFICATIONS SUBJECT TO VERIFICATION
