Specifications
Equipped With
GENERAL SPECIFICATIONS:
PALLET SIZE 12" X 12"
PALLET CHANGE TIME 7 SECONDS
MAXIMUM TABLE LOAD 551 LBS
SPINDLE NOSE TO PALLET CENTER 3.9" - 20.1"
SPINDLE CENTER TO PALLET SURFACE 1.6" - 21.7"
X AXIS TRAVEL 20.1"
Y AXIS TRAVEL 20.1"
Z AXIS TRAVEL 16.1"
B AXIS INDEXING 0.001º
RAPID TRAVERSE RATE X AXIS 1417 IPM
RAPID TRAVERSE RATE Y AXIS 1417 IPM
RAPID TRAVERSE RATE Z AXIS 1417 IPM
CUTTING FEED RATE 0.1 - 393.7 IPM
SPINDLE SPEEDS 20 - 15,000 RPM
SPINDLE TAPER BT 40
SPINDLE MOTOR 15 HP AC

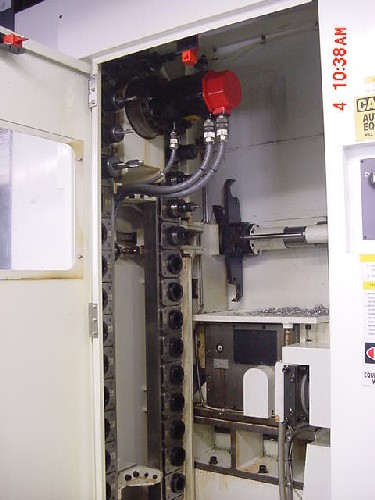

TOOL CHANGER CAPACITY 40 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL) 1.2 SECONDS
EQUIPPED WITH:
FANUC 15M CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
COOLANT THROUGH THE SPINDLE (220 PSI)
SPINDLE SPEED METER, SPLINDLE LOAD METER
STANDARD COOLANT SYSTEM WITH TANK & PUMP
EXTERNAL LIFT-UP TYPE CHIP CONVEYOR
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
***TOTAL POWER ON HOURS - 2,949*****
