GENERAL SPECIFICATIONS:

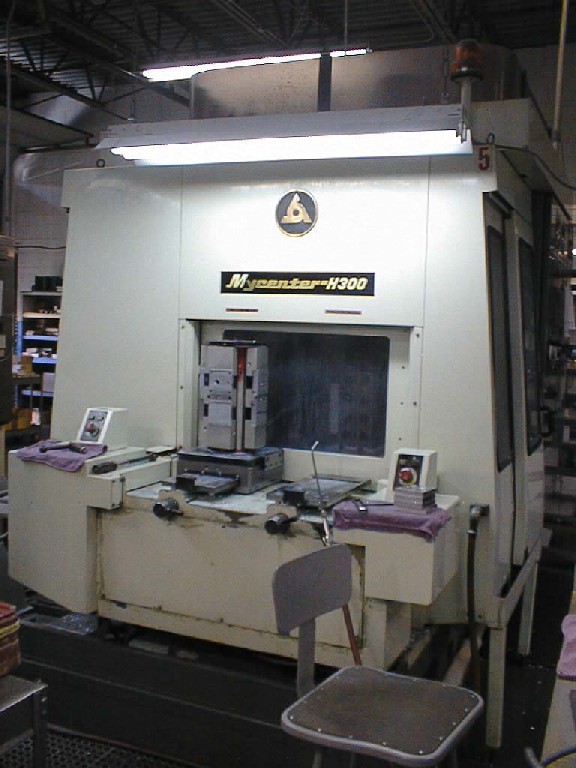

MODEL # H300
NEW APPROXIMATELY 1992 (INSTALLED 1994)
TABLE SIZE 12" X 12"
MAXIMUM TABLE LOAD 551 LBS
SPINDLE NOSE TO PALLET CENTER 3.94" - 19.7"
SPINDLE CENTER TO PALLET SURFACE 1.97" - 18.7"
X AXIS TRAVEL 15.7"
Y AXIS TRAVEL 16.7"
Z AXIS TRAVEL 15.7"
RAPID TRAVERSE RATE X AXIS 945 IPM
RAPID TRAVERSE RATE Y AXIS 945 IPM
RAPID TRAVERSE RATE Z AXIS 945 IPM
SPINDLE SPEEDS 130 - 10,000 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR 12 HP AC
TOOL CHANGER CAPACITY 100 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL) 1.7 SECONDS
EQUIPPED WITH:
FANUC 15M CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
COOLANT THROUGH THE SPINDLE (220 PSI)
SPINDLE SPEED METER, SPLINDLE LOAD METER
STANDARD COOLANT SYSTEM WITH TANK & PUMP
EXTERNAL LIFT-UP TYPE CHIP CONVEYOR
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
