Specifications
Equipped With

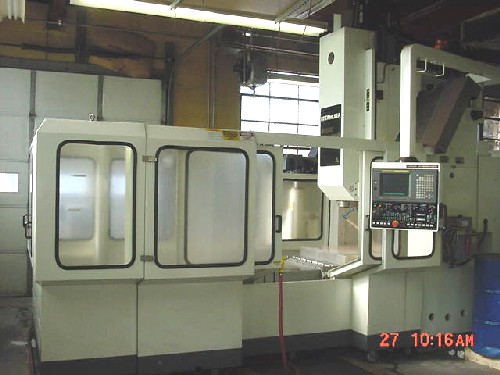

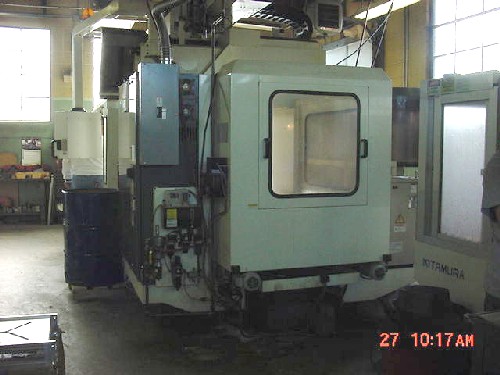

GENERAL SPECIFICATIONS:

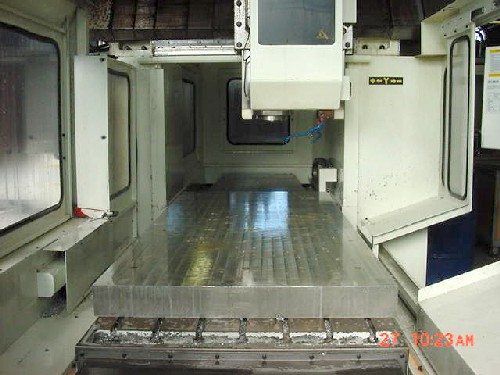

TABLE SIZE 35.4" x 98.4"
MAXIMUM TABLE LOAD 6,600 LBS
DISTANCE BETWEEN THE COLUMNS 46.1"
SPINDLE NOSE TO TABLE TOP 9.9" - 37.8"
X AXIS TRAVEL 80"
Y AXIS TRAVEL 42.7"
Z AXIS TRAVEL 27.9"
RAPID TRAVERSE RATE X, Y & Z AXES 472 IPM
CUTTING FEED RATE 0.1 - 393.7 IPM
SPINDLE SPEEDS (2 SPEED GEARED) 60 - 6,000 RPM
SPINDLE TAPER BT 50
SPINDLE MOTOR 30 HP AC
TOOL CHANGER CAPACITY 30 STATION ATC
MACHINE WEIGHT (APPROXIMATE) 40,000 LBS
MACHINE DIMENSIONS (L x W x H) 240" x 160" x 160"
POSITIONING (FULL STROKE, PER LIT.) ± 0.00012"
REPEATABILITY (PER LIT., W/SCALES) ± 0.00004"
EQUIPPED WITH:

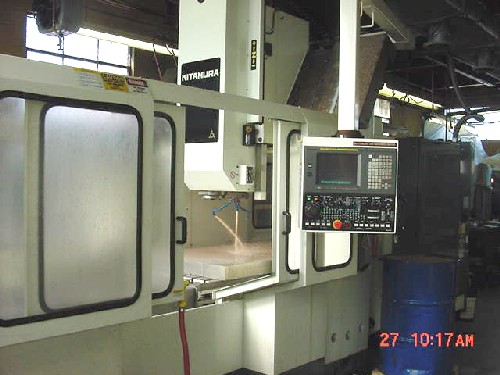

FANUC 15MB CNC CONTROL WITH 9" CRT, 1280 METERS MEMORY
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
LINEAR SCALE FEEDBACK ON X, Y & Z AXES, SUB PLATE ON TABLE
SPINDLE OIL COOLING SYSTEM (SPINDLE CHILLER)
STANDARD COOLANT SYSTEM, EXTENDED PENDANT ARM
INTERNAL CHIP AUGERS & EXTERNAL CHIP CONVEYOR
(4) KURT ANGLE LOCK VISES MOUNTED TO SUB PLATE
ALL AVAILABLE TOOL HODERS INCLUDED (APPROXMATELY 30)
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
***POSITIONING & REPEATBILITY ARE PER KITAMURA LITERATURE***
