GENERAL SPECIFICATIONS:
MANUFACTURER KIA TURN
MODEL 15
SERIAL # KT21186
NEW (APPROX.) 1996
SWING OVER BED 7.72"
CHUCK 6.5"
BAR CAPACITY 1.5"
MAX. TURNING DIA. 6.5"
MAX. TURNING LENGTH 14.1"
SPINDEL SPEED 50-5000 RPM
FEED TRAVEL X AXIS 6.3"
FEED TRAVEL Z AXIS 14.96"
TAIL STOCK SPINDLE TAPER MT4
TAIL STOCK TRAVELS 15.75"
SPINDLE CONT. 7.5 HP
DIMENSIONS 7'L X 6'W X 6'H
APPROX. WEIGHT 9,000 LBS
EQUIPPED WITH:

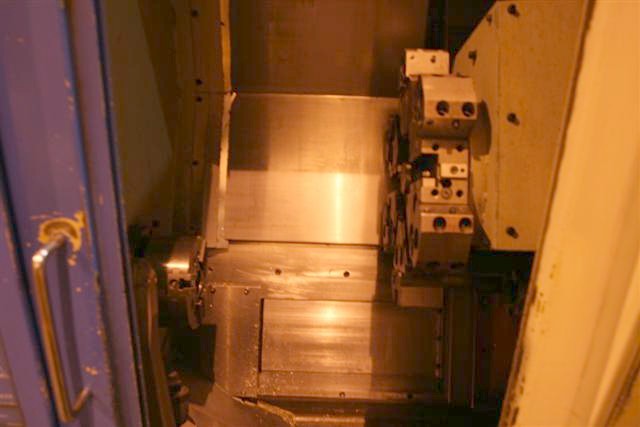

12 POSITION TURRET

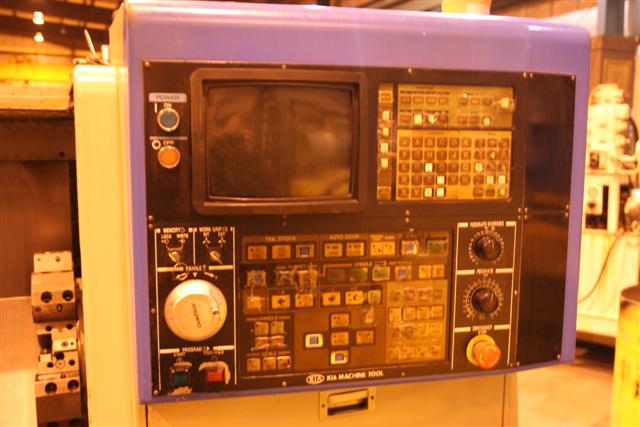

YASNAC LX 3 CONTROL WITH RS 232C INTERFACE
PULL OUT CHIP PAN

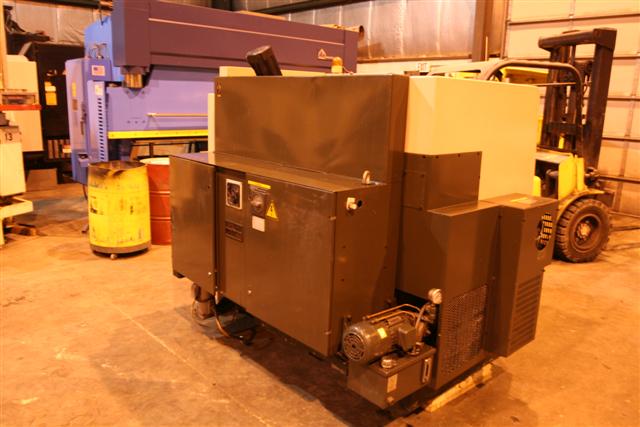

COOLANT SYSTEM TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
