SPECIFICATIONS:

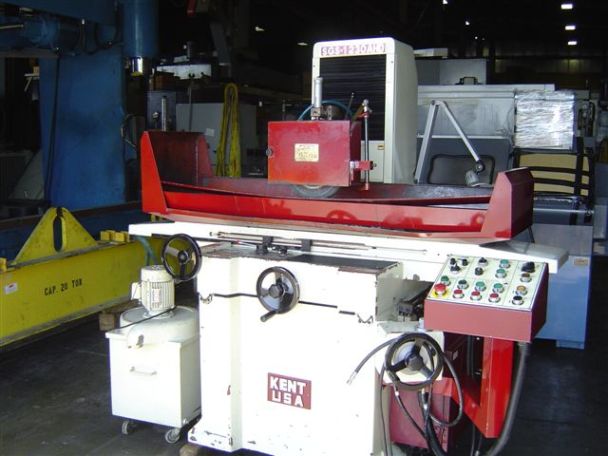

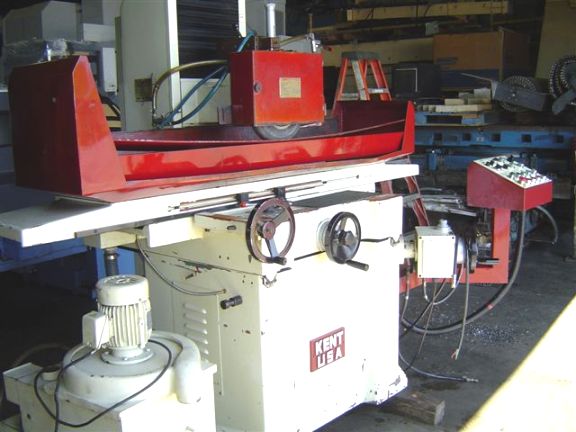

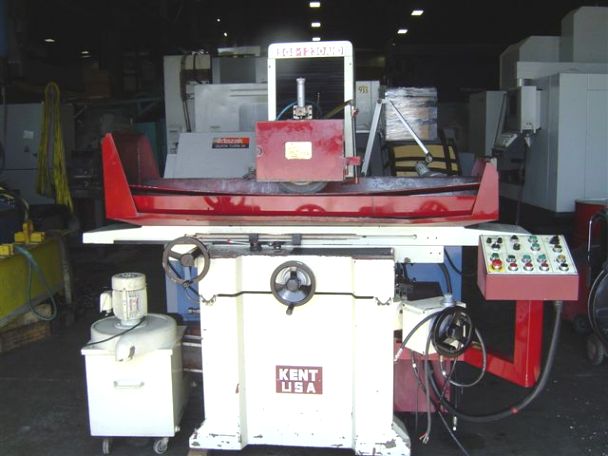

MANUFACTURER KENT
MODEL # SGS-1230AHD
SERIAL # 89127
Grinding Capacity(in./W x L) 11-31/32 x 30
T-slot Number and Size(in) 1 and 9/16
Longitudinal Table Travel(max./in.) 33-1/16
Cross Table Travel(max./in.) 13-1/16
Spindle Centerline to Table Top (max./in.) 23-5/8
Vertical Handwheel Graduation (in.) 0.0005
Vertical Handwheel per Revolution (in.) 0.100
Cross Handwheel Graduation (in.) 0.005
Cross Handwheel per Revolution (in.) 0.200
Downfeed Micro Dial Graduation (in.) 0.0001
Downfeed Micro Dial per Revolution (in.) 0.01
Automatic Downfeed Increment (in./steps) 0.0001/10
Grinding Wheel Diameter (max./in.) 14
Grinding Wheel Thickness (max./in.) 1-1/4
Grinding Wheel Center Bore (in.) 5
Spindle Speeds (RPM) 1,750
5 HP
Spindle Motor 220V/440V/3 Phase/60 Hz.,Prewired 220V
Hydraulic Pump Motor 2 HP
Crossfeed Motor 1/4 HP
Downfeed Motor 1/4 HP
Coolant Motor 1/8 HP
Flooring Space Dimensions (in./W x D x H) 118 x 53 x 74
Net Weight (lbs.) 4,290
Shipping Weight (lbs.) 4,950
EQUIPED WITH:
.Kanetsu 12" x 28" Electro-magnetic Chuck with Control and Automatic Demagnetizer
• Dust Suction Coolant System
• Overhead Parallel Dresser
