Specifications
Equipped With
GENERAL SPECIFICATIONS:

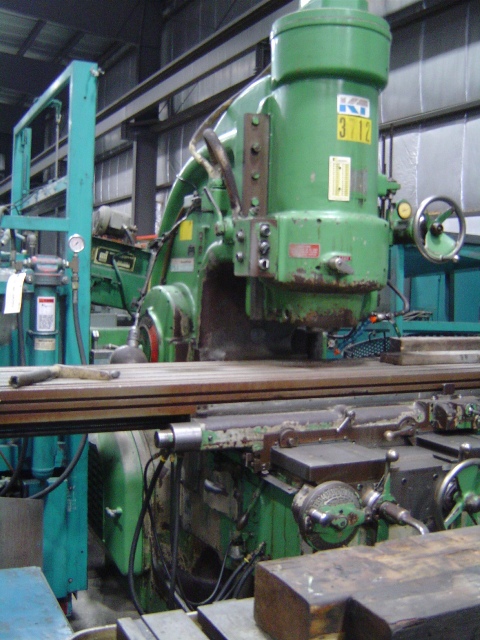

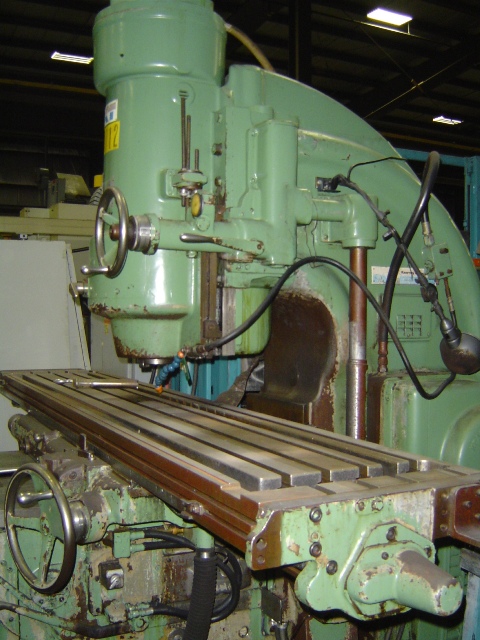

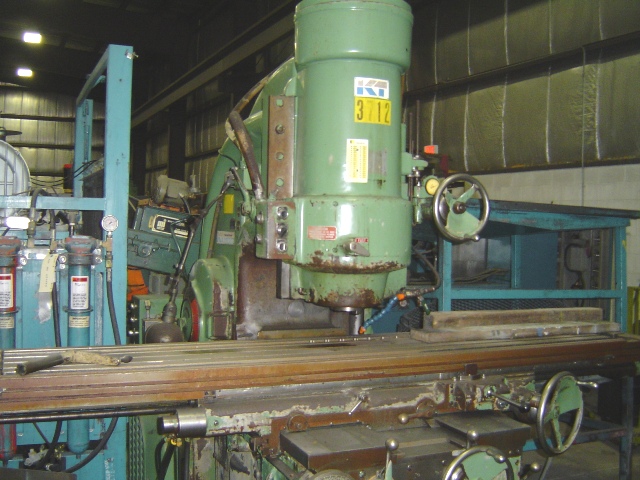

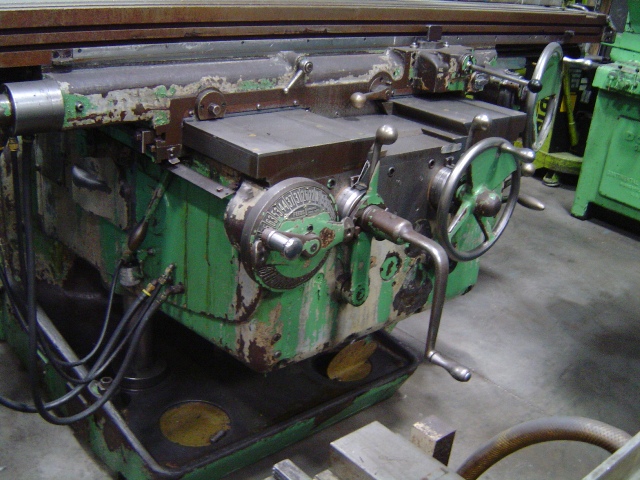

MANUFACTURER KEARNEY AND TRECKER
MODEL K & T 630 TF-20 VERTICAL
SPINDLE MOTOR 30 HP
SPINDLE RANGE 15 TO 1500
NUMBER OF SPEED CHANGES 24
FEED RANGES .375 TO 90 IPM
RAPID TRAVEL TABLE 150 IPM
RAPID TRAVEL SADDLE 150 IPM
RAPID TRAVEL KNEE 50 IPMPRO
LENGTH OF TABLE 106"
WIDTH OF TABLE 19.5"
TABLE CAPACITY 4000 LBS
TRAVEL OF KNEE 21"
SIZE OF DRAW BAR 1"
COOLANT PUMP HP .25
SPINDLE TAPER 50 NMTB
TRAVELS (X) 60"
(Y) 18"
(HEAD VERTICAL) 18"
WEIGHT APPROXIMATELY 18,700 LBS
EQUIPPED WITH:
Motor Driven With 30 HP, 3/60 AC Spindle Drive Motor. 5 HP, 3/60 AC Feed And Rapid Traverse Drive Motor. With Electrical Control Cabinet, With Master Controls. Load Meter.
Power Arbor Draw-In Rod. Hardened Knee And Saddle Ways. 4-Position Turret Stop And Dial Indicator For Vertical Head. Mono-Lever And Automatic Cycle Table Control. Positive Backlash Control. Coolant.
