Specifications
Equipped With
GENERAL SPECIFICATIONS:

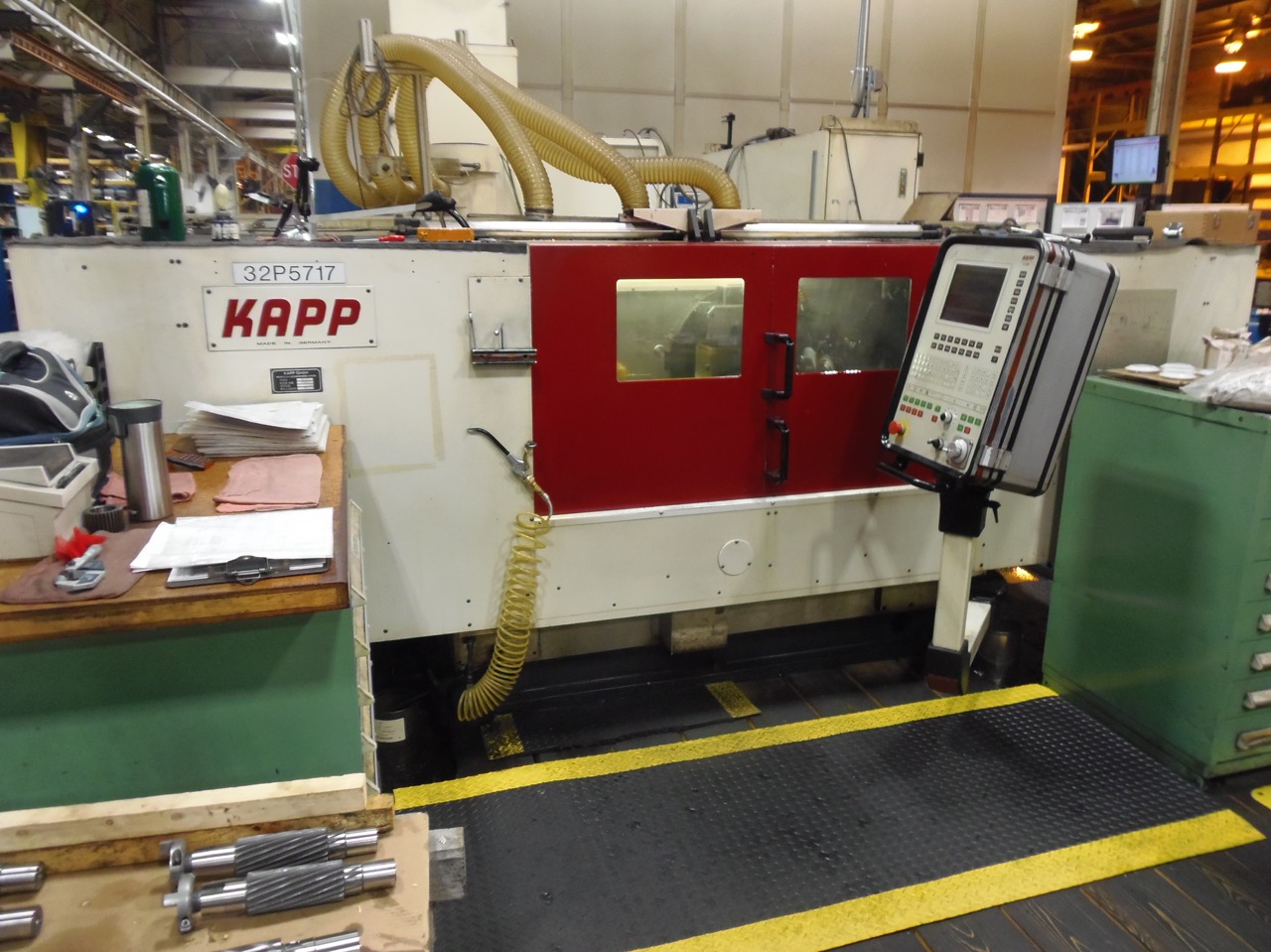

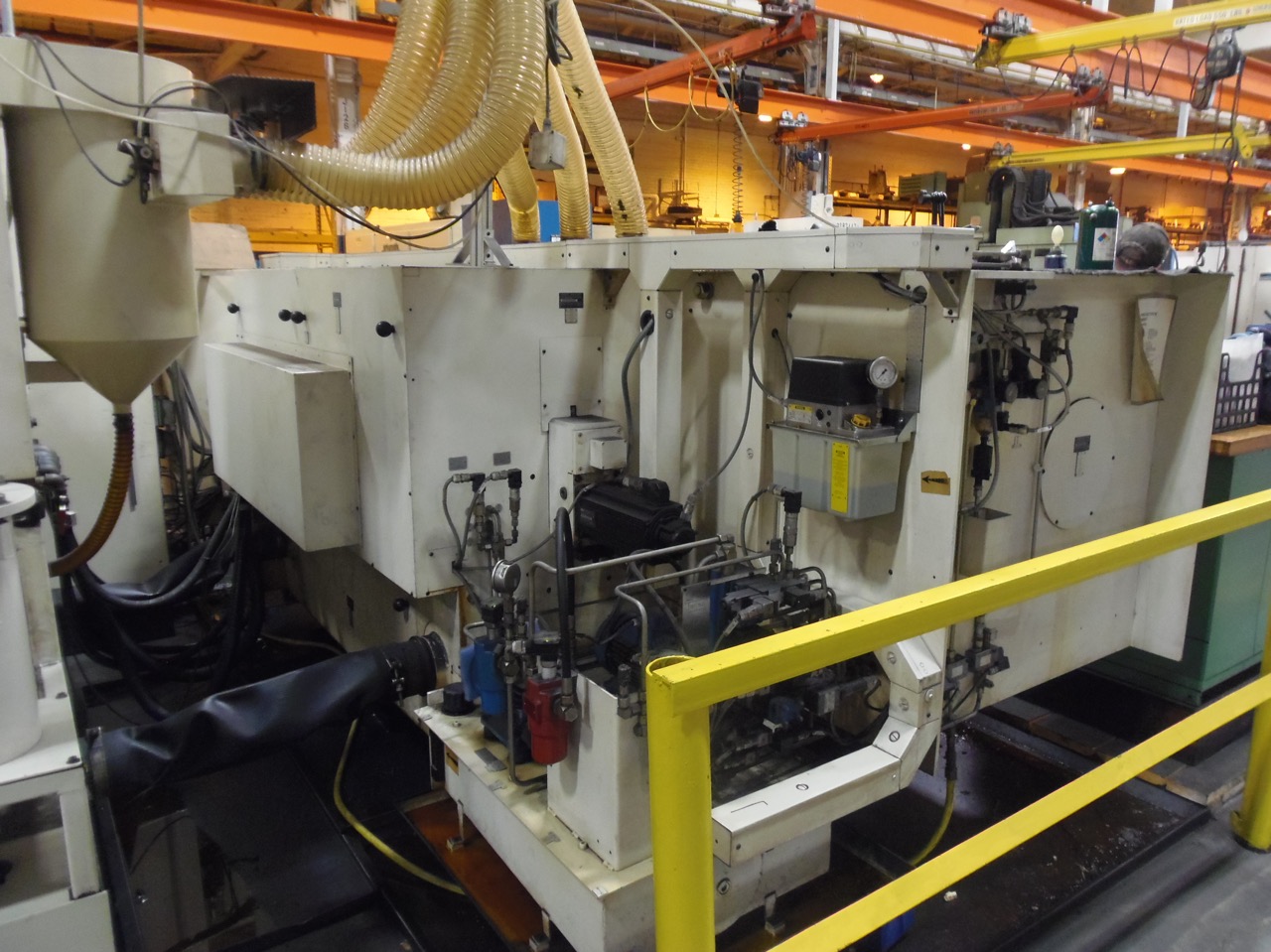

MANUFACTURER..................... KAPP
NEW.............................. 1997
WAYS REDONE...................... 2015
MODEL............................ VAS57P
NUMBER OF AXIS................... 5
MAX. WORK PIECE DIAMETER......... 11" (280mm)
MAX. WORK PIECE LENGTH........... 59" (1500mm)
MIN. LEAD........................ .0004" (.1mm)
MAX. LEAD........................ 3280' (1000 meter)

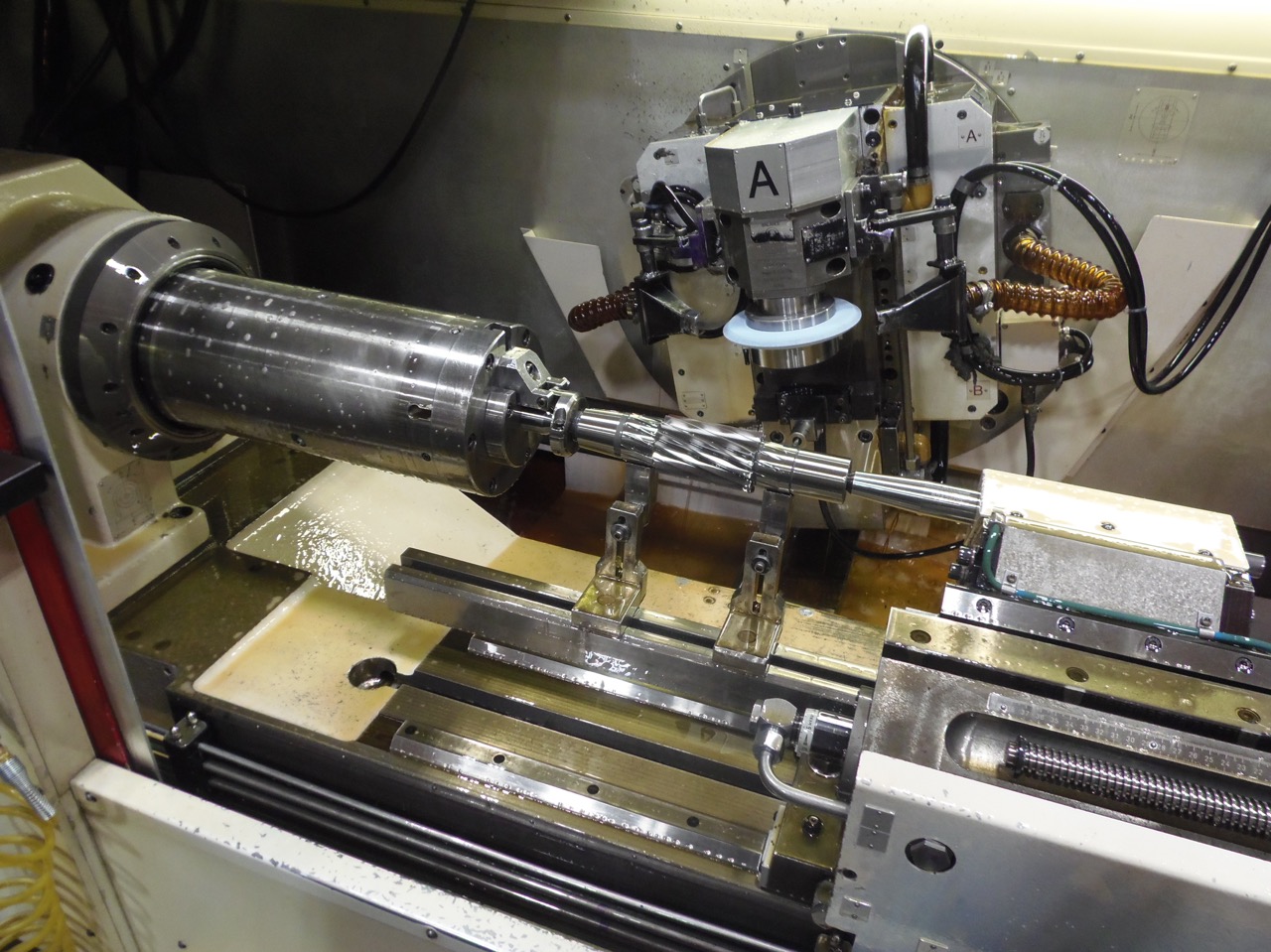

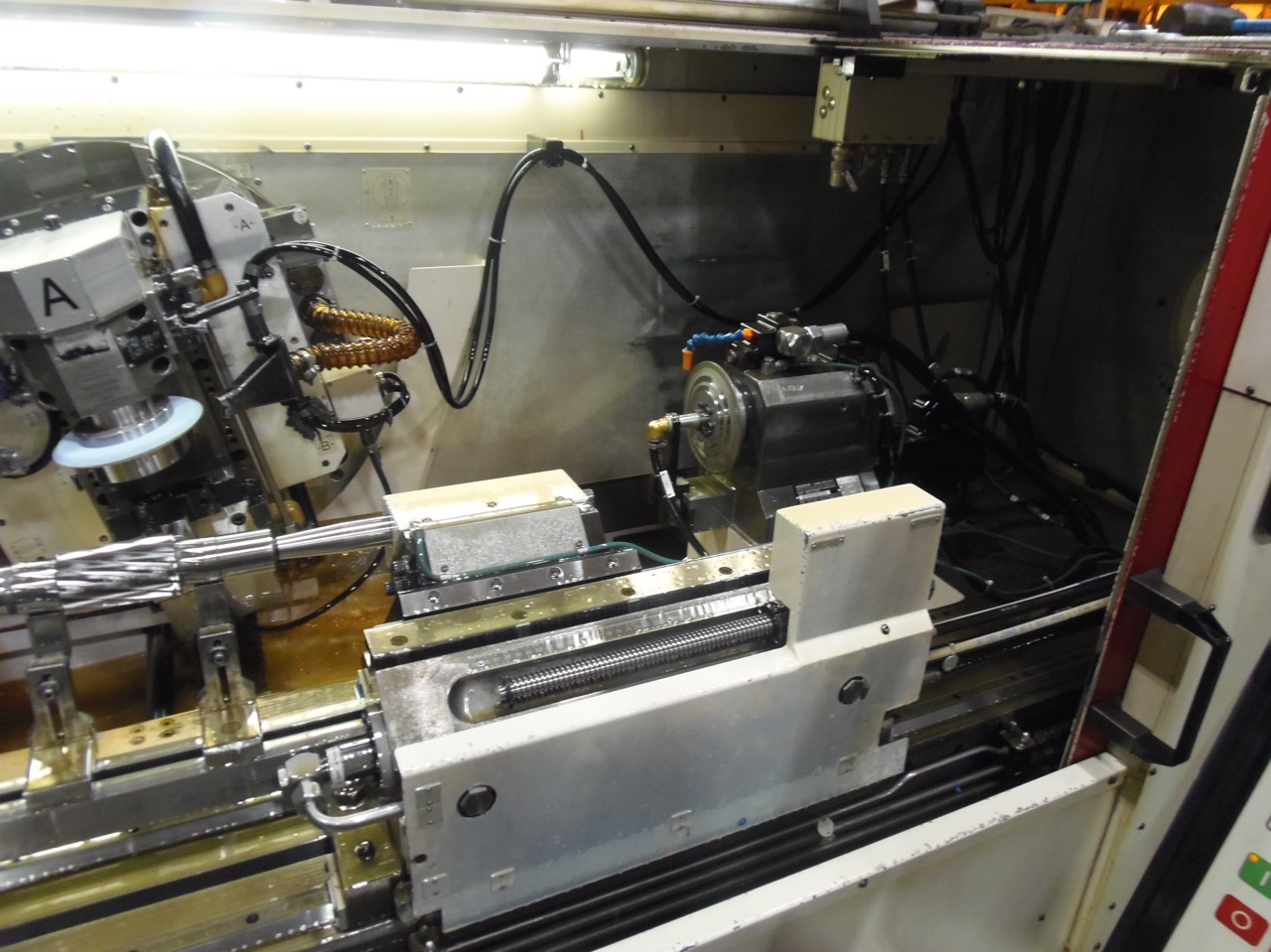

GRINDING WHEEL DIAMETER.......... 9.5" (240mm)
MAX. AXIS TRAVELS
X-AXIS........................ 36.2" (920mm)
Y-AXIS........................ 8.3" (290mm)
Z-AXIS........................ 5.12" (170mm)
A-AXIS........................ 360 DEGREE
B-AXIS........................ +-90 DEGREES
MAX. AXIS SPEEDS
X-AXIS........................ 648"/MIN (16452 mm/pm)
Y-AXIS........................ 200"/MIN (5000 mm/pm)
Z-AXIS........................ 170"/MIN (4333 mm/pm)
A-AXIS........................ 7206 DEG/MIN
B-AXIS........................ 2000 DEG/MIN
GRINDING SPINDLE III.......... 2000 - 10,000 RPM
GRINDING MOTOR................ 1800 - 21,000 RPM
AXIS RESOLUTIONS
X-AXIS:LINEAR MEAS. SYSTEM.... .000004" (.0001mm)
Y-AXIS:LINEAR MEAS. SYSTEM.... .000004" (.0001mm)
Z-AXIS:ROTARY ENCODER......... .00004" (.001mm)
A-AXIS:ROTARY ENCODER......... .0002 DEGREE
B-AXIS:ROTARY ENCODER......... .001 DEGREE

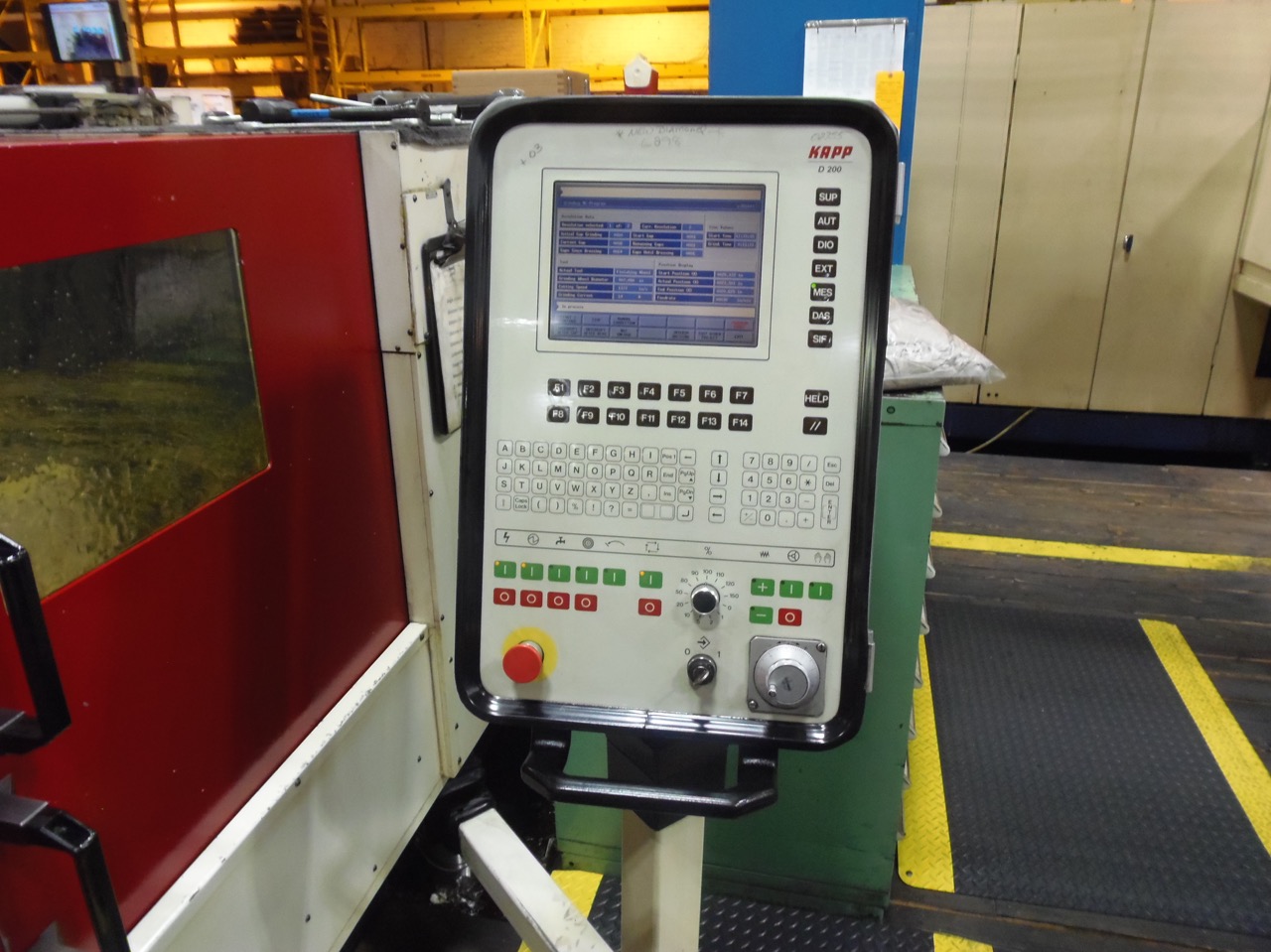

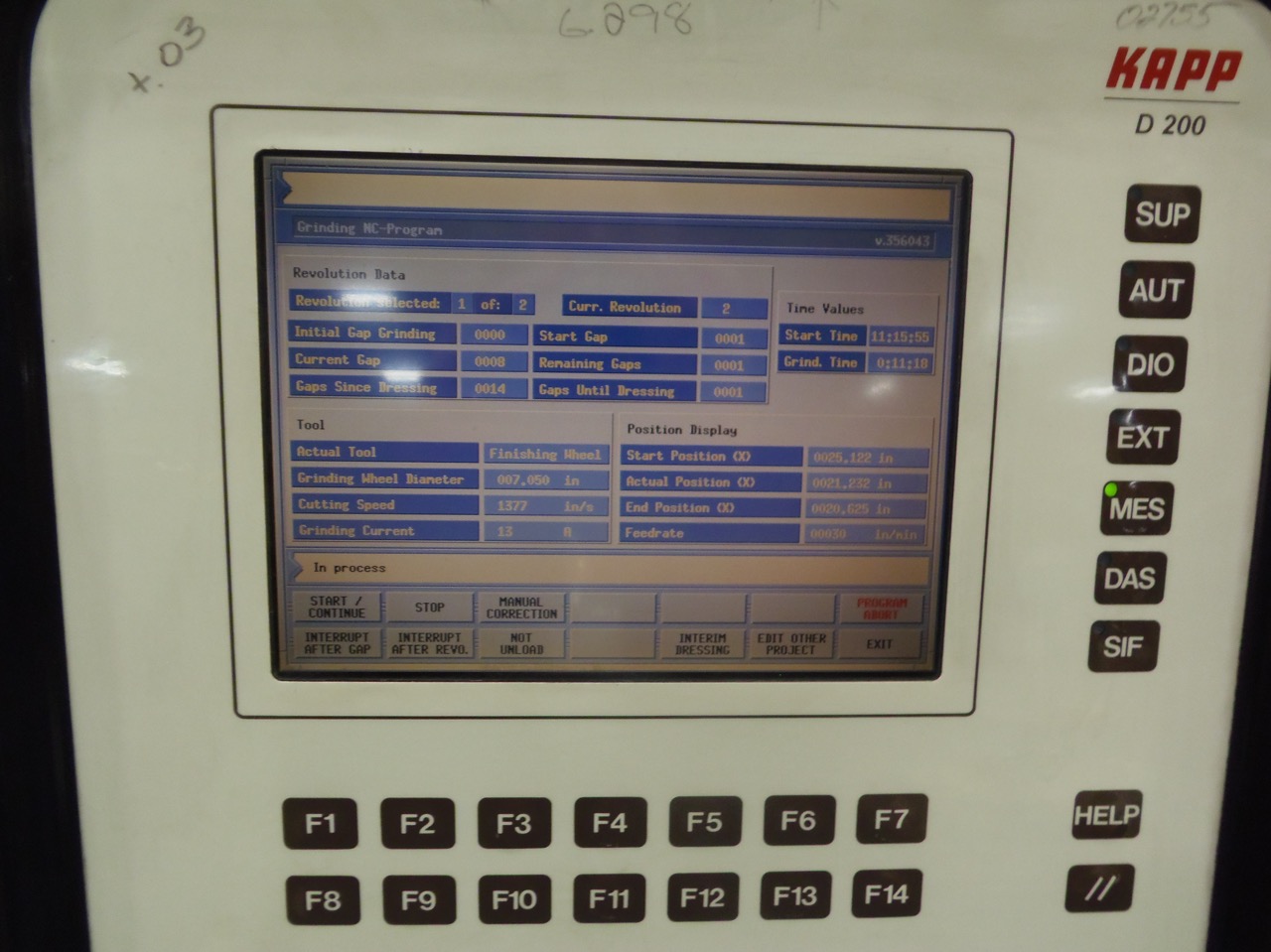

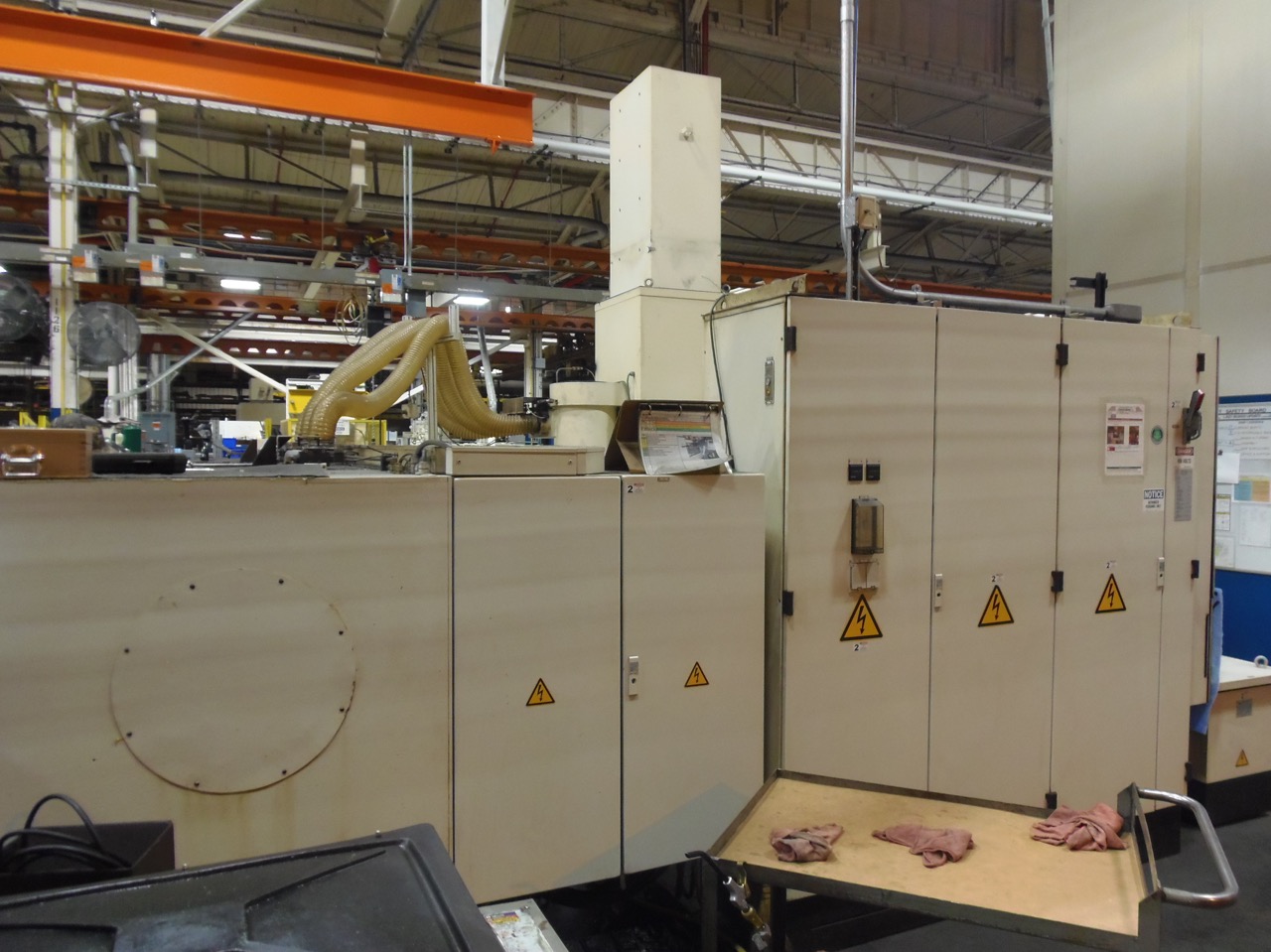

CONTROL.......................... KAPP D200
CURRENT VOLTAGE.................. 460 VOLTS
CONNECTED POWER.................. 108 KVA (68kW)
FLOOR SPACE OF TOTAL INSTALLATION
L X W X HEIGHT................ 233" X 152" X 104"
5925 X 3870 X 2650mm
NET WEIGHT OF INSTALLATION....... 23,320 LBS (10,600kg)
EQUIPPED WITH:

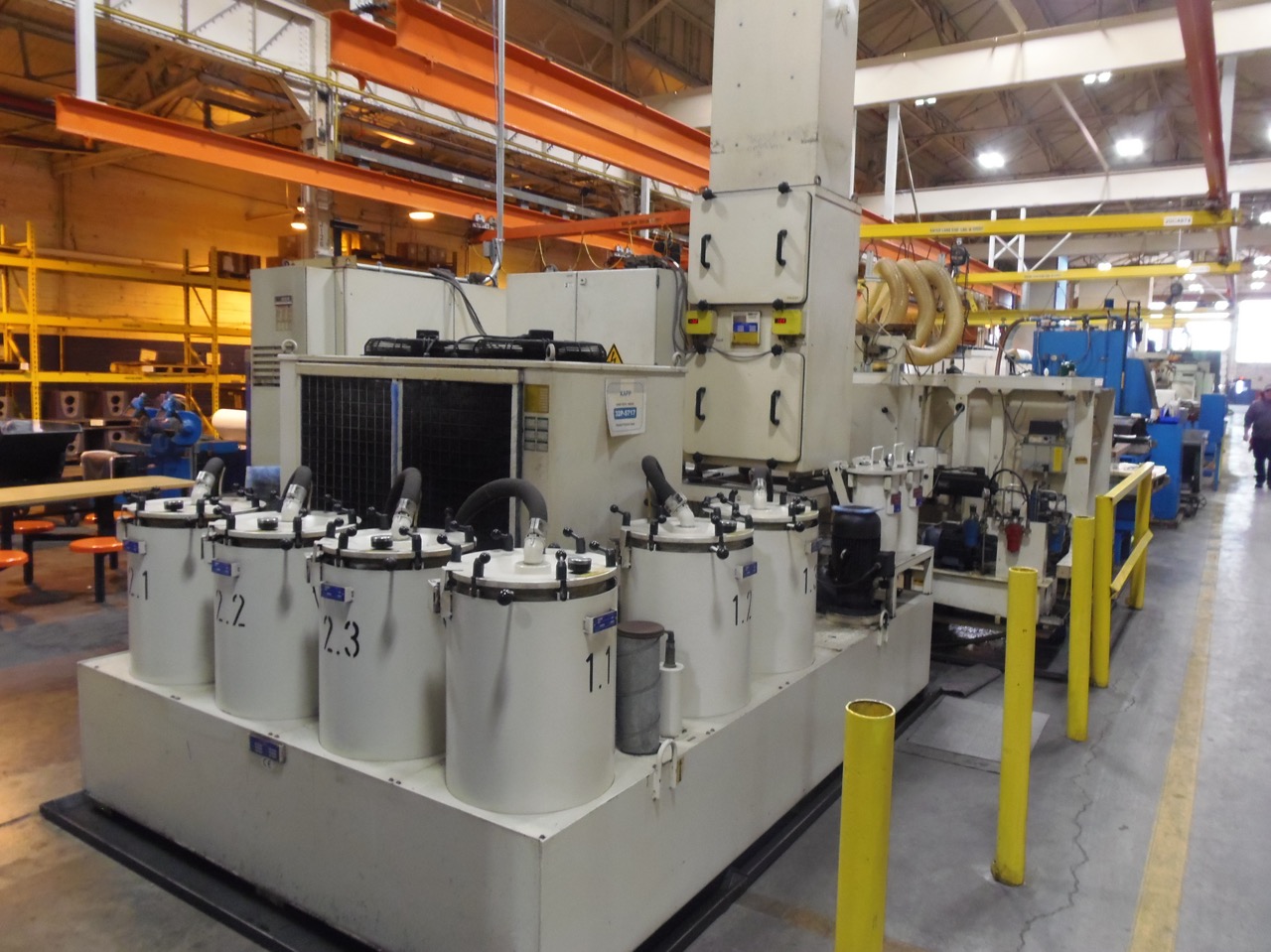

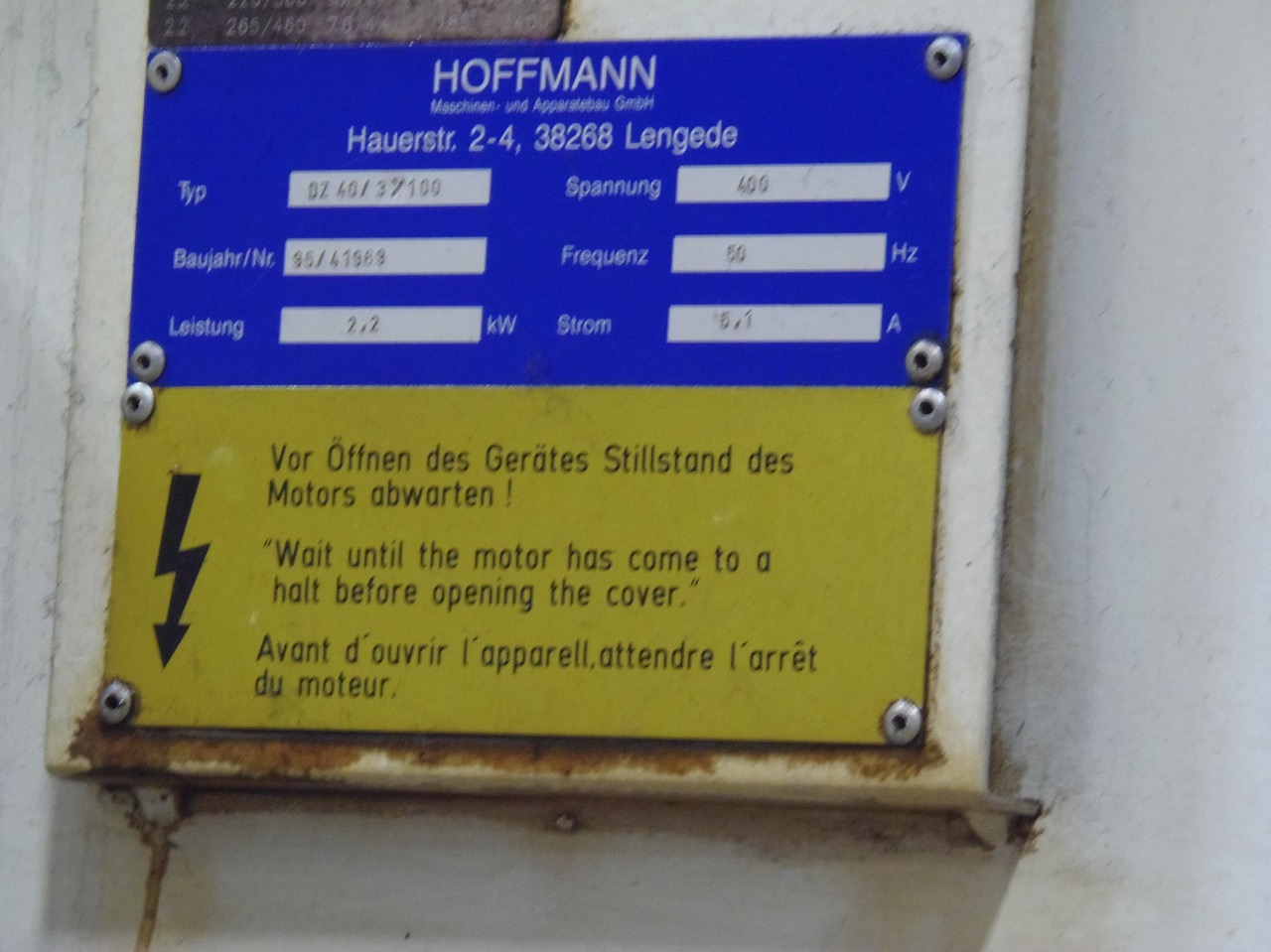

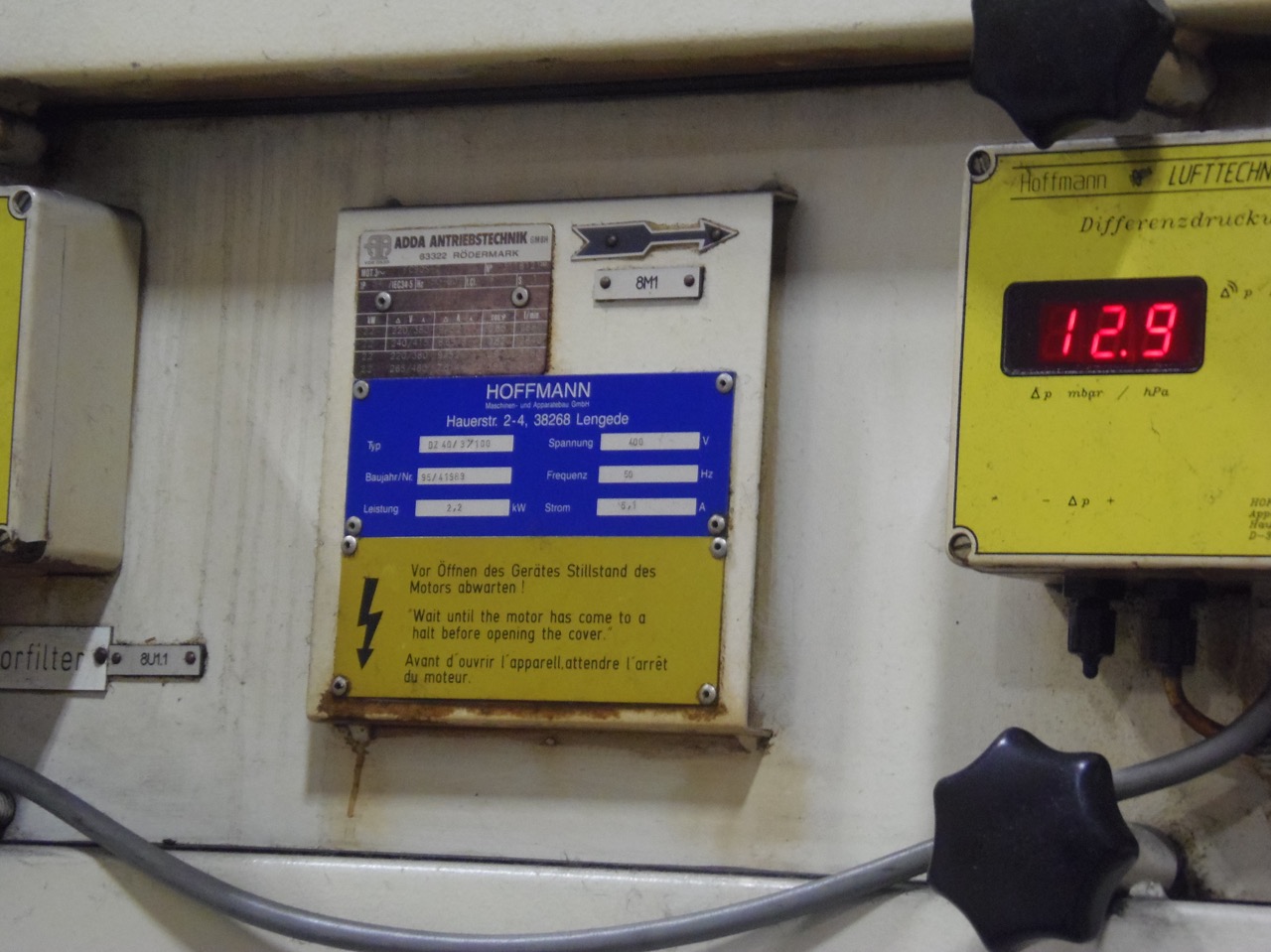

725 GALLON COOLANT SYSTEM WITH NYLON SUPPORT MESH WITH PAPER FILTRATION ELEMENT AND CHILLER
MACHINE RESCRAPPED IN 2015
