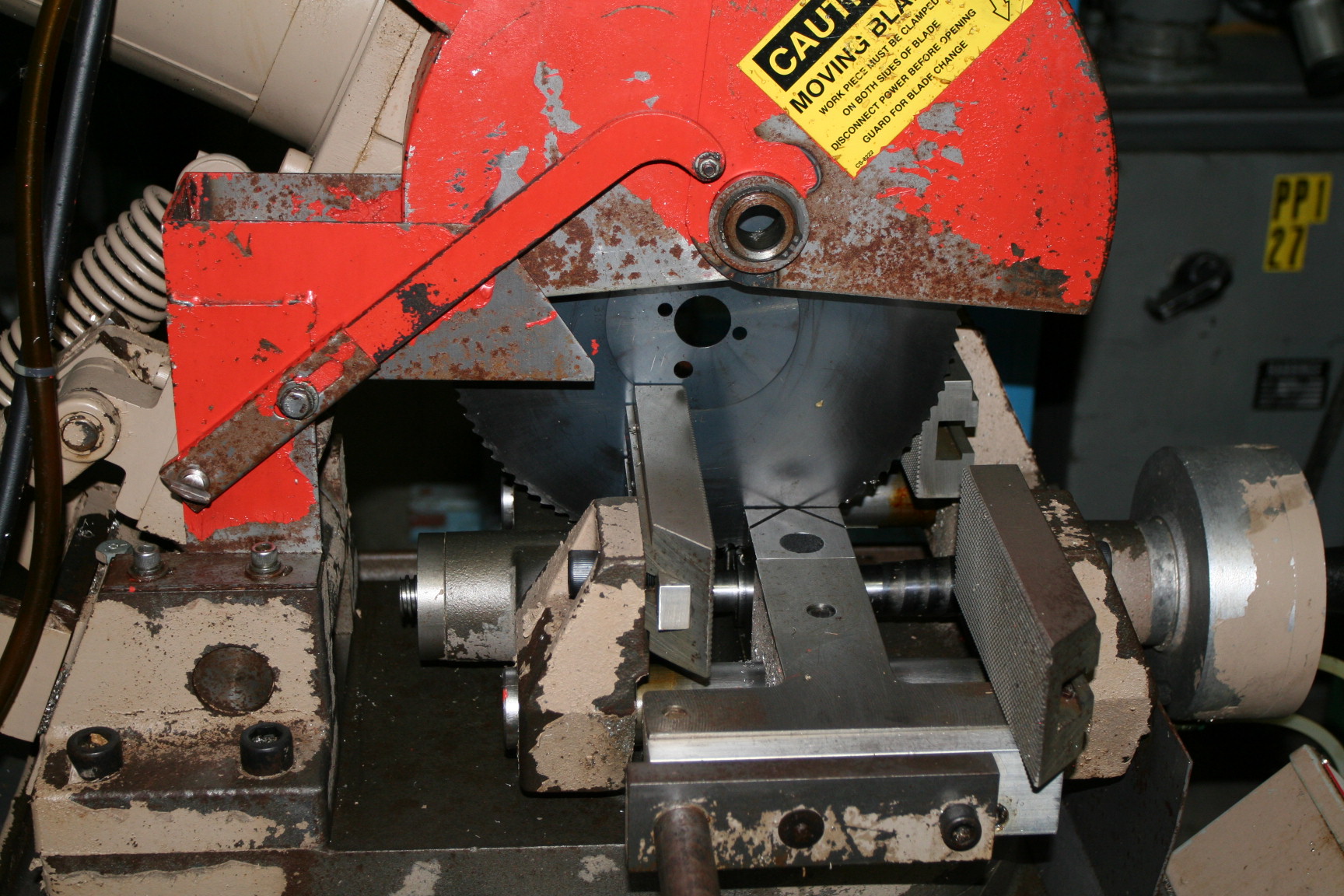

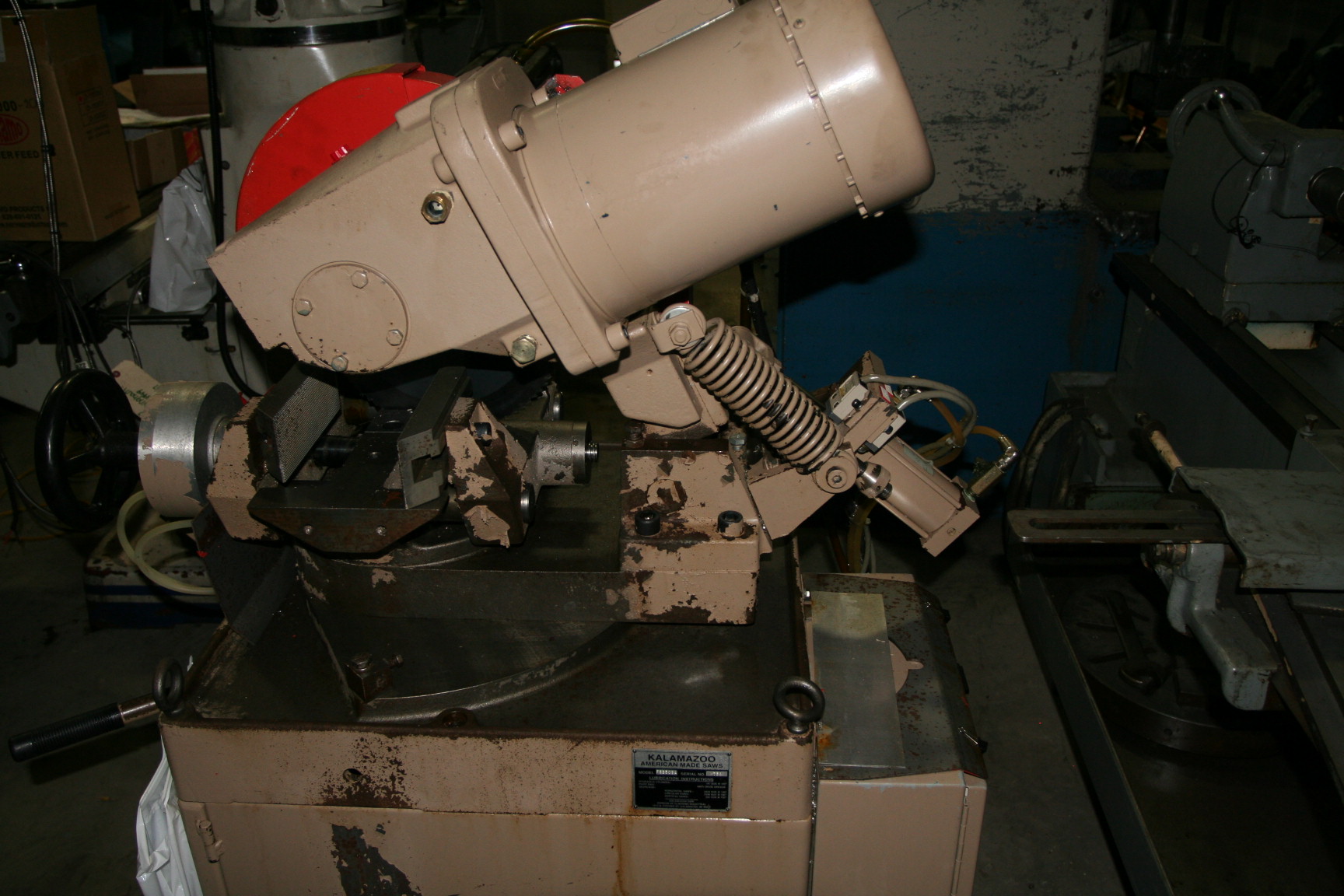

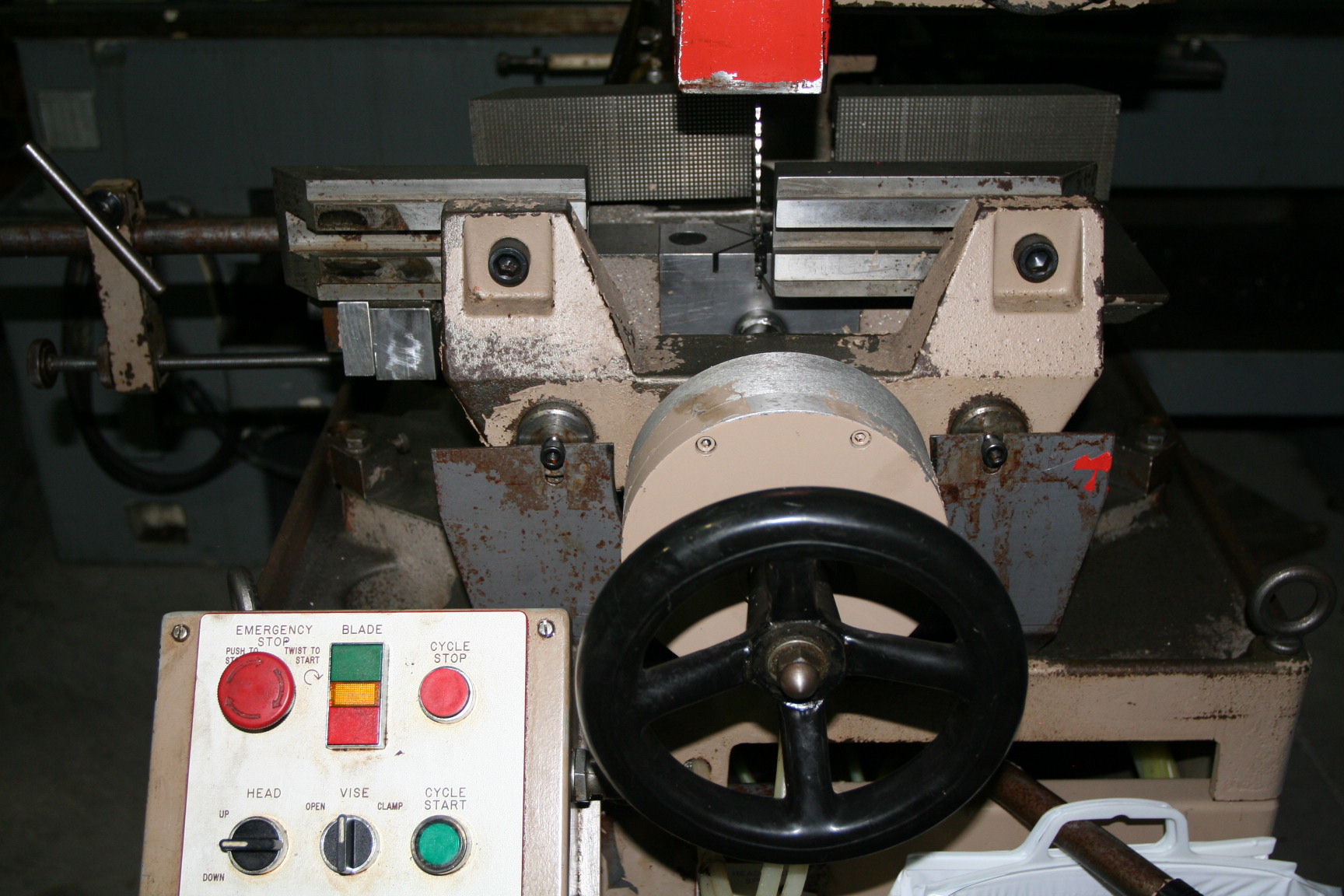

KALAMAZOO FS-350SA, SEMI AUTOMATIC, STEEL, 4.25" TUBE, 30/60 RPM, AIR VISE

GENERAL SPECIFICATIONS:

MANUFACTURER...............KALAMAZOO
MODEL......................FS-350SA
SERIAL NUMBER..............K756
BLADE SIZE.................14"
DRIVE MOTOR................3HP
ANGLES L/R.................45 DEGREE
SPINDLEV SPEED.............30 AND 60 RPM
MAX VICE OPENING...........6"
CUTTING CAP RD TUBE........4.25"

RECT. TUBE AT 90 DEGREES 5-1/2" X 3-1/4"
AT 45 DEGREES 3" X 3-1/4"
RD SOLID AT 45/90 2"
RECT SOLID AT 45/90 2" X 2"
DIMENSIONS.................40" X 50' X 60" TALL
WEIGHT.....................1305LBS

EQUIPED WITH:
THIS IS A SEMI AUTOMATIC, AIR OVER HYDRAULIC VICE AND HEAD UP AND DOWN WITH VARIABLE PRESSURE ON BOTH
YOU CAN CONTROL THE DOWN FEED, SO IF YOU WANTED TO CUT HARD OR SOFT MATERIAL, NO PROBLEM
THE MACHINE WAS DESIGNED FOR FERROUS MATERIAL
STEEL
BUT IT WILL CUT ALUMINUM AND OTHER SOFTER MATERIAL
