Specifications
Equipped With
GENERAL SPECIFICATIONS:

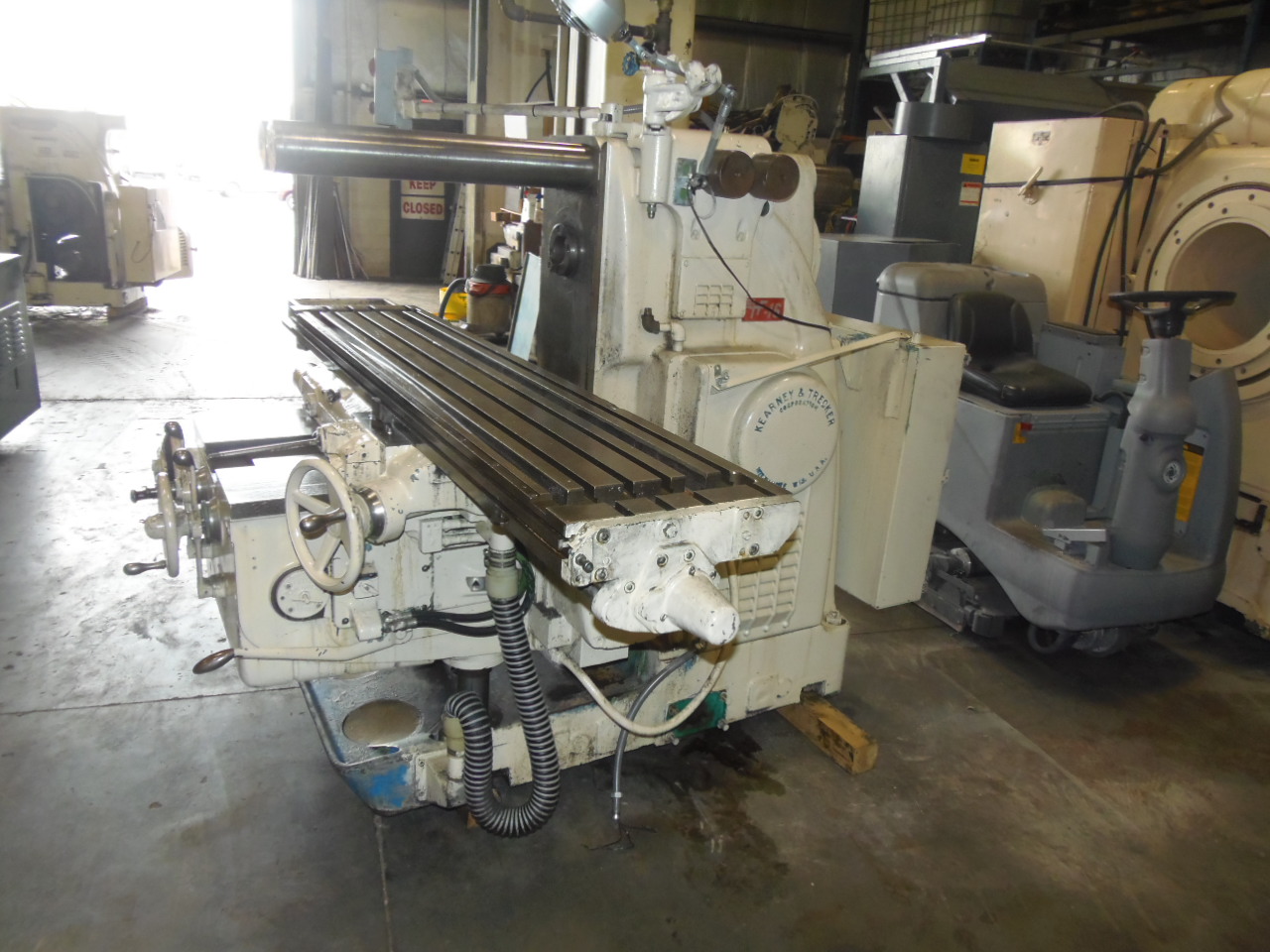

MANUFACTURER........................ KEARNEY AND TRECKER
MODEL............................... 420 TF16

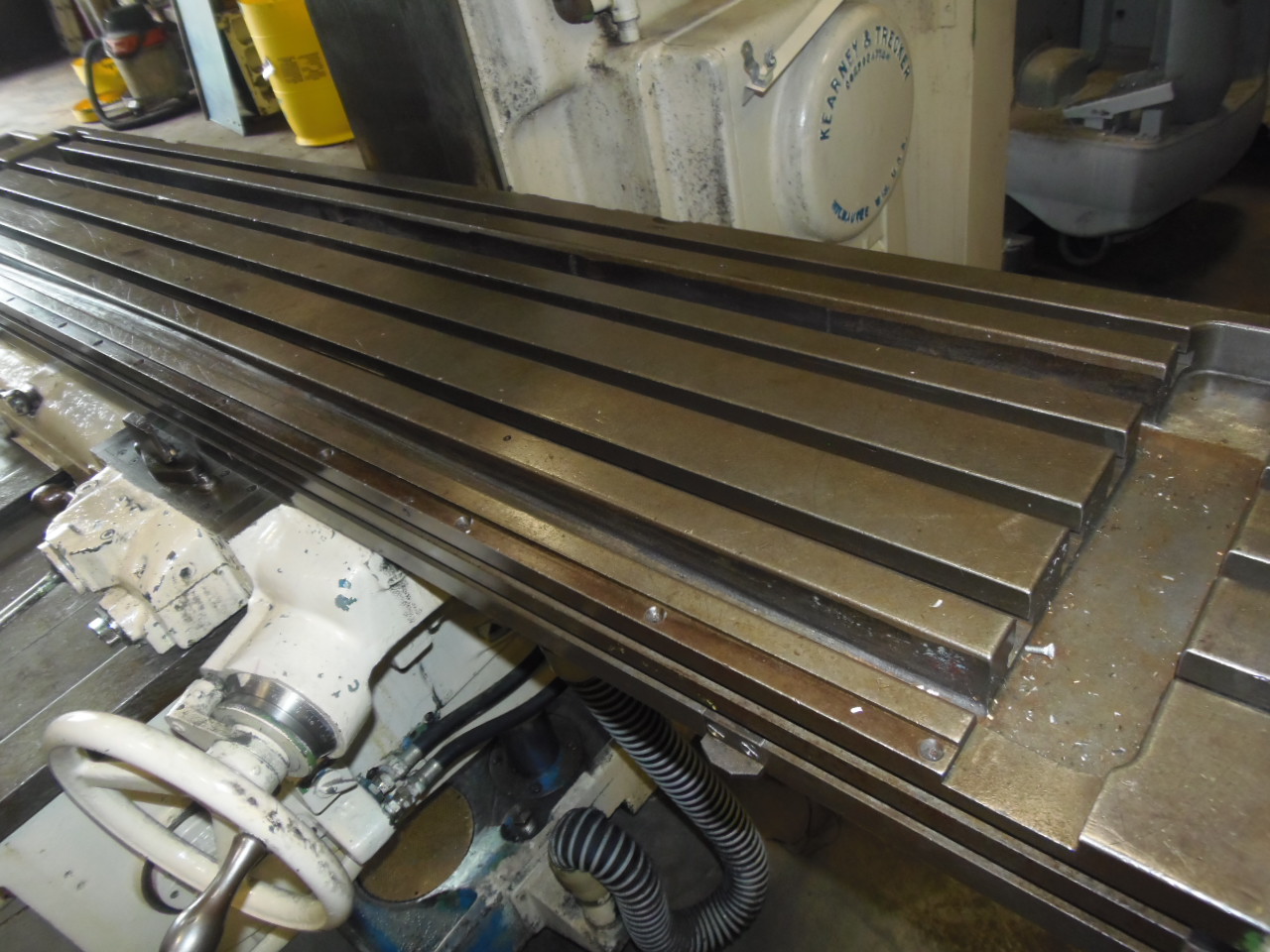

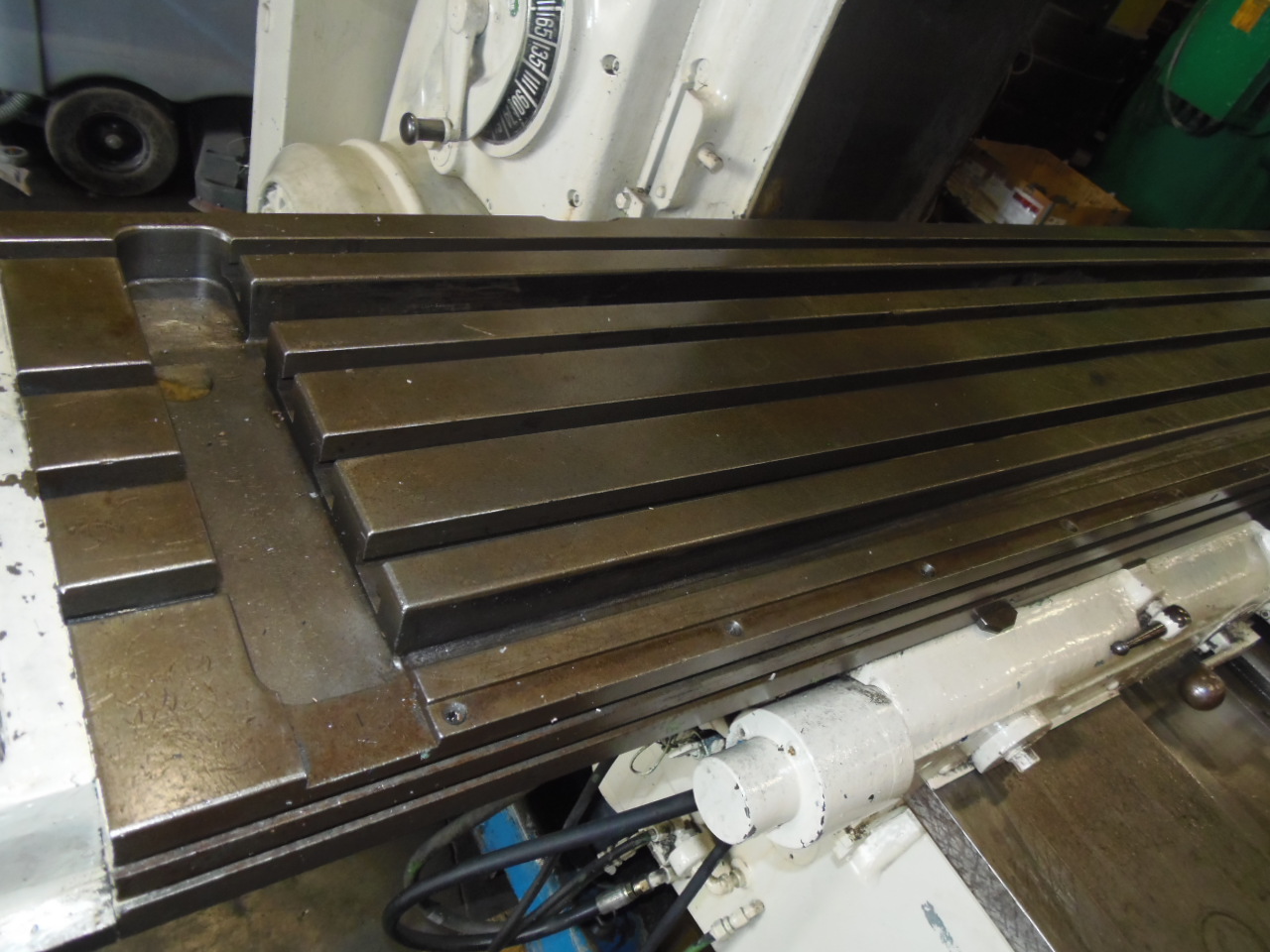

TABLE SIZE.......................... 16" X 80"

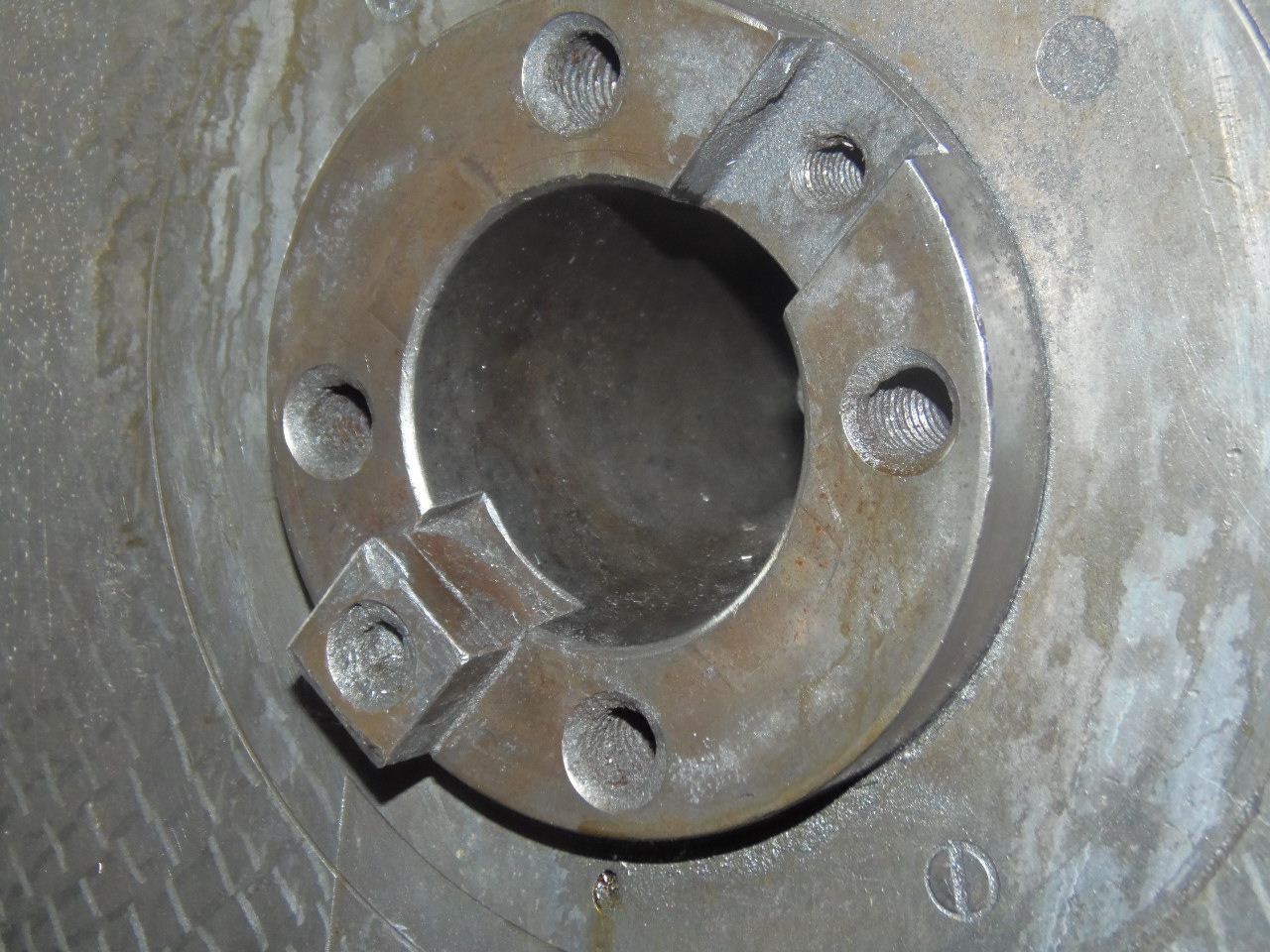

SPINDLE TAPER....................... 50
SPINDLE SPEEDS...................... (24) 15 TO 1500 RPM
LONG AND CROSS FEEDS................ (32) 3/8 TO 90 IPM
VERTICAL FEEDS...................... (32) 1/8 TO 30 IPM
TRAVELS (X)......................... 42"
(Y)......................... 14"
(KNEE)...................... 18"
RAPID TRAVERSE...................... 150 IPM
MAIN MOTOR.......................... 20 HP
WEIGHT (APPROX)..................... 9,000 LBS.
EQUIPPED WITH:
COOLANT
AUTO CYCLE
