Specifications
Equipped With
GENERAL SPECIFICATIONS:

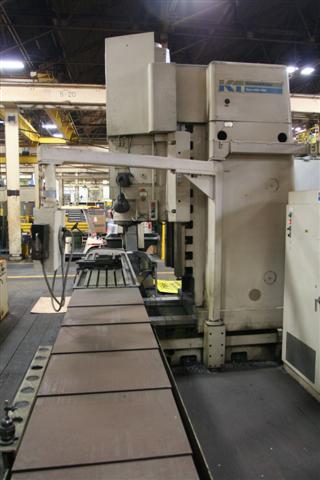

MANUFACTURER KEARNEY & TRECKER
MODEL DATA MILL 700
NEW APPROXIMATELY 1982
SERIAL 7078025

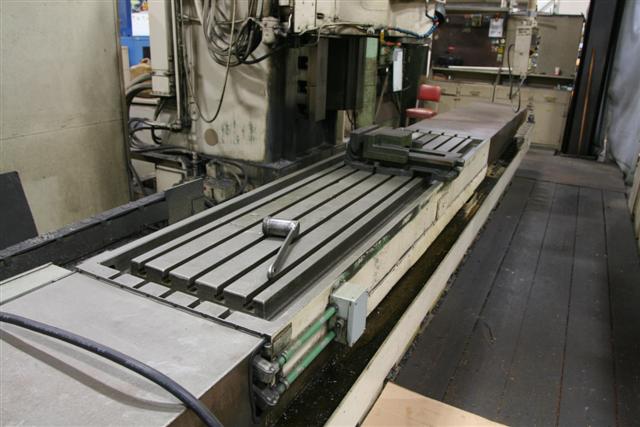

TABLE SIZE 27.56 X 118 700 MM X 3000 MM
TABLE LOAD 10,000 LBS (4545 KG)
TRAVELS
LONGITUDINAL 94.5" (2400 MM)
CROSS 19.68" (500 MM)
VERTICAL 23.62" (600 MM)
FEED RANGE (INF. VARIABLE) 0-155 IPM
0-3937 MMPM
RAPID SPEED 155 IPM (3937 MMPM)
FACE OF SPINDLE TO TOP OF TABLE MAX. 27.5" (700 MM)
MIN. 3.94" (25.4 MM)
SPINDLE:
SPINDLE NOSE NO. 50 TAPER
SPEEDS 15-2000 RPM
LOW RANGE 15-205 RPM
MID RANGE 206-639 RPM
HIGH RANGE 640 -2000 RPM
DRIVE MOTOR 30 HP
MACHINE OVERALL HEIGHT 126" (3200 MM)
EQUIPPED WITH:

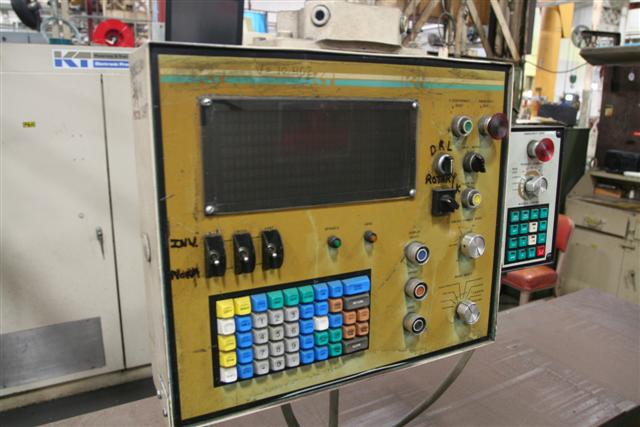

MDI CONTROL
G CODE PROGRAMMING, CANNED CYCLES, CIRCULAR/LINEAR INTERPOLATION, CUTTER & TOOL COMPENSATION, ABSOLUTE/INCREMENTAL PROGRAMMING, 3-AXIS DATA CONTROLLER, DIGITAL DISPLAY OF EACH AXIS, INCH/METRIC, SUBROUTINES, PROGRAM DISPLAY, PROGRAM SEARCH, AND FLOATING ZERO

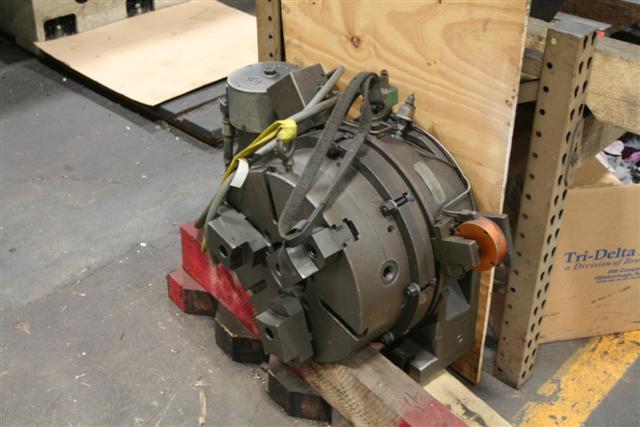

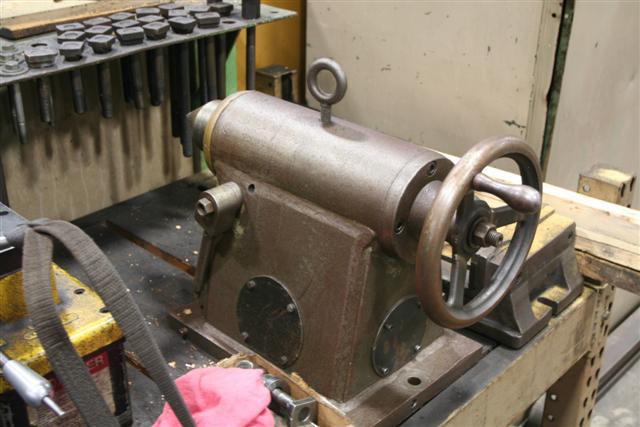

20" TROYKE U20-NC ROTARY TABLE WITH 18" 3 JAW BUCK CHUCK & TAILSTOCK. THE BUCK CHUCK HAS A 5" THRU HOLE
