Specifications
Equipped With

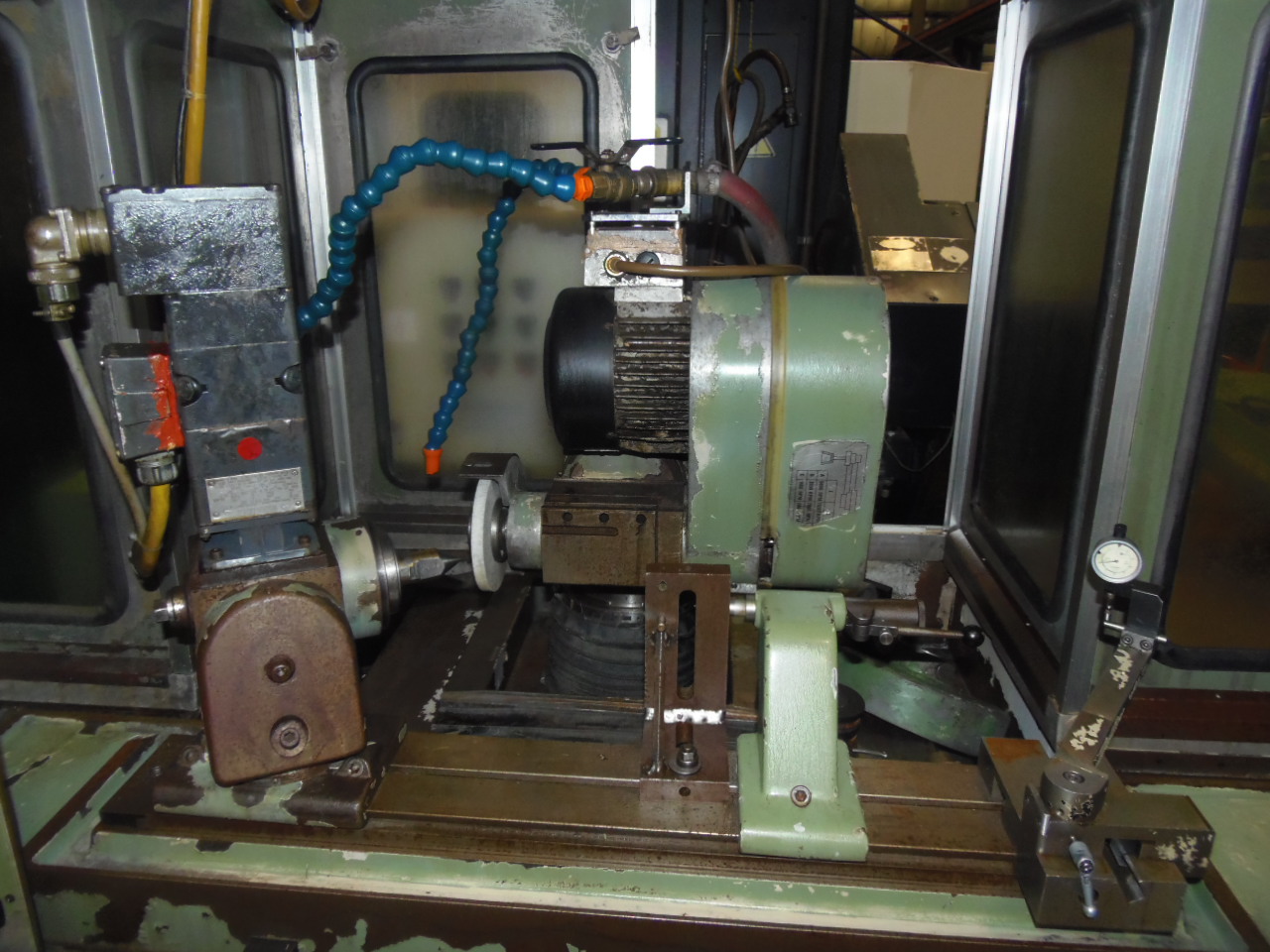

GENERAL SPECIFICATIONS
LONGITUDINAL TRAVEL............................ 17.7" (450MM)
CROSS TRAVEL................................... 11.8" (300MM)
VERTICAL TRAVEL................................ 9.8" (250MM)
FIXED VERTICAL ADJUSTMENT GIVING............... 3.9" (100MM)
A TOTAL VERTICAL MOVEMENT OF................... 13.8" (350MM)

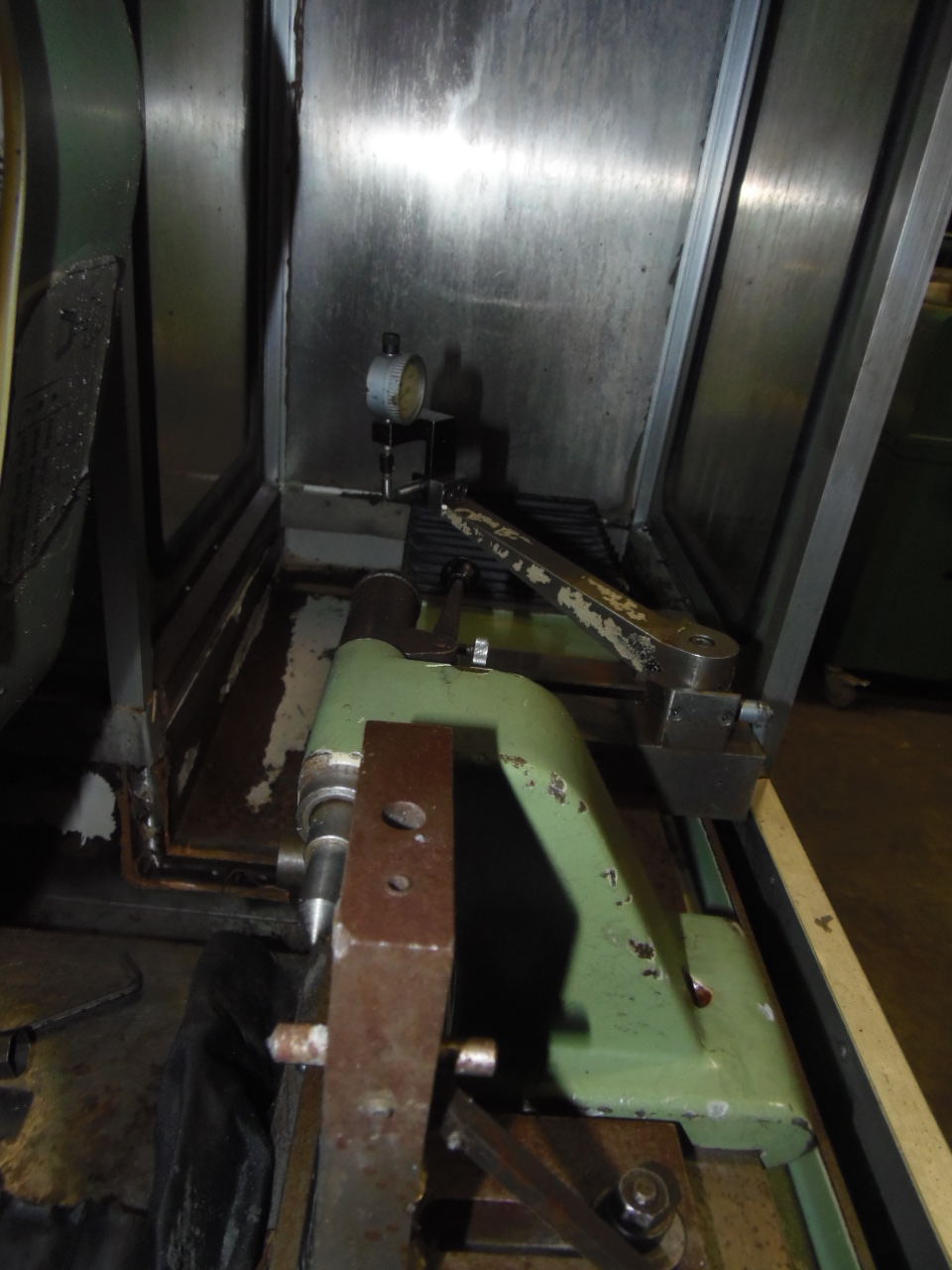

MAXIMUM CENTRE DISTANCE........................ 17.7" (450MM)
(WORKHEAD-TAILSTOCK)

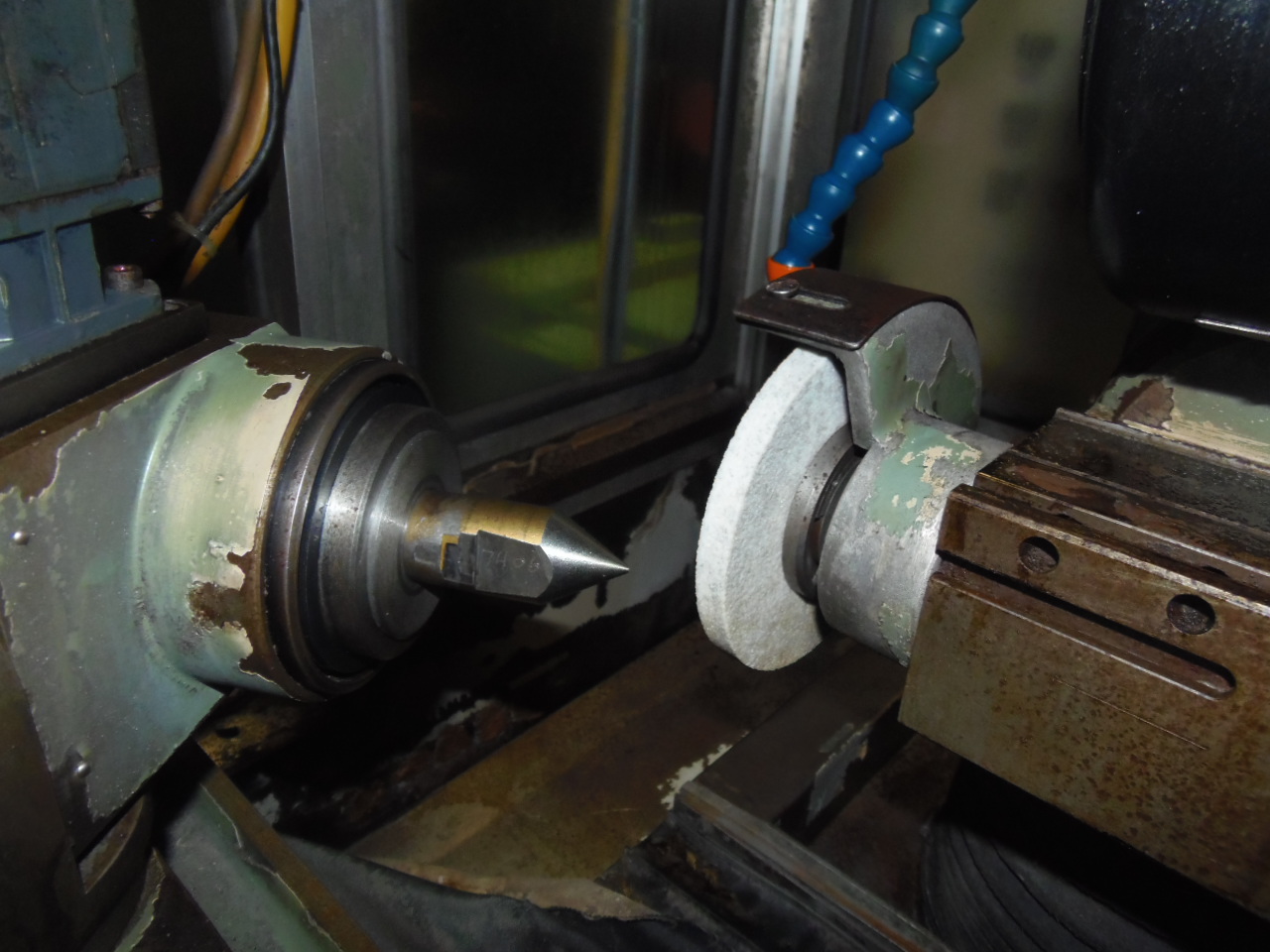

MAXIMUM GRINDING DIAMETER...................... 11.6" (260MM)
TAPER FOR WORKHEAD............................. ISO-50
GRINDING MOTOR OUTPUT.......................... 1.5 KW
GRINDING SPINDLE SPEEDS........................ 1400/2800 RPM
(EACH DIRECTION)............................... 3500/7000 RPM
5600/11200 RPM

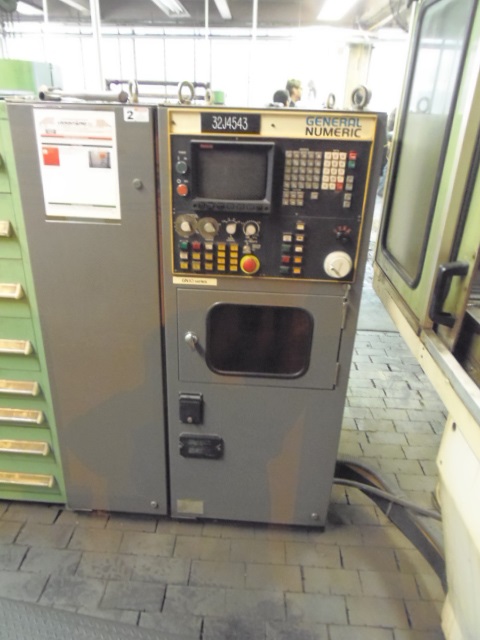

FOUR AXIS VERSION
MEASUREMENT RESOLUTION
FOR LONGITUDINAL, CROSS
AND VERTICAL TRAVEL............................ 0.00004 (0.001MM)
SMALLEST PROGRAMMABLE
DIVISION ON WORKHEAD........................... 0.001
MACHINE WIDTH INCLUDING
TABLE TRAVEL................................... 70.8" (1800MM)
DEPTH.......................................... 47.2" (1200MM)
HEIGHT TO CENTRE OF WORK
HEAD........................................... 48.0" (1220MM)
WEIGHT (WITHOUT CONTROL UNIT).................. 2.420 LBS (1100KG)
SPECIFICATIONS SUBJECT TO VERIFICATION
