Specifications
Equipped With
GENERAL SPECIFICATIONS:

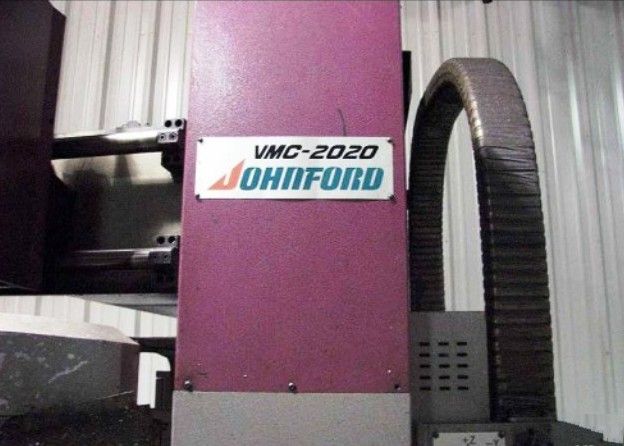

MANUFACTURER------------------------------- JOHNFORD
MODEL-------------------------------------- VMC2020
AGE---------------------------------------- 1994
SERIAL NUMBER------------------------------ DO9405054
TABLE WORKING SURFACE --------------------- 34" X 82.9"
TABLE TRAVEL ----- ( X ) ------------------ 80.7"
CROSS TRAVEL ----- ( Y ) ------------------ 35.4"
VERTICAL TRAVEL -- ( Z ) ------------------ 28"
TABLE TO SPINDLE -------------------------- 6.1" MIN./34" MAX
MAXIMUM WORKLOAD ON TABLE ----------------- 4,400 LBS.
SPNDLE TAPER ------------------------------ BT-50
SPINDLE SPEEDS ---------------------------- 10 TO 3600 RPM
AUTOMATIC TOOL CHANGER CAPACITY ----------- 20
RAPID TRAVERSE --- ( X, Y ) --------------- 472 IPM
RAPID TRAVERSE --- ( Z ) ------------------ 393 IPM
MAIN DRIVE MOTOR, 30 MIN.RATING ----------- 20 HP A.C.
APPROXIMATE MACHINE WEIGHT ---------------- 35,200 LBS
APPROXIMATE MACHINE DIMENSIONS ------------ 209"(LR) X 183"(FB) X 130"(H)
EQUIPPED WITH:

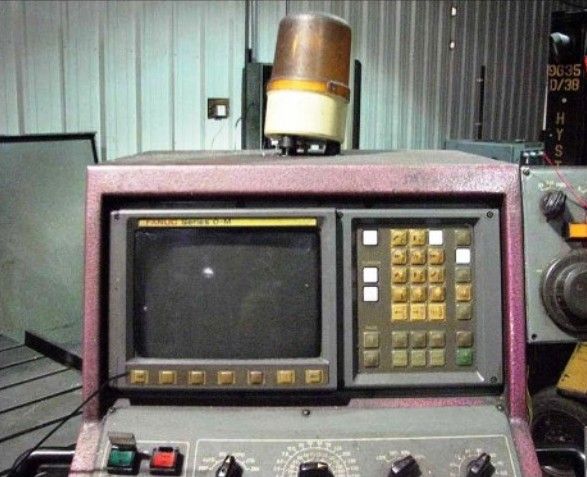

FANUC OM CNC CONTROL
FLOOD COOLANT SYSTEM
BOX WAYS
2-SPEED GEAR BOX
AUTO LUBRICATION
COOLANT SYSTEM TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
